Outdoor Walled Mounted or Pole Mounted Power System Cabinet, Telecom Cabinet, IP55

I'm Online Chat Now

Outdoor Walled Mounted or Pole Mounted Power System Cabinet, Telecom Cabinet, IP55

China Outdoor Walled Mounted or Pole Mounted Power System Cabinet, Telecom Cabinet, IP55 supplier
Outdoor Walled Mounted or Pole Mounted Power System Cabinet, Telecom Cabinet, IP55 supplier Outdoor Walled Mounted or Pole Mounted Power System Cabinet, Telecom Cabinet, IP55 supplier Outdoor Walled Mounted or Pole Mounted Power System Cabinet, Telecom Cabinet, IP55 supplier Outdoor Walled Mounted or Pole Mounted Power System Cabinet, Telecom Cabinet, IP55 supplier Outdoor Walled Mounted or Pole Mounted Power System Cabinet, Telecom Cabinet, IP55 supplier Outdoor Walled Mounted or Pole Mounted Power System Cabinet, Telecom Cabinet, IP55 supplier

Large Image :  Outdoor Walled Mounted or Pole Mounted Power System Cabinet, Telecom Cabinet, IP55

Product Details:

Place of Origin: China
Brand Name: ESTEL
Model Number: DDTE037

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: wooden case
Delivery Time: 20 days
Payment Terms: T/T, L/C
Supply Ability: 10000 sets per month
Contact Now
Detailed Product Description

DDTE037 Outdoor Walled Mounted or Pole Mounted Power System Cabinet



Outdoor Walled Mounted or Pole Mounted Power System Cabinet, Telecom Cabinet, IP55

1.Application


The DDTE037 Outdoor Integrated Walled Mounted Power System Cabinet is widely used in wireless communication base station, such as 3G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.



2.Structure



The cabinet is made of hot dip galvanized steel. It is easy for installation and with perfect sealing performance.

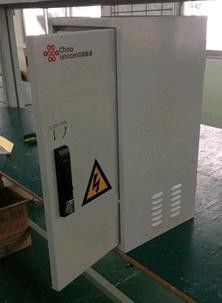

Outdoor Walled Mounted or Pole Mounted Power System Cabinet, Telecom Cabinet, IP55

Compartment: The DDTE037 Outdoor Integrated Walled Mounted Power System Cabinet is with one compartment and one front door. The lock is theftproof lock.

Door and Door Lock: The cabinet door uses embedded structure. The door opening angle is larger than 110° and the door limit device can limit the opening angle. The lock is theftproof three point lock, supports padlock. There’s open door alarm sensor, which works together with the environment monitoring unit.

Cabinet Size : 300mm×300mm×600mm (W×D×H)



3.Cooling Solution



Use fans for cooling.

Outdoor Walled Mounted or Pole Mounted Power System Cabinet, Telecom Cabinet, IP55

4.Features


4.1 Ventilation and Filter



(1)At the air inlet of the vent, it is welded with 1mm thick and 16 mesh stainless steel mesh, preventing insects and rodent. At the inner side of the vent, it is 10mm thick and 30ppi dust filter. The filter mesh is folded together with the fold type support mesh, and the filter is fixed inside the aluminum frame. The whole dust filter is with modular design, easy for maintenance.


(2)It is anti-corrosion and water proof, and with the function of preventing rain from flowing into the structure for the second time. There are shutter which has 35° angle with the cabinet vertical surface. Rain water will flow along the shutter. In addition, the structure design at the vent can prevent rain for the second time.

Outdoor Walled Mounted or Pole Mounted Power System Cabinet, Telecom Cabinet, IP55



4.2 Grounding



The cabinet include grounding copper bar, 4mm thick, with 2×M6 flare-in nuts, 2×M8 flare-in nuts. The grounding bar is nickel plated. The screw is made from copper bar and with passivation surface treatment.



4.3  Theft Proof Design



(1)Theft proof lock

Outdoor Walled Mounted or Pole Mounted Power System Cabinet, Telecom Cabinet, IP55

(2)Three point lock

Outdoor Walled Mounted or Pole Mounted Power System Cabinet, Telecom Cabinet, IP55

4.4 Appearance and Surface Treatment

Outdoor powder coat, with gray color. The coat is anti-shock, anti-aging, anti-solvent, anti-low temperature.


5.Installation

(1)Wall Installation:

Outdoor Walled Mounted or Pole Mounted Power System Cabinet, Telecom Cabinet, IP55

(2) Pole Installation:





Outdoor Walled Mounted or Pole Mounted Power System Cabinet, Telecom Cabinet, IP55

Outdoor Walled Mounted or Pole Mounted Power System Cabinet, Telecom Cabinet, IP55
