Custom Metal Wall mount Waterproof Outdoor Telecom Cabinet Outdoor Enclosure With Cooling

China Custom Metal Wall mount Waterproof Outdoor Telecom Cabinet Outdoor Enclosure With Cooling supplier
Custom Metal Wall mount Waterproof Outdoor Telecom Cabinet Outdoor Enclosure With Cooling supplier Custom Metal Wall mount Waterproof Outdoor Telecom Cabinet Outdoor Enclosure With Cooling supplier Custom Metal Wall mount Waterproof Outdoor Telecom Cabinet Outdoor Enclosure With Cooling supplier Custom Metal Wall mount Waterproof Outdoor Telecom Cabinet Outdoor Enclosure With Cooling supplier Custom Metal Wall mount Waterproof Outdoor Telecom Cabinet Outdoor Enclosure With Cooling supplier Custom Metal Wall mount Waterproof Outdoor Telecom Cabinet Outdoor Enclosure With Cooling supplier

Large Image :  Custom Metal Wall mount Waterproof Outdoor Telecom Cabinet Outdoor Enclosure With Cooling

Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001:2008
Model Number: ET604072W

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden Case
Delivery Time: 15~20 Days
Payment Terms: T/T,L/C
Supply Ability: 60000 Sets Per Year
Contact Now
Detailed Product Description
Material: SPCC Cold Rolled Steel Color: Grey (support Custom Made)
External Dimension: W×D×H 600x400x720mm Structure: Single Wall
Protection Level: IP55 Cable Entry: At Cabinet Bottom
Cooling: Fan

Custom Wall mount Waterproof Outdoor Telecom Cabinet Outdoor Enclosure







Specifications



Outdoor telecom cabinet with wall-mount version or pole mount version, enable protectting your valuable and sensitive equipment with its unique design. It is well protected against rain, snow, wind, sun radiation and earthquakes. With its perfect resistance to corrosion, protects your technological investments against environment effects.



The front door is configured with 3-point locking system to keep your equipment safety,

The fan is installed on the top.



When you have a project of needs at hand, you need to consider below items before you find the suitable one:

  • IP rating: IP45, IP55, IP65
  • What kind of material you perfected: SPCC, galvanized steel, stainless steel or aluminum?
  • What is the equipment usage space want?
  • Cooling options you can need: ventilation fan, heat exchaner unit or air conditioner unit?
  • Optional accessories: EMS, PDU, power system, battery, etc



Model ET604072W
Color RAL7035 GREY
IP Rating IP55
IP Code Standard IEC60529
Mounting Option Wall-Mount or Pole-Mount
Cooling Option 2 FANS
Dimensions 600x400x720(19”, 15U)
Material SPCC Cold Rolled Steel
Rack Mount Hole Type M6 Square Hole
Packing Assembly Pack
Custom Design Yes
Sample Lead Time 10-15 Days
Form of sale OEM,ODM
Certificate CE/RoHS
Market North America,South America,Europe,Australia,New Zealand, South East,South Africa,India,Russia,Mexico
Advantage Broad line of outdoor cabinets and enclosures; Designed for harsh outdoor environments,Wind driven rain resistant,Temperature hardened;Protection against corrosion;19" Mounting rails front and rear;
Warranty 1 Year





Feature



(1) Compact design is ideal for small sites

(2) Two pairs of mounting rails, adjustable from front to back

(3) Welded, unitized construction for durability

(4) Easy pole or wall mount assembly options

(5) Securely protect your equipment by locking doors

(6) Cable management rings included







Diagram

Custom Metal Wall mount Waterproof Outdoor Telecom Cabinet Outdoor Enclosure With Cooling



Other size options:



H W D Description
6U 24 in. 16 in. 6U 16-inch Deep OUTDOOR Wall Mount Cabinet, IP55 Rated|Grey, Metal Front Door
9U 24 in. 16 in. 9U 16-inch Deep OUTDOOR Wall Mount Cabinet, IP55 Rated|Grey, Metal Front Door
12U 24 in. 16 in. 12U 16-inch Deep OUTDOOR Wall Mount Cabinet, IP55 Rated|Grey, Metal Front Door
15U 24 in. 16 in. 15U 16-inch Deep OUTDOOR Wall Mount Cabinet, IP55 Rated|Grey, Metal Front Door
18U 24 in. 16 in. 18U 16-inch Deep OUTDOOR Wall Mount Cabinet, IP55 Rated|Grey, Metal Front Door
6U 24 in. 24 in. 6U 24-inch Deep OUTDOOR Wall Mount Cabinet, IP55 Rated|Grey, Metal Front Door
9U 24 in. 24 in. 9U 24-inch Deep OUTDOOR Wall Mount Cabinet, IP55 Rated|Grey, Metal Front Door
12U 24 in. 24 in. 12U 24-inch Deep OUTDOOR Wall Mount Cabinet, IP55 Rated|Grey, Metal Front Door
15U 24 in. 24 in. 15U 24-inch Deep OUTDOOR Wall Mount Cabinet, IP55 Rated|Grey, Metal Front Door
18U 24 in. 24 in. 18U 24-inch Deep OUTDOOR Wall Mount Cabinet, IP55 Rated|Grey, Metal Front Door

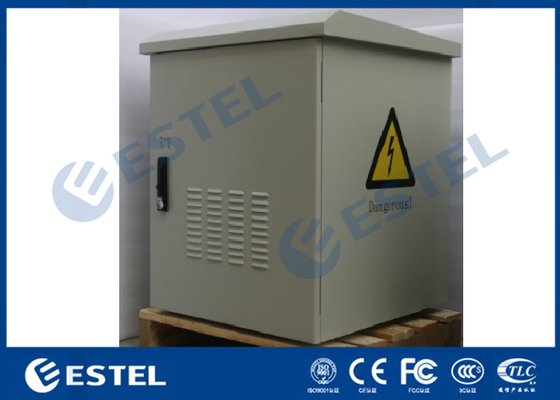

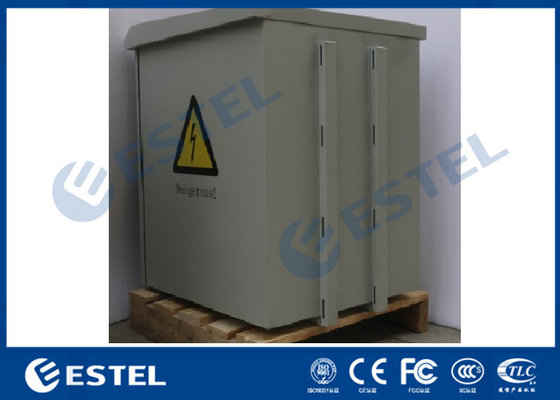

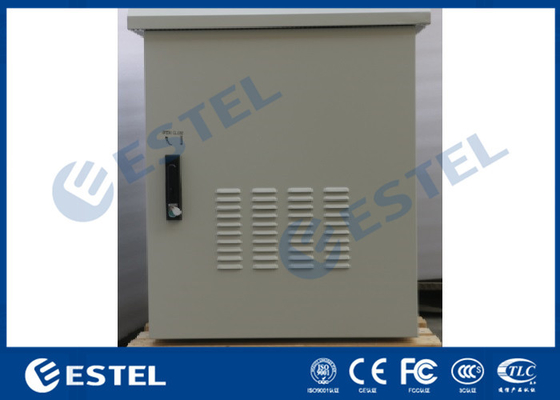

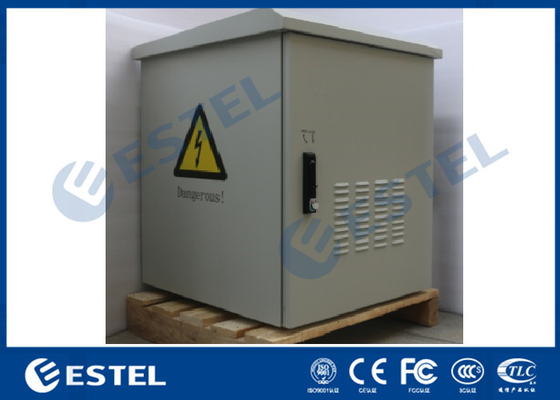

Pictures



Custom Metal Wall mount Waterproof Outdoor Telecom Cabinet Outdoor Enclosure With Cooling

Custom Metal Wall mount Waterproof Outdoor Telecom Cabinet Outdoor Enclosure With Cooling
