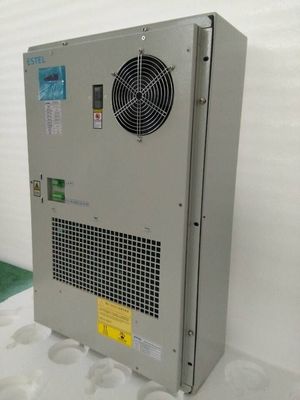

TC06-200JFH/01(KT034),2000W AC220V Compressor Air Conditioner,For Outdoor Telecom Cabinet

TC06-200JFH/01(KT034),2000W AC220V Compressor Air Conditioner,For Outdoor Telecom Cabinet

China TC06-200JFH/01(KT034),2000W AC220V Compressor Air Conditioner,For Outdoor Telecom Cabinet supplier

Large Image :  TC06-200JFH/01(KT034),2000W AC220V Compressor Air Conditioner,For Outdoor Telecom Cabinet

Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001:2008
Model Number: TC06-200JFH/01(KT034)

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden Case
Delivery Time: 10-15days
Payment Terms: T/T
Supply Ability: 80000 Sets Per Year
Detailed Product Description



AC220V 2000W Air Conditioner

Model: TC06-200JFH/01(KT034)

Foreword
The manual mainly includes TC06-200JFH/01(KT034) air conditioner’s application, technical parameters, operation instruction, product installation and maintenance, etc.

Note:
The manual only apply to TC06-200JFH/01(KT034) air conditioner. Our company reserves the right of final explanation of the content of this manual.

Any operation on this product must be performed by professional engineering and technical personnel.
Introduction

1. Introduction And Application Scope
TC06-200JFH/01(KT034) Air Conditioner is a full automation temperature control product. It uses intelligent controller to control the whole system of the air conditioner. According to the variation of environment temperature, the intelligent controller can automatically detect, operate and record the whole system’s operating time, power consumption, event and historical data. It can store 100 event records and 1280 historical data records, and can enquire 256 days’ daily record information. The product is widely applied in telecom cabinet, small and medium sized telecom room, UPS room, outdoor base station room, etc.

2. Features
(1)Strong adaptability
(2)High intelligence
(3)High precision
(4)High reliability
(5)Low noise
(6)Low energy consumption
(7)With 4 way switching value detection
(8)With 1 way room air conditioner control
(9)Voltage input range: 220VAC±15%  50/60Hz
(10)With dry contact alarm output

3.System Principle Diagram

TC06-200JFH/01(KT034),2000W AC220V Compressor Air Conditioner,For Outdoor Telecom Cabinet
Diagram 1: System Principle Diagram

4.Standard Compliance



Standard

Description

GB/T 17626.7-1998

Electromagnetic compatibility

GB4706.1

Safety of household appliance and electrical appliance with similar use.

GB4798.1

Environmental conditions existing in the application

for electric and electronic products - storage

GB4798.2

Environmental conditions existing in the application

for electric and electronic products - transportation

GB4798.3

Environmental conditions existing in the application

for electric and electronic products - usage



5.Technical Parameters



Environmental Performance

working environmental temperature

-20°C ~ 55°C

storage temperature

-40°C ~ 70°C

working humidity

≤95%

Thermal Performance

rated cooling capacity

2200W(L35 L35)

2000W(L25 L35)

heating input power

300/500W (optional)



Electrical Performance

rated input current

3.0A(L35 L35)

2.8A(L25 L35)

rated input power

660W(L35 L35)

616W(L25 L35)

input voltage

AC220V

(185V~264V)

Refrigerant

R22

Noise

≤65dB

Reliability

MTBF

70000h











































TC06-200JFH/01(KT034),2000W AC220V Compressor Air Conditioner,For Outdoor Telecom Cabinet


6. Electrical Wiring Diagram





TC06-200JFH/01(KT034),2000W AC220V Compressor Air Conditioner,For Outdoor Telecom Cabinet

Wiring Ports:

L  N  PE : power supply port (voltage input: 220VAC±25% 50/60Hz)
A+  B-  SGND : RS485 communication port
AL1  AL2: general alarm output port
F+  F- : straight ventilation output port
N : not connected pin



7. Wiring Diagram

TC06-200JFH/01(KT034),2000W AC220V Compressor Air Conditioner,For Outdoor Telecom Cabinet

Diagram 4: Wiring Diagram
