TC06-150JFH/B, 1500W AC220V 60HZ High Cooling Capacity Compressor Panel Air Conditioner

China TC06-150JFH/B, 1500W AC220V 60HZ High Cooling Capacity Compressor Panel Air Conditioner supplier
TC06-150JFH/B, 1500W AC220V 60HZ High Cooling Capacity Compressor Panel Air Conditioner supplier TC06-150JFH/B, 1500W AC220V 60HZ High Cooling Capacity Compressor Panel Air Conditioner supplier TC06-150JFH/B, 1500W AC220V 60HZ High Cooling Capacity Compressor Panel Air Conditioner supplier

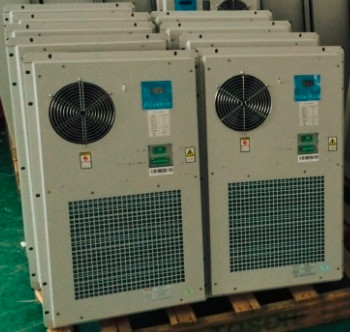

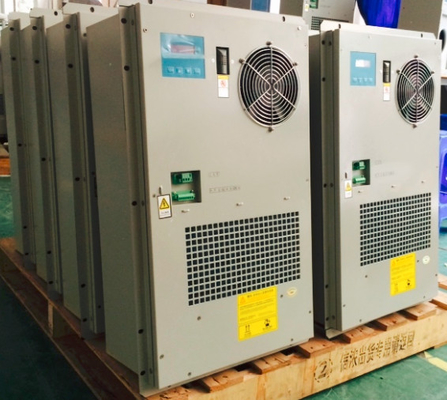

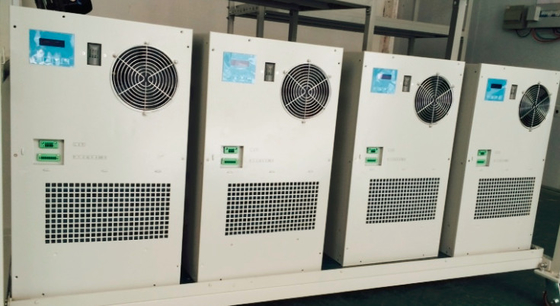

Large Image :  TC06-150JFH/B, 1500W AC220V 60HZ High Cooling Capacity Compressor Panel Air Conditioner

Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001:2008
Model Number: TC06-150JFH/B(60HZ)

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden Case
Delivery Time: 10~15 Days
Payment Terms: T/T
Supply Ability: 80000 Sets Per Year
Contact Now
Detailed Product Description



AC220V 1500W Air Conditioner

Model: TC06-150JFH/B

Foreword
The manual mainly includes TC06-150JFH/B air conditioner’s application, technical parameters, operation instruction, product installation and maintenance, etc.

Note:
The manual only apply to TC06-150JFH/B air conditioner. Our company reserves the right of final explanation of the content of this manual.

Any operation on this product must be performed by professional engineering and technical personnel.
Introduction

1. Introduction And Application Scope
TC06-150JFH/B Air Conditioner is a full automation temperature control product. It uses intelligent controller to control the whole system of the air conditioner. According to the variation of environment temperature, the intelligent controller can automatically detect, operate and record the whole system’s operating time, power consumption, event and historical data. It can store 100 event records and 1280 historical data records, and can enquire 256 days’ daily record information. The product is widely applied in telecom cabinet, small and medium sized telecom room, UPS room, outdoor base station room, etc.

2. Features
(1)Strong adaptability
(2)High intelligence
(3)High precision
(4)High reliability
(5)Low noise
(6)Low energy consumption
(7)With 4 way switching value detection
(8)With 1 way room air conditioner control
(9)Voltage input range: 220VAC±15%  60Hz
(10)With dry contact alarm output

3.System Principle Diagram

TC06-150JFH/B, 1500W AC220V 60HZ High Cooling Capacity Compressor Panel Air Conditioner
Diagram 1: System Principle Diagram

4.Standard Compliance



Standard

Description

GB/T 17626.7-1998

Electromagnetic compatibility

GB4706.1

Safety of household appliance and electrical appliance with similar use.

GB4798.1

Environmental conditions existing in the application

for electric and electronic products - storage

GB4798.2

Environmental conditions existing in the application

for electric and electronic products - transportation

GB4798.3

Environmental conditions existing in the application

for electric and electronic products - usage



5.Technical Parameters





Environmental Performance

working environmental temperature

-20°C ~ 55°C

storage temperature

-40°C ~ 70°C

working humidity

≤95%

Thermal Performance

rated cooling capacity

1500W



Electrical Performance

rated input current

3.2A

rated input power

704W

input voltage

AC220V

(185V~264V)

Refrigerant

R410A

Frequency

60Hz

Noise

≤65dB

Country of Origin

MADE IN CHINA

TC06-150JFH/B, 1500W AC220V 60HZ High Cooling Capacity Compressor Panel Air Conditioner

6. Electrical Wiring Diagram

TC06-150JFH/B, 1500W AC220V 60HZ High Cooling Capacity Compressor Panel Air Conditioner

Wiring Ports:

L  N  PE : power supply port (voltage input: 220VAC±25% 50/60Hz)
A+  B-  SGND : RS485 communication port
AL1  AL2: general alarm output port
F+  F- : straight ventilation output port
N : not connected pin



7. Wiring Diagram

TC06-150JFH/B, 1500W AC220V 60HZ High Cooling Capacity Compressor Panel Air Conditioner

Diagram 4: Wiring Diagram
