GPE48120N,Rectifier,DC48V120A,With Monitoring Module,RS485/232,Ethernet Communication Port

China GPE48120N,Rectifier,DC48V120A,With Monitoring Module,RS485/232,Ethernet Communication Port supplier

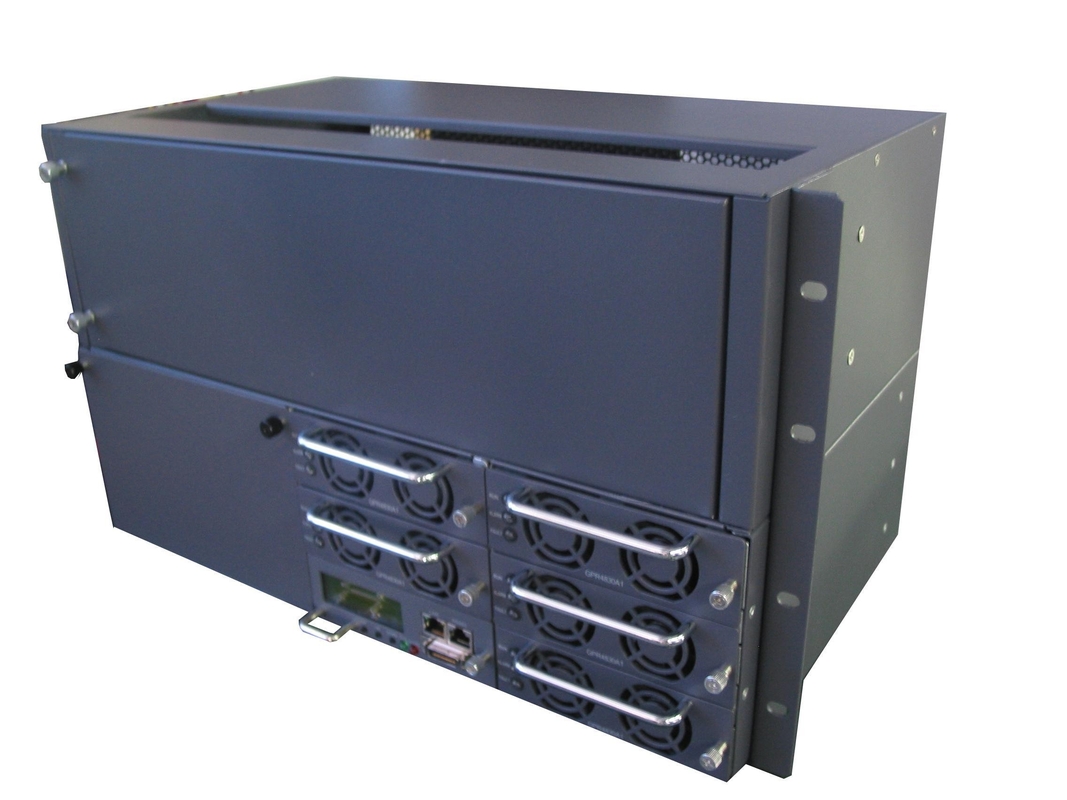

Large Image :  GPE48120N,Rectifier,DC48V120A,With Monitoring Module,RS485/232,Ethernet Communication Port

Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001:2008
Model Number: GPE48120N

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden Case
Delivery Time: 15~20 Days
Payment Terms: T/T,L/C
Supply Ability: 10000 Sets
Contact Now
Detailed Product Description



Power System of High Performance and High Reliability

GPE48120N Embedded Power System

Input:90~290Vac; Output: -42~-58Vdc;

The GPE48120C embedded power system consists of the power distribution frame, monitoring module and rectifier module, with functions of AC lightning proof and DC power distribution. The monitoring module supports outside signal input, communication transformation, AC/DC detection and contactor control. The whole system is of high reliability and performance, and can be operated through PC software.

Application

■   Small scale program controlled exchanger
■   Access network
■   Transmission equipment
■   Mobile communication
■   Satellite communication ground station
■   Microwave communication


Main features

Adoption of active power factor compensation technology with factor >0.98
Wide operating range of AC input voltage: 90~290Vac
Operating temperature range: -25°C~+55°C
Zero current/voltage switching tech with high efficiency ≥91%
Lifecycle of battery prolonged by perfect battery management,  including electrical charge/discharge management, battery temperature compensation, battery capacity test, reversal connection proof protection, low voltage protection etc.
Hot-swappable
Input over/under voltage protection
Output over voltage protection
Output over current protection
Output short circuit protection
Auto current sharing, parall

1. General Introduction

1.1 System Configuration

The system consists of power distribution unit, rectifier module (from 1 set, up to 5 sets) and 1 monitoring module. The configuration is optional, as following table:


Configuration

Rectifier Module

Monitoring Module

Power Distribution

Remark

Standard

GPR4830A1

GPM48R (With Ethernet Port)

AC power distribution: AC input is wire connection terminal;

DC power distribution: battery MCB 100A×2;

LVLD: 63A×2  32A×4 (MCB capacity optional)

LVBD: 16A×2 (MCB capacity optional)

For details, please refer to the specifications of modules.



1.2 Operating Principle

AC power is first input AC-INPUT MCB and then feed into the rectifier module after lightning proof and filtering. AC-INPUT acts as protection to over load and short circuit to AC power. The user’s battery is connected to the DC output side through MCB BAT and KM2, and the circuit breaker provides disconnection control, over-load and short-circuit protection to the battery.
Under normal conditions, every parameter of rectifier modules and power distribution unit are all under control of the monitoring module, operating according to the pre-set parameter or user’s commands. If AC mains faults, the battery will power to the system. With the battery discharge, the terminal voltage of the battery starts to descend. When battery voltage is under -47V±0.5V, the monitoring module sends DC under voltage alarm signal and when battery voltage is under -46.0V±0.5V (adjustable), the KM1cuts off non-priority loads and retains power to priority loads. If battery voltage drops to -43.0V±0.5V (adjustable), the KM2 will cut off output of priority loads and then the power system will stop working. If the external AC mains recovers, the system will normally work again. (All above monitoring data are system default values and can be reset by user).

Except for battery over-discharge protection, battery or load over-temperature protection is prohibitive under default, users can send command to activate or inactivate according to the demanding.

2. System Properties


Environment

Item

Min.

Typical

Max.

Unit

Remark

Operating temperature

-25



55

°C

When ≥55°C, decreased power output

Storage temperature

-40



80

°C



Humidity

10



90

%

Relative humidity without condensing

Atmospheric pressure

70



106

KPa



Altitude

0



3000

m



Cooling

Forced cooling with fan





Input

Item

Min.

Typical

Max.

Unit

Remark

Input voltage range

90

220

280

Vac



Input frequency

45

50

65

Hz



Max. Input current





20

A



Power factor

0.99







Rated load

Input over voltage protection point

285





Vac

Automatically recoverable

Input over voltage recovery point

280





Vac

Return difference ≥5V

Input under voltage protection point





85

Vac

Automatically recoverable

Input under voltage recovery point





90

Vac

Return difference ≥5V

Input over current protection













Output (Table 1)

Item

Min.

Typical

Max.

Unit

Remark

Output voltage

42

53.5

58

Vdc

Adjustable by monitor, tested in no load

Output power



6400



W

176~280VAC (rated power includes battery charging power plus load power)



3200



W

90~175VAC input

Output over voltage protection point

58.5



61.5

Vdc

Lock up

Output current limiting protection point









Output current limiting protection

Output short circuit protection









Long-term short circuit protection, automatically recoverable

Over temperature protection









Automatically recoverable in ambient temperature lower than 65°C

Battery power-down protection









Battery power-down protection

Battery polarities reversal connection protection









No damage on battery and power system

Voltage regulation  accuracy





±1

%





Output (Table 2)

Item

Min.

Typical

Max.

Unit

Remark

Temperature coefficient





±0.2

‰/℃



Current sharing unbalance





±5

%

Within 50~100% load range

Start-up/shut-down overshoot range





±5

%

Any module is removed when operating, (the load current should be less than total output current of working rectifier modules), the system output voltage fluctuates

Dynamic response recovery time





200

uS

25%~50%~25% load variation

50%~75%~50% load variation

Dynamic response overshoot





±5

%

Rated output voltage, rated load current

Efficiency

90

91



%

220Vac input, rated output voltage, rated load current

83





%

110Vac input, rated output voltage, rated load current

Start-up time

3



8

S

pre-current limiting is fitted with start-up output between rated start up input voltage and rated output voltage established period

Peak-peak noise voltage





200

mV





Other Parameters

Item

Requirement

Acoustic noise

≤55dB(A)

Smelling

any abnormal and poisonous smelling is not allowed

Components

rated temperature of the electrolytic capacitor ≥105℃

Hot swappable

the rectifier module meets the hot-swappable requirement

Mixed insertion

rectifier modules can be mixed insertion

Ineffective separation

rectifier module can separate with system when it is ineffective

Cooling

forced cooling by fan mounted on rectifier, face in, back out. The fan is mounted on rectifier front panel; can be disassembled. Fans include temperature control speed adjusting function.



Insulation Rating

Parameters

Min.

Typical

Max.

Unit

Remark

Input-chassis



4242



Vdc



Input-output



2121



Vdc



Output-chassis



750



Vdc



Insulating Resistance

In normal atmospheric pressure, when relative humidity is 90%, testing voltage is 500VDC, the insulating resistance of input-output, input-grounding, output-grounding are all ≥10MΩ

3. Mechanical Properties

Mechanical specifications

Dimensions (mm)

as the following diagram

Weight(kg)

≤18kg (Inclusive of module)

 ≤10kg (Frame + Distribution, exclusive of module)



GPE48120N,Rectifier,DC48V120A,With Monitoring Module,RS485/232,Ethernet Communication Port

4. Installation Instruction

4.1 Installation Dimension

GPE48120N,Rectifier,DC48V120A,With Monitoring Module,RS485/232,Ethernet Communication Port
4.2 Installation

First insert the embedded power system to the specified location inside the cabinet till the system is well fixed. Keep the 8 fixing holes on the bracket in line with those on the cabinet and then screw up 8pcs M4 cross rounded head screws. Finally complete the installation after tightening the screw.
Note: The cabinet shall be provided by the user.

5. Electric Connection

5.1 Electrical Connection

Chassis connects with external electric through system interface board. As shown in figure below:

GPE48120N,Rectifier,DC48V120A,With Monitoring Module,RS485/232,Ethernet Communication Port

Power Distribution Instruction:
(1)Grounding Screw
(2)AC Input MCB
(3)Battery MCB (100*2)
(4)SPD
(5)LOAD(-): System Load Cathode LVLD (6 MCBs)
(6)LOAD(-): System Load Cathode LVBD (2 MCBs)
(7)Monitoring Module
(8)LOAD(+): System Load Anode (Copper Bar On Front Panel Of The System)
(9) Rectifier Module

5.2 Process of Electric Connections

Electric connection between main cabinet and external component includes: connection of AC input line, connection of DC output and battery, connection of communication cables, connection of GND cables. The main requirements of electrical connection are safety and reliability. The following are detailed description.

(1)AC Input Cable Connection

GPE48120N,Rectifier,DC48V120A,With Monitoring Module,RS485/232,Ethernet Communication Port



The connectors for AC input cable are 2PIN terminal on the front panel of system. The AC cable can be directly crimped to the connector.

(2)Connection of GND cables

GPE48120N,Rectifier,DC48V120A,With Monitoring Module,RS485/232,Ethernet Communication Port

PE connection: The GND section is near the left bracket of system. Connect the chassis GND point of system main cabinet and external earth with cable of 10mm2 above.

(3)Connection of DC Load Cables

GPE48120N,Rectifier,DC48V120A,With Monitoring Module,RS485/232,Ethernet Communication Port

The load connection connectors of power system are 8 MCBs, locating on the front panel of the
system.
a. The specifications and model of load cables shall be according to the engineering design requirements.
b. Connect one end of positive connection cable to the positive copper bar at the front of system;
c. Connect one end of negative connection cable to the MCB or fuse at the front of system;

(4)Connection of DC Battery Cables

GPE48120N,Rectifier,DC48V120A,With Monitoring Module,RS485/232,Ethernet Communication Port

Connection terminal of system and battery is fuse or MCB, indicated as BAT-. The cable can be directly screwed on the MCB. The detailed process of battery connection is as following:
a. Prepare positive connection cables and negative connection cables(including terminals and polarity identifications ready).
b. Fasten up the battery connection cable
c. Connect one end of positive connection cable to the positive copper bar at the front of system;
d. Connect one end of negative connection cable to the MCB or fuse at the front of system;


(5)Recommended Cable Specifications



Item

   Sign

AWG/ Min. Section

(#/mm2)

AWG / Max. Section

(#/mm2)

Temp Rating

(°C)

Withstand Voltage

(V)

Output load wire

Load1, Load1-,

Load2, Load2-

12#/4

10#/5.5

105

600

Output load wire

Load3, Load3-

Load4, Load4-

6#/10

4#/16

105

600

Input GND wire

PEin

9#/6

6#/10

105

600

Mains neutral wire

Nin

6#/10

4#/16

105

600

Mains live wire

Lin

6#/10

4#/16

105

600

Battery +

(BATT +)

2#/35

1#/50

105

600

Battery -

(BATT -)

2#/35

1#/50

105

600



(6)Connection of communication cables

GPE48120N,Rectifier,DC48V120A,With Monitoring Module,RS485/232,Ethernet Communication Port

LAN and RS-485 communication interface of GPE48120C locate at the monitoring module, with function of communication with the host. LAN is Ethernet communication port, RS485 is commnication port.


LAN Ethernet communication mode: Directly connect to the PC with cross wires or with common wire through a router.

RS-485 communication mode:
a. Connect one end of communication cable to RS-485 on monitoring module of GPE48120C.
b. Pin2 of communication cable linked to RS-485+ at RS-485 converter (RS485 to RS232) , Pin3 linked to RS485- at RS-485 converter, connect COM interface of PC through RS232 port on the converter.
c. Or connect the system to switch through common direct network cable. The host communicate with the system through direct network cable.
d. Communication cable making
Direction Definition: Put the side with plastic shell of registered jack down,and the side with PIN up; put the end with PIN away from you, and the end with square hole near you (the end for pushing the network cable in when making network cable). Then define the far left one as PIN1, and the far right one as PIN8.

For RS485 communication, PIN2 is RS485+, PIN3 is RS485-, other PINs are suspended.

Ethernet communication cable adopts T568A standard and T568B stadard.
T568A standard cable connection method is from left to right: green and white--green--orange and white- -blue--blue and white--orange--brown and white--brown.
T568B standard cable connection method is from left to right: orange and white--orange--green and white- -blue--blue and white--green--brown and white--brown.
When two ends of the Ethernet cable both adopt T568A standard or T568B standard, it is Ethernet direct cable; When one end adopts T568A standard while the other end adopts T568B, it is Ethernet cross cable.


6. GPE48120C Distribution Frame

GPE48120N,Rectifier,DC48V120A,With Monitoring Module,RS485/232,Ethernet Communication Port



7. Instruction of Monitoring Module GPM48R

7.1 Monitoring Module Function



Function

Remark

Remote monitoring of the host

The host can conduct enquiries, settings and control upon the monitoring and realize the remote message, remote sense and remote control.

Rectifier management by monitoring module

To send controlling orders or to get data from the rectifier module via RS485 communication.To manage the low voltage, power down, equalizing/float charge, temperature compensation of the battery.

Battery management

To manage the low voltage, power down, equalizing/float charge, temperature compensation of the battery.

Output management by monitoring module

To inspect and control the system

LED indicator

Signal indication

6 dry contacts output

Dry contact setting

COM port signal



LCD display

to conduct setting and modification on the menu

For details, please refer to specifications of “GPM 48R”.


7.2 Monitoring Module Installation

Handles on panel of monitoring module are equipped. When inserting monitoring module into the main cabinet, the operator shall clutch the handle with one hand while holding it with the other hand. Slowly push the module into its slot until the connection terminal on back of the module are inserted into corresponding socket of system bar in the main cabinet. Finally, finish the installation by firmly fixing the screw on the panel to the main cabinet. When removing module from the main cabinet, first screw off the screw on panel, then slowly remove the module from its slot while clutching the handle.


8. GPR4830A1 Rectifier Module Instruction

8.1 Instruction of Rectifier Parameters


Item

Unit

Min.

Typical

Max.

Testing conditions

AC Input Voltage

Vac

90

220

280



AC input voltage frequency

Hz

45

50

65

Rated load

Input power factor



0.99





Rated voltage/rated load

Output voltage range

Vdc

42

54

58



Output current

A

0

30



176~290V AC input

Output voltage regulation







±1%



Peak-peak value Vp-p

mV





200

Tested with each of 0.1uF ceramic capacitor and 10uF electrolytic capacitor with 20MHzband width.

Output power

W

0

1600



176Vac~280Vac input

W

0

800



90Vac~175Vac input

Output efficiency

%

91





220V AC input

%

83





110V AC input

Input over voltage protection

Vdc

288





With 15A testing, automatically recoverable

Input over voltage protection recovery point

Vdc



285





Return difference not less than 5V

Input under voltage protection

Vdc





80

With 4A testing, automatically recoverable

Input under voltage protection recovery point

Vdc





90

Return difference not less than 5V

Output over voltage protection point

V

58.5



61.5



locked up



Output current limiting protection

A



33



Automatically recoverable

Short circuit protection

A

long-term short circuit is available; Hiccup when short circuit detected, automatically recoverable.

Over temperature protection



Automatically recoverable under 65℃ ambient temperature

The detailed information is listed in GPR4830A1 rectifier specification


8.2 Installation of Rectifier Module

Handles on panel of rectifier module are equipped. When inserting rectifier module into the main cabinet, the operator shall clutch the handle with one hand while holding it with the other hand. Slowly push the module into its slot until the connection terminal on back of the module is inserted into corresponding socket of system bar in the main cabinet. Finally, finish the installation by firmly fixing the screw on the panel to the main cabinet. When removing module from the main cabinet, first screw off the bolt on panel then slowly remove the module from its slot while clutching the handle.

9. System Maintenance

(1) Failure: yellow LED on rectifier module flickers, communication fails;
Maintenance solution: check the communication network to see whether the internet connection is loose or internet interface is damaged or not, whether communication power supply 5V is abnormal.
(2) Failure: yellow LED on rectifier lights on;
Maintenance solution: check whether the fan is blocked, load current exceeds the max. value; AC voltage is too low, then the auto rate decrease starts; over temperature pre-alarm starts; remote shut-down is started on PC software.
(3) Failure: Red LED on rectifier lights on;
Maintenance solution: check whether the voltage is too high/too low and over/under voltage protection is on; fan is blocked; ambient temperature is too high; load is short circuit or not.
If above mentioned parts are ok but the red LED is still on, then there is problem on the module, please return it to factory for repairing.
(4) Failure: Yellow, red, green LEDs on rectifier are all off;
Maintenance solution: firstly check whether AC input is available or not, if not, then check the electrical circuit; if yes, the module is in malfunction, please return the module to factory for repairing.
(5)Failure: System load terminal has output, but battery terminal has no output;
Maintenance solution: check if battery anode and cathode connection are reversed ( System includes reverse connection protection function. When battery is with reverse connection, the DC contactor on battery terminal doesn’t close and the battery terminal has no output); check if the DC contactor control line on the battery terminal is loose, broken or with bad contact ( DC contactor control line on the battery terminal is connected to J24B terminal on BACK panel of the frame).
(6)Failure: Red LED on monitoring module lights on;
Maintenance solution: press the button “OK” on monitoring module to enter state menu; press pageup or pagedown button to enquire alarm information; or directly connect PC and monitoring module with communication line, then open background software to enquire alarm information.

Contact Details
TIANJIN ESTEL ELECTRONIC SCIENCE AND TECHNOLOGY CO., LTD

Contact Person: Ms. Fiona Liang

Tel: 86--13752765943

Send your inquiry directly to us (0 / 3000)
