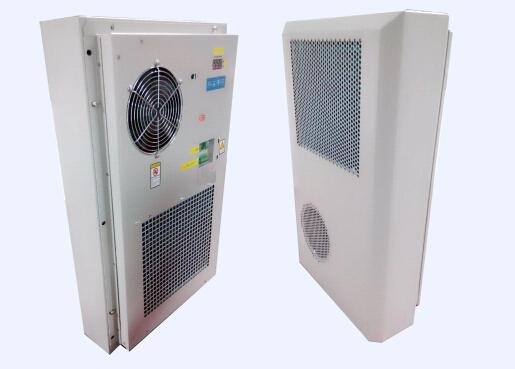

HE06-100SEH/01, DC48V 100W/K Liquid Air Heat Exchanger For Outdoor Telecom Cabinet,IP55

HE06-100SEH/01, DC48V 100W/K Liquid Air Heat Exchanger For Outdoor Telecom Cabinet,IP55

China HE06-100SEH/01, DC48V 100W/K Liquid Air Heat Exchanger For Outdoor Telecom Cabinet,IP55 supplier

Large Image :  HE06-100SEH/01, DC48V 100W/K Liquid Air Heat Exchanger For Outdoor Telecom Cabinet,IP55

Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001:2008
Model Number: HE06-100SEH/01

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden Case
Delivery Time: 15~20 Days
Payment Terms: T/T,L/C
Supply Ability: 80000 Sets
Detailed Product Description

1000W  Heat Exchanger

1. Description

The HE06-100SEH/01 Mixed Liquid Heat Exchanger is a full automation temperature control product. It uses intelligent controller to control the whole system of the heat exchanger. According to the variation of environment temperature, the intelligent controller can automatically detect, operate and record the whole system’s operating time, power consumption, event and historical data. It can store 100 event records and 1280 historical data records, and can enquire 256 days’ daily record information. The product is widely applied in telecom cabinet, small and medium sized telecom room, UPS room, outdoor base station room, etc. The heat exchanger includes the following specs: 800W,1000W,1300W, 1500W, 1900W. In addition, it also can be custom made.


2.Features

(1)Strong adaptability
(2)High intelligence
(3)High precision
(4)High reliability
(5)The heat exchange capacity can be custom made
(6)Low noise
(7)Low energy consumption
(8)With 4 way switching value detection
(9)With 1 way room air conditioner control
(10)Input voltage range: DC36 - 65V
(11)With dry contact alarm output
(12)Dust proof and water proof

3. System Principle Diagram
HE06-100SEH/01, DC48V 100W/K Liquid Air Heat Exchanger For Outdoor Telecom Cabinet,IP55
4. Standard Compliance


Standard

Description

GB/T 17626.7-1998

Electromagnetic compatibility

GB4706.1

Safty of household appliance and electrical appliance with similar use.

GB4798.1

Environmental conditions existing in the application for electric and electronic products - storage

GB4798.2

Environmental conditions existing in the application for electric and electronic products - transportation

GB4798.3

Environmental conditions existing in the application for electric and electronic products - usage



5.Technical Parameters

Model No.

HE06-100SEH/01

Environmental Performance

working environmental temperature

-20°C ~ 50°C

storage working temperature

-50°C ~ 70°C

working humidity

≤95%

Thermal Performance

heat exchange capacity

1000W

heating input power

optional



Electrical Performance

rated input current

2.4A

rated input power

116W

input voltage

DC48V



HE06-100SEH/01, DC48V 100W/K Liquid Air Heat Exchanger For Outdoor Telecom Cabinet,IP55

HE06-100SEH/01, DC48V 100W/K Liquid Air Heat Exchanger For Outdoor Telecom Cabinet,IP55



Diagram 2:  Dimension of 800W Heat Exchanger



6. Electrical Wiring Diagram

HE06-100SEH/01, DC48V 100W/K Liquid Air Heat Exchanger For Outdoor Telecom Cabinet,IP55

Diagram 3: Wiring Diagram

Wiring Ports:


0V -48V: power supply input (voltage input: DC36 - 65V)
12V GND: heat exchanger voltage output
S: smoke sensor detection input
D: door alarm detection input
W: water sensor detection input
* : not connected pin
TX RX SGND: RS - 232 communication interface
ALARM: general alarm output
F+  F- : auxiliary straight ventilation control output (output voltage: DC48V)

7.System Control

Technical Parameter

a.LCD display, user friendly;
b.Simultaneously display temperature and humidity inside the cabinet and communication room;
c.Temperature measurement accuracy: 0.1 °C; humidity measurement accuracy:4%;
d.Can store 180 days’ daily event record, 1 record every day; Daily highest temperature, lowest temperature, average temperature; Daily event record;
e.Store the former day’s daily data at 0: 00 every day; Can enquire 180 days’ daily record information;
f.RS485 or RS232 communication, RTU-Modbus protocol, support remote detection and control;
g.Power supply: DC36V - 65V;
h.Power consumption:≤5W;
i.Working environment: -30°C~70°C; <90%RH;
j.Installation method: guide rail,hanging;
k.Dimension:190mm×190mm×45mm



8. Wiring Diagram

HE06-100SEH/01, DC48V 100W/K Liquid Air Heat Exchanger For Outdoor Telecom Cabinet,IP55

Diagram 4: CPU Board Ports Diagram

J1: display board
JD1: DC48V input, 1 - 0V, 2 - -48V;
JD2: heating output, 1 - +, 2 - -;
JD3: fan power supply input,  1 - DC+/AC-N, 2 - DC-/AC-L;
JD4: 1~4 - internal circulation fan 1; 5~8 - external circulation fan 1;
JD5: 1~4 - internal circulation fan 2; 5~8 - external circulation fan 2;
JD6: 1~4 - internal circulation fan 3; 5~8 - external circulation fan 3;
         1 - Red(48V), 2 - White (feedback input), 3 - Yellow(control output),
         4 - Blue(0V);
JD7: 1, 2 - direct ventilation output ;
         3, 4 - general alarm output (dry contact output, disconnecting alarm);
         5 - water pump power supply + (Red); 6 - water pump power supply -(Black);
         7 - water pump PWM(Blue);6 - water pump state feedback (Yellow);
JD8: RS232 interface, 1 - RXD, 2 - TXD, 3 - SGND;
JD9: 4 way DI input::
         1  . 12V power output
         2. DI1, smoke sensor, active
         3. DI2, open door state, active
         4. DI3, water sensor, active
         5. DI4, active
         6. 0V
