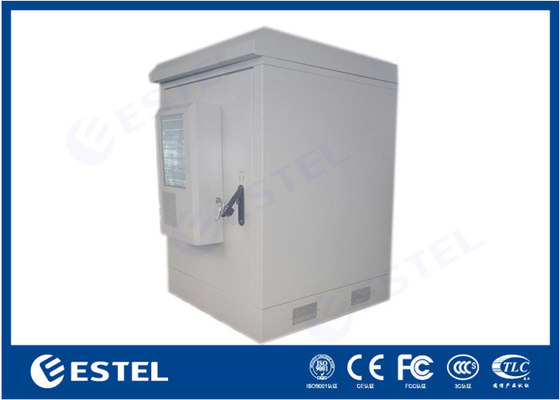

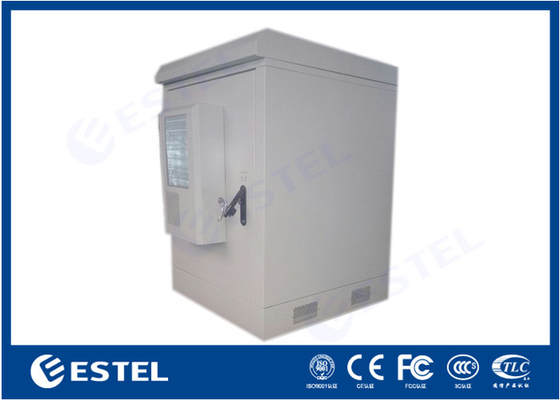

19 Inch Double Door Vanda19 Inch Double Door Vanl-Proof Galvanized Steel Polyester Powder Coat Outdoor Battery Enclosure
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Construction: | Simple, Useful, Functional Construction | Protection: | Protection Against Corrosion |
|---|---|---|---|
| Water Protection: | IP55 | Vandal-proof: | Yes |
| Compact Design: | Yes | Layout: | One Compartment |
1, Description Of Outdoor battery Enclosure
The truth is that on many occasions, an Outdoor battery Enclosure is vital in any industrial set up or any other related application for that matter.What happens is that you always need a high standard of efficiency whenever you’re undertaking a particular operation.Ordinarily, you need a Outdoor battery Enclosure to guarantee safety both for the users and the battery.Having this equipment is a sure way of becoming safe especially from the aspect of accidents.
2, MAIN ADVANTAGES:
Simple, useful, functional construction
The highest protection against corrosion
Galvanized steel Polyester Powder coat with UV protection
IP55 dust and water protection
Vandal-proof
Compact design
Ready for crane transport
3, Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension |
External Dimension H*W*D 1300*900*900mm Internal Dimension H*W*D 1000*800*800mm |
| Layout | One compartment | |
| Equipment Installation Method | 19” standard rack | |
| Door | With one front door and one back door, totally two doors; with special lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel; thickness of the plate: 1.4mm with heat insulation | |
| Structure | Assembled | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | 800W Air Conditioner and fans |
| Lighting | LED lamp | 48V LED lamp |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1124 × (1±5%)W/m2 |
4, Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension H*W*D 1300*900*900mm Internal Dimension H*W*D 1000*800*800mm (2) One compartment; (3) With one front door and one back door, totally two doors; with special lock for outdoor cabinet (support padlock) (4) Material: galvanized steel, thickness of the plate: 1.4mm, with heat insulation |
| 2 | Air Conditioner | 1 | Set | 800W Air Conditioner, AC220V power supply |
| 3 | 110V To 220V Transformer | 1 | Set | Used for air conditioner input |
| 4 | Fans | 4 | PC | 12038, DC48V |
| 5 | Power Distribution Unit | 1 | Set |
Grade B Lightning Proof AC Input: 63A/2P *1; AC Output: 16A/1P*4; DC Output: 16A/1P*4. Height: 4U |
| 6 | Embedded Telecom Power System (UPS) | 1 | Set |
DC48V, 60A, 3210W; Model: 1U-4860, Height: 1U. |
| 7 | Package | 1 | Set | Wooden Case |
5, Enclosure Cooling
One set Air conditioner 800W and 4 pcs DC48V fans.

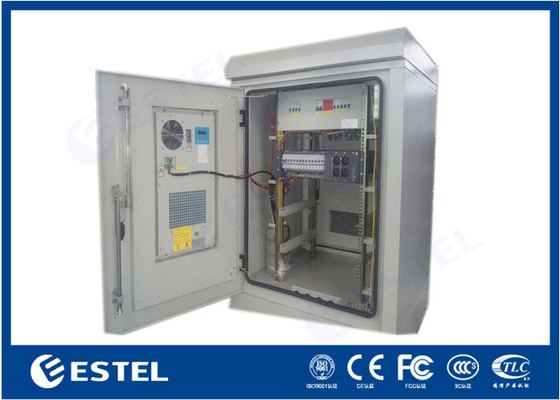

6, Cabinet Structure
(1) External Dimension H*W*D 1300*900*900mm
Internal Dimension H*W*D 1000*800*800mm
(2) One compartment;
(3) With one front door and one back door, totally two doors; with special lock for outdoor cabinet (support padlock)
(4) Material: galvanized steel; thickness of outer plate: 1.4mm, with heat insulation.
7, Cabinet Diagram:
8, Air conditioner
Installation and Electrical Wiring Instruction
8.1 Preparation Before Installation
(1) Prepare the tools in the following table “Installation And Maintenance Tools”.
(2) Check the air vents to ensure there’s no unnecessary items on the vents.
8.2 Installation And Maintenance Tools
| Tools Name | Function |
| Cross Screwdriver | Fix air conditioner. |
| Small Slotted Screwdriver | Wire power supply port on the panel |
| Wire Stripper | Wire stripping |
| Wire Crimper | Crimp power supply for equipment |
| Multimeter | Check the wiring to ensure it’s correctly connected and without short circuit. |
| Clamp Meter | Test operating current of the air conditioner |
8.3 Installation Steps
- Make sure the air conditioner is not connected with power.
- Fix the air conditioner according to the Dimension Diagram.
- Strip the insulation of the power supply wire, and crimp the terminal.
- Connect the wires according to the Electrical Wring Diagram.
- After finishing the wiring, use the multimeter to check if the electric circuit is normal. Then connect the air conditioner with power supply, and use clamp meter to test the operating current.
Note: Make sure to disconnect all the power supply to the air conditioner before installation. Choose proper wire diameter and test operating current according to the technical parameters of the air conditioner.
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
