750 750 1500 1.2mm Thickness Double Door Electrical Cabinet 19 Inch 20U With Power System

China 750 750 1500 1.2mm Thickness Double Door Electrical Cabinet 19 Inch 20U With Power System supplier
750 750 1500 1.2mm Thickness Double Door Electrical Cabinet 19 Inch 20U With Power System supplier 750 750 1500 1.2mm Thickness Double Door Electrical Cabinet 19 Inch 20U With Power System supplier 750 750 1500 1.2mm Thickness Double Door Electrical Cabinet 19 Inch 20U With Power System supplier

Large Image :  750 750 1500 1.2mm Thickness Double Door Electrical Cabinet 19 Inch 20U With Power System

Product Details:

Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: ET7575150-1-O

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 20-30 working days
Payment Terms: L/C, D/A, D/P, T/T, MoneyGram
Supply Ability: 5,000 sets per month
Contact Now
Detailed Product Description
Door: Double Doors Material: Galvanized Steel; Double Walls
Temperature Control: 1200W Air Conditioner And 2 Fans Power Distribution Unit: Height: 3U
Embedded Telecom Power System (UPS): DC48V, 90A, 4800W; Model: GPE4890J Sensor: Including 1 Smoke Sensor, 2 Door Alarm, 2 LED Lamp, 1 Water Sensor, And 1 Temperature And Humidity Sensor

1, Description

Transmission Cabinets-Transmission cabinets are equipped with numerous transmission racks. The purpose of transmission cabinets is to protect radio equipment on-site, assuring you can provide excellent service at all times.



2, Selling points and Features

- Cabinet design allows natural wind cooling through filtered vents on front door and venting under lip of rain hood

- All fixings are internal to the cabinet to provide a secure solution

-19" mounting rails front and rear

- Come with plinth for mounting on the floor ground, with cable grommets for the cabling

- Available in colors, Grey or customized colors



3, Technical Parameters

Item Type Technical Parameter
Structure Dimension External Dimension W×D×H 750×750×1500mm
Layout One compartment
Equipment Installation Method 19” standard rack
Door Double Door; with special lock for outdoor cabinet (support padlock)
Material Galvanized steel; double walls, thickness of outer plate: 1.2mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.
Structure Assembled
Ingress Protection IP55
Temperature Control Cooling 1200W Air Conditioner and 2 fans
Lighting LED lamp 48V LED lamp
Temperature Temperature Working Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C



4, Accessories List

No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1) External Dimension W×D×H 750×750×1500mm

(3) Double Door ; with special lock for outdoor cabinet (support padlock) (4) Material: galvanized steel; double walls, thickness of outer plate: 1.2mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.

2 Air Conditioner 1 Set 1200W Air Conditioner, AC220V power supply
3 110V To 220V Transformer 1 Set Used for air conditioner input
4 Fans 2 PC DC48V
5 Power Distribution Unit 1 Set

Grade B Lightning Proof

2 x 63A/1P

2x32A/1P

2x16A/1P

2x10A/1P

2x5A/1P

Height: 3U

6 Embedded Telecom Power System (UPS) 1 Set

DC48V, 90A, 4800W; Model:

GPE4890J

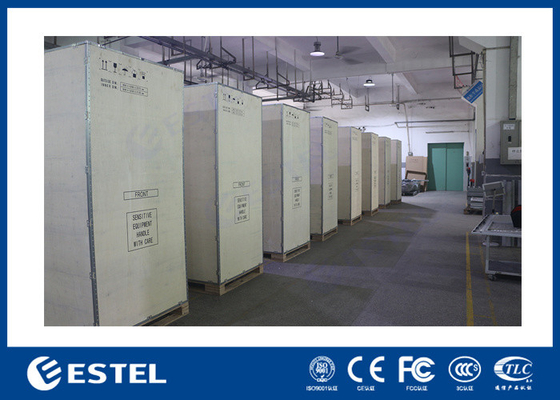

7 Package 1 Set Wooden Case
8 Sensor     Sensors (including 1 smoke sensor, 2 door alarm, 2 LED lamp, 1 water sensor, and 1 temperature and humidity sensor.)



5, Enclosure Cooling

1Set 1200W Air Conditioner, AC220V power supply

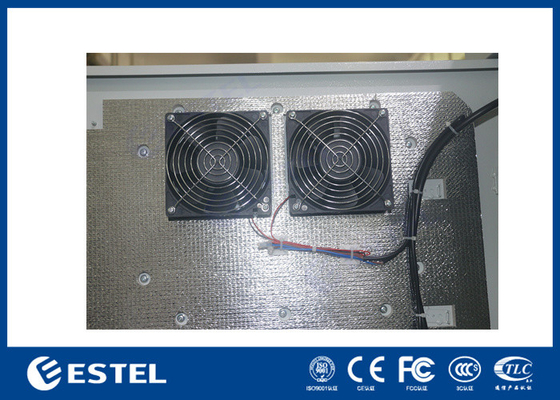

2 pcs DC48V fans.



6, Cabinet Structure

(1) External Dimension W×D×H 750×750×1500mm

(2) One compartment;

(3) totally two doors; with special lock for outdoor cabinet (support padlock)

(4) Material: galvanized steel; double walls, thickness of outer plate: 1.2mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.

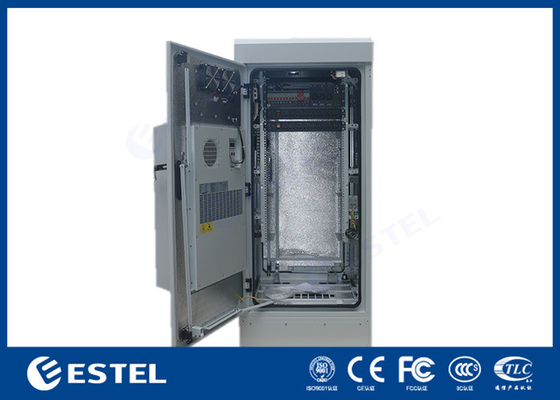

7, Cabinet Picture:

750 750 1500 1.2mm Thickness Double Door Electrical Cabinet 19 Inch 20U With Power System



8, Power system connections

(1) AC input cable connections The connectors for AC input cable are two-core AC input sockets on the front panel of system. The AC cable can be directly inserted to the connector.



(2) Connection of DC load cables The terminals for load connection of the system are LOAD1-, LOAD2-, totally 2PIN, locating on the front panel of the system. The cable can be directly inserted into the terminal.

a. The specifications and model of the load cables shall be according to the engineering design requirements.

b. Connect one end of anode cable to “+” on the front panel of the system;

c. Connect one end of cathode cable to “LOAD1-” or “LOAD2-”the front panel of the system;



FAQ

Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
