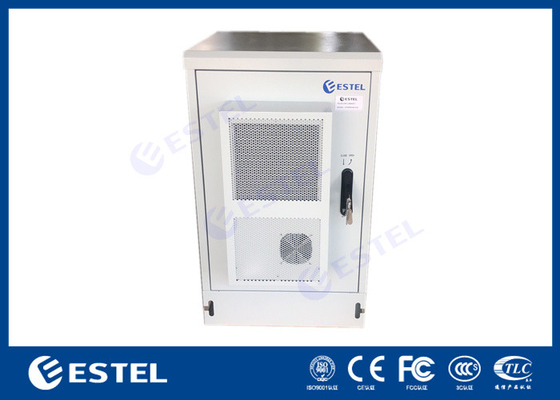

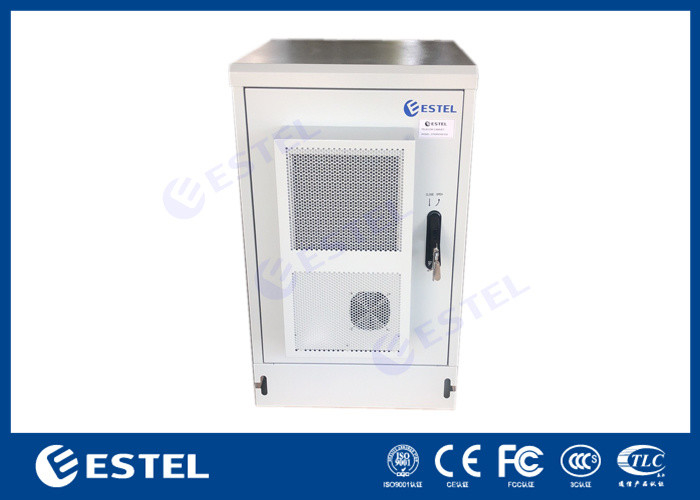

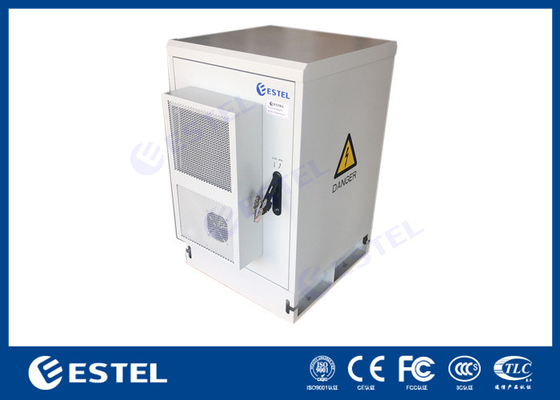

IP65 16U Galvanized Steel Outdoor Telecom Cabinet Standard 19 inch mounting rails
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| IP RATE: | IP65 | Material: | Heavy Gauge Galvanized Material |
|---|---|---|---|
| Inner Height: | 16U | Inner Rails: | Standard 19 Inch Mounting Rails |
| Door: | One Front Door | Lock: | Anti-theft Three Point Lock |
1, Description Of Outdoor Telecom Cabinet

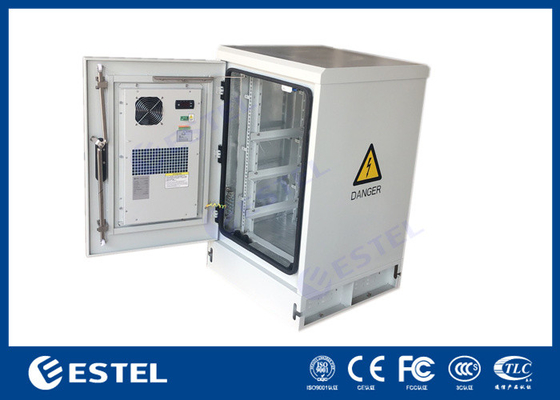

The equipment cabinet is designed to house a variety of telecommunication equipment with 19" or 23" rack, they provide protection from vandalism, dust, rain, snow and dripping water. The material can be made from galvanized steel, aluminum or stainless steel according to different demand. Air conditioner(options: Heat exchanger/TEC/Fan) is installed on cabinet for keeping a stable temperature inside cabinet so as to increase service life and stability of equipment.
2, Feature Of Outdoor Telecom Cabinet
>>> Ingress protection is IP65
>>> Made of heavy gauge galvanized material.
>>> Front door use standard three-point anti-theft lock. The door lock forms an upper, middle and lower three-point locking structure. For the cabinet with large area, the locking effect is safe and reliable.

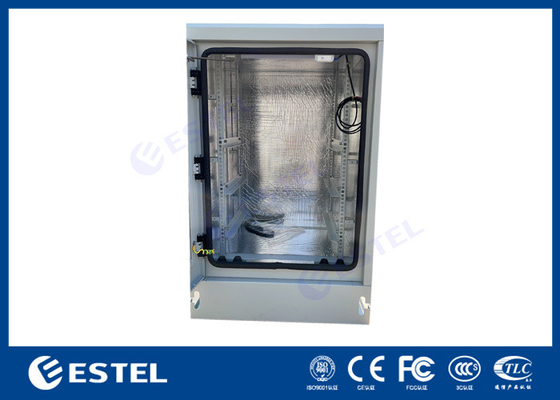

>>> Standard 19 inch mounting rails.
>>> It is installed in the ground root or above ground column base system by "direct burying"
>>> Cable entry is at the bottom of the cabinet
3, Specification Of Outdoor Telecom Cabinet
| Model | ET6565100-EQ |
| Dimension | W×D×H 650×650×1000mm |
| 19” space and battery shelf | 16U |
| Door | One front door |
| Lock | Anti-theft three point lock for outdoor cabinet(support padlock) |
| Material | galvanized steel, with thermal insulation |
| Installation method | Floor mount |
Cooling |
Air conditioner with screen, can set start working temperature and stop temperature. Power supply: AC220V 50Hz; Cooling Capacity: 500W |
| Illumination | 1pc LED lamp AC220V |
| Door sensor | Used for controlling led lamp on/ off |
| Working temperature | -40°C～+75°C |
| Ingress Protection | IP65 |
| Relative Humidity | 5% ~ 100% |
4, Application Of Outdoor Telecom Cabinet
The outdoor Telecom Cabinet can be used for Telecommunication Wireless/Broadband Base station, Wireless cell sites & switches, Transmission terminals Data and so on. It can be installed in Car park, Track side, Building top,Mountain area,Public garden ,Seaside etc.
5, Dimension and Position of installation holes at cabinet base are as follows:
6, Air conditioner Display interface
| NO. | Icon | Function | Function explanation |
| 1 | Refrigerating running | Indicate whether refrigerating runs or not | |
| 2 | Heater running | Indicate whether heater runs or not | |
| 3 | Fan running | Indicate whether fan runs or not | |
| 4 | Set key | Select function and enter parameter set | |
| 5 | Up key | Increase value, page up | |
| 6 | Down key | Decrease value, page down |
