Outdoor Telecom Cabinet, Made of Aluminum,with Three Compartment (MDF, Equipment, Battery)

Certification
Good quality Two Compartments Outdoor Telecom Cabinet for sales
Good quality Two Compartments Outdoor Telecom Cabinet for sales
Timely response, professional skills, rigorous attitude, fast delivery, we are very satisfied, cooperation is very smooth.

—— Manish

From 1 sample to 45 sets, 76 sets, 200sets, we gradually established a strong trust. The cabinet quality is good and the design is reasonable.

—— Parmar

In the past three years, our cooperation is very cheerful, thanks for your company's technical support and patient service, the end user is very satisfied with the quality of outdoor telecom cabinet with cooling. Best wishes to our future cooperation.

—— Anthony

The air conditioner have been running for one and a half years. Cooling effective is good. Good after-sale service, and patiently instruct to use and solve technical problems. Environmental monitoring system is also running well, and remote monitoring the cabinet is very convenient.

—— Luis Alberto

I'm Online Chat Now

Outdoor Telecom Cabinet, Made of Aluminum,with Three Compartment (MDF, Equipment, Battery)

China Outdoor Telecom Cabinet, Made of Aluminum,with Three Compartment (MDF, Equipment, Battery) supplier
Outdoor Telecom Cabinet, Made of Aluminum,with Three Compartment (MDF, Equipment, Battery) supplier Outdoor Telecom Cabinet, Made of Aluminum,with Three Compartment (MDF, Equipment, Battery) supplier Outdoor Telecom Cabinet, Made of Aluminum,with Three Compartment (MDF, Equipment, Battery) supplier Outdoor Telecom Cabinet, Made of Aluminum,with Three Compartment (MDF, Equipment, Battery) supplier Outdoor Telecom Cabinet, Made of Aluminum,with Three Compartment (MDF, Equipment, Battery) supplier Outdoor Telecom Cabinet, Made of Aluminum,with Three Compartment (MDF, Equipment, Battery) supplier Outdoor Telecom Cabinet, Made of Aluminum,with Three Compartment (MDF, Equipment, Battery) supplier

Large Image :  Outdoor Telecom Cabinet, Made of Aluminum,with Three Compartment (MDF, Equipment, Battery)

Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001:2008
Model Number: DDTE040

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: wooden case
Delivery Time: 15~20 days
Payment Terms: T/T, L/C
Supply Ability: 30000 sets per year
Contact Now
Detailed Product Description



1. Description



(1) Double–wall outdoor cabinet made of aluminum with all needed accessories.
(2) Ventilated roof top to ensure max ventilation.
(3) Structure/Panels/Doors :
- inside panels : 1.5 mm aluminum
- doors and outer panels : 3 mm aluminum
(4) The cabinet has three compartments (MDF- side door, Active equipment- front door and power & batteries compartment- front and side doors).
(5) Long life time, even under extreme conditions and Anti Vandalism. Environmental Protection from wind, rain, ice, snow, sun, temperature, humidity, air pressure, dust, dirt, salt and acid and Anti Vandalism.
(6) Cooling with forced air-circulation and ventilation using fans fitted at the roof of the active equipment compartment.
(7) Doors stay mechanism.
(8) MDF compartment includes cable management panels supplied with jumpers holders.
(9) MDF compartment includes columns/rows for mounting MDF rods.
(10) Active equipment compartment is supplied with fixed rack frames and mounting adapters suitable for installing 19”/ 21 “active equipment.
(11) One LAPTOP drawer/shelf in active equipment compartment.
(12) Mobile LED lamps in active equipment compartment.
(13) One files pockets in active equipment and one in MDF compartment.
(14) Flexibility to disassemble roof of Cabinet.
(15) Battery compartment includes shelves 2 mm suitable to carry considerable weight of batteries.
(16) Cabinet includes base for increased flooding level and cable management.



2. Cabinet And Accessories List





No.

Item(specs)

Quantity

Unit

Remark

1

Outdoor Telecom Cabinet              (External Size:2000*1400*800mm H*W*D)

1

set



2

Fans   DC48V 12038

100CFM 3000RPM

4

pcs

Service life: >50000 hours; metal fans

3

LED lamp

1

pc

Mobile, AC220V, 5W

4

Foundation Bolt M12*100

4

pcs



5

Packing

Set







3. Technical Parameters



Item

Technical Parameter

Temperature

Working temperature range: -40℃~ +60℃

Sorage temperature range: -50℃~ +70℃

Transport temperature range: -50℃~ +70℃

Relative Humidity

5%-- 100%

Air Pressure

62kpa~ 101kpa (similar to altitude 0m ~ 5000m)

Radiation Intensity

1400* (1±5%) W/m2

Protection Grade

IP45



4. Cabinet Cooling Solution



4.1 Two 48VDC 12038 centrifugal fans for battery&equipment compartment; two  48VDC 12038 centrifugal fans for active equipment compartment.

4.2 With air inlet at the bottom of the cabinet, air outlet at the top of the cabinet.

4.3 The air inlet use 20mm 40PPI dust proof cotton; The air inlet components use pull-out type, easy for clearance and maintenance.



Diagram 1: Air Inlet and Air Outlet



Outdoor Telecom Cabinet, Made of Aluminum,with Three Compartment (MDF, Equipment, Battery)



Diagram 2: Heat Dissipation ( the green arrows stand for cold air, and the red arrows stand for hot air)



Outdoor Telecom Cabinet, Made of Aluminum,with Three Compartment (MDF, Equipment, Battery)



 Diagram 3: Air Inlet Maintenance



Outdoor Telecom Cabinet, Made of Aluminum,with Three Compartment (MDF, Equipment, Battery)



There are dust filter components at the vents. At the air inlet of the vent, it is welded with 1mm thick and 16 mesh stainless steel mesh, preventing insects and rodent. At the inner side of the vent, it is 20mm thick and 30ppi dust filter. The filter mesh is folded together with the fold type support mesh, and the filter is fixed inside the aluminum frame. The whole dust filter is with modular design, easy for maintenance.



5. Cabinet Structure

5.1 General Structure

(1)Cabinet External Dimension: 2000*1400*800mm(H*W*D);
     Cabinet Internal Dimension: 1700*1200*600mm(H*W*D)
     Height of cabinet base: 200mm;
     Height of top cover: 80mm
(2)Cabinet material: aluminum,
     Inside panels: 1.5mm;
    Outer panels: 3mm
     Insulation between inside panels and outer panels: 20mm insulation, material: PEF
(3)The cabinet is splicing type cabinet. The cabinet roof and base can be disassembled flexibly.
(4)The cabinet outer panels is painted with special outdoor powder : pal7135 grey outdoor powder.
(5)The cabinet has three compartments (MDF- side door, Active equipment- front door and power & batteries compartment- front and side doors).
(6)The equipment compartment includes standard 19”/21” adjustable rack.
(7)Battery compartment includes stainless steel shelves 2 mm suitable to carry considerable weight of batteries (slides or fix) ready to install up to three sets of 100 AH.



5.2 Drawing

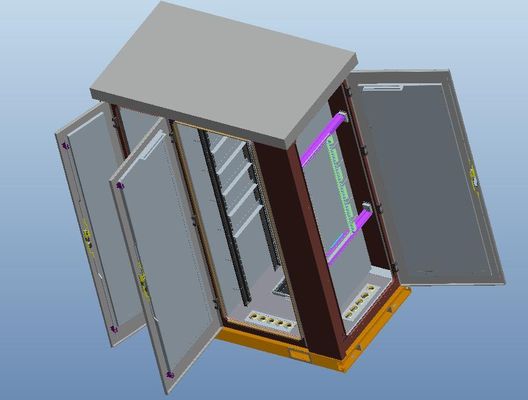

Outdoor Telecom Cabinet, Made of Aluminum,with Three Compartment (MDF, Equipment, Battery)

5.3 Door and Door Limit

(1) Cabinet door options: vertical hinge door, horizontal hinge door.
(2) The door limit device can limit the door position when it is open.
(3) The door limit function is automatically activated when the door is open, and should be canceled manually when the door is closed.
(4) When the door is fully opened, the largest open angle is larger than 95°. If it is horizontal hinge door, it can prevent outside water from flowing into the equipment compartment from the upper side. The bottom edge of the door limit device is higher than the hinge level, which can offer enough operating space.
(5) After 1000 times open and close operation, the door and door device will have good function and have no excessive wear and tear.
(6) At the door limit status, the door limit device can bear the static load by door opening and closing at 22m/s wind, without mechanical failure and function failure.



5.4  Grounding

The cabinet include grounding copper bar, 4mm thick, with 10×M6 flare-in nuts, 2×M8 flare-in nuts, 2×M10 flare-in nuts. The grounding bar is nickel plated. The screw is made from copper bar and with passivation surface treatment.



5.5  Theft Proof Design



(1)Theft proof lock


The damage resistance of the theft proof lock conform to Grade C requirement in GA/T 73-2011 “Mechanical anti-theft lock”. One key for each lock, without master key, support padlock.

(2)The theft proof lock and the door frame use three - point, one - way lock.



5.6 Connection and Fastening


(1)The structure and bearing connection use threaded connection with locking device. The foundation bolts for fixing the cabinet use hot galvanized bolts. The connection is strong.
(2)The rivets and riveting nuts are neatly arranged. The riveting surfaces is free of concave, deforming and damage.



5.7 Appearance and Surface Treatment



Outdoor powder coat, with gray color. The coat is anti-shock, anti-aging, anti-solvent, anti-low temperature.



6. Protection



The cabinet is corrosion proof, water proof, dust proof, condensation proof, and wind proof.



7. Lighting and other specs



(1)The lighting for the cabinet can meet the installation and maintenance requirement.
(2)The working voltage of the lamp is -48VDC or 220VAC.
(3)One files holder in active equipment compartment and one in MDF compartment
(4)The life time of the cabinet seal strip is at leat 10 years, and is easy for replacement.
