ET25080240C-240 Outdoor Telecom Floor Mounted Cabinet With 3 Compartments Enclosure
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Model: | ET25080240C-240 | External Dimension: | H×W×D 2400×2500×800mm |
|---|---|---|---|
| Layout: | 3 Compartments | Material: | Galvanized Steel Or OEM |
| Cooling: | 3 Air Conditioners | IP Grade: | IP55 |
| Cabinet Door: | With 3 Front Doors | Installation Installation: | Ground Installation |
| Color: | Per Customer Request | Cable Routing: | Cable In And Out From The Bottom Of Cabinet |
ET25080240C-240 Outdoor Telecom Floor Mounted Cabinet With 3 Compartments Enclosure
1. ET25080240C-240 Outdoor Telecom Cabinet Parameters
| Type | Technical Parameters |
| Dimension | External Dimension: H×W×D 2400×2500×800mm |
| Layout | 3 compartments |
| Equipment Installation Method | 19” rack |
| Door | With 3 front doors . With anti-theft three point lock for outdoor cabinet (support padlock) |
| Material | Galvanized steel,can customized per customer's request |
| Heat Insulation | There are heat insulation The insulation material is 20mm PEF |
| Structure | Welded or Assembled |
|
Hinge
|
Inner hinge
|
|
Coating
|
Polyester powder coating
|
| Ingress Protection | IP55 |
| Mounting Type | Floor mounted |
| Cooling System | Three AC220V air conditioners |
| Lightning Proof | Grade B lightning proof,Nominal: 60KA, Max.: 100KA or per |
| LED lamp | 220VAC LED lamps (immovable), with protective circuit breaker |
| Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | |
| Transport Temperature: -50°C ~ +70°C |

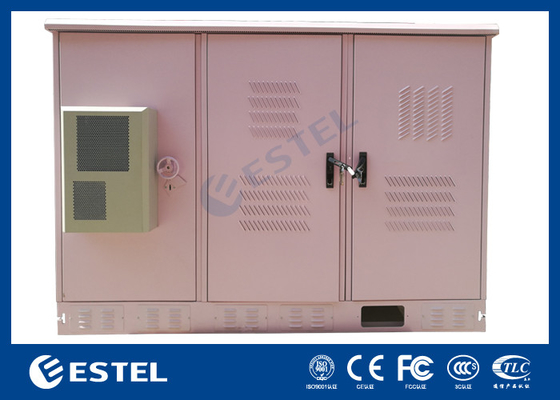

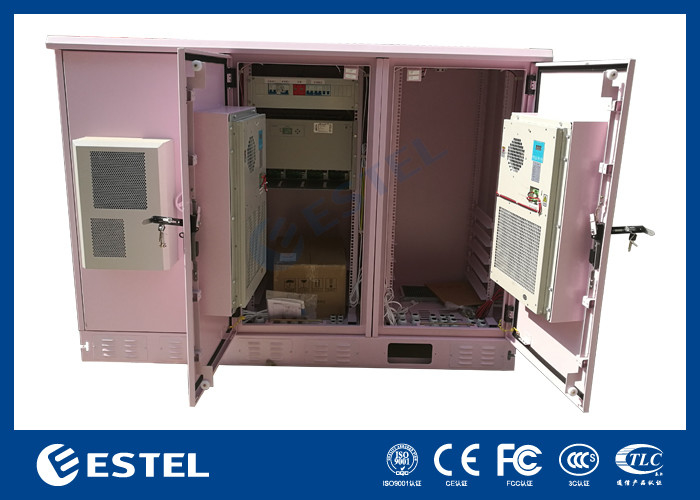

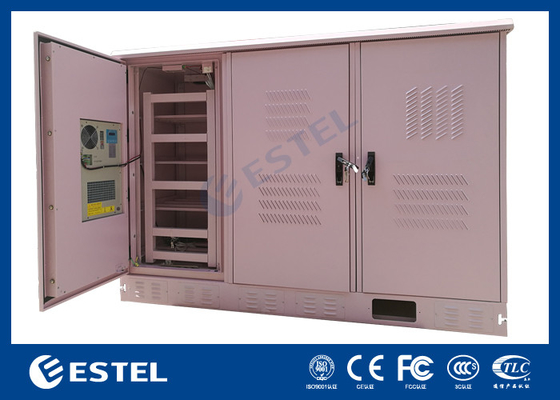

2. Three Compartments Outdoor Enclosure Pictures
3. Floor Mounted Outdoor Cabinet Structure
(1) External Dimension: WDH: 2500×800×2400mm
(2) 3 compartments
(3) With three front doors , with Anti-theft three-point locking system (support padlock) ;
(4) Material: High quality galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm.The insulation material is 20mm PEF, we also can follow customer's request.
4. Outdoor With Three Compartments Cabinet Quality Control Introduction
Our company resolutely implements the principle of quality first, we control and supervise the whole production process in strict accordance with the requirements of the ISO9001 system and the related implementation process. The quality department strictly controls all aspects like material inspection, production processes, product testing, shipment inspection and establishes traceable documents and product identification.
Our quality inspection team, is very familiar with the various standards, strict implementation of the standards required sampling and testing methods.
5. ET2525080240C-240 Outdoor Cabinet Main Features
- The box has the characteristics of dust prevention, sun protection, rain protection, etc., and is fully adapted to the outdoor environment.
- The equipment cabinet adopts air conditioning for heat dissipation (heat exchanger can also be selected as heat dissipation equipment), with MTBF ≥ 50000h.
- The cabinet is equipped with lighting fixtures.
- The cabinet layout is reasonable, and the cable introduction, fixation and grounding are convenient for operation and maintenance; Power line, signal line and optical cable have independent inlet holes, which will not interfere with each other.
- Cables used in the cabinet are made of flame retardant materials.
