Outdoor Telecom Cabinet Three Compartments And 1500W Air Conditioner with IP55 protection
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| External Size: | H×W×D 1800×900×1800mm | Cooling System: | Air Conditioner |
|---|---|---|---|
| IP Rating: | IP55 | Model Number: | 314180918050002 |
| Power Supply: | 48VDC | Air Conditioner Cooling Capacity: | 1500w |
| Surface Treatment: | Outdoor Anticorrosion Powder Coating | Cabinet Material: | Galvanized Stee |
| Insulation Material: | 20mm PEF | Lock: | Anti-theft Three Point Lock |
Outdoor Telecom Cabinet Three Compartments And 1500W Air Conditioner With IP55 Protection
1. Outdoor Telecom Cabinet Brief Description
The cabinet is mainly used for wireless communication base stations, including a new generation of 4G / 5G systems, communications / network integrated services, access / transmission switching station, emergency communications / transmission etc.
2.Three Compartments Cabinet Technical Parameters
| Item | Type | Technical Parameter |
| Cabinet Structure | Dimension | External Dimension: H×W×D 1800×900×1800mm |
| Layout | 3 compartments: 2 compartments for equipments and batteries installation;1 compartment for fiber distribution installation. | |
| Equipment Installation Method | 19” rack and battery shelves and fiber distribution frame. | |
| Door | With 2 front doors and 1 side door, and anti-theft three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate | |
| Heat Insulation | There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF. | |
| Structure | Assembled | |
| Mounting type | Floor mounted | |
| IP Protection | IP55 | |
| Temperature Control | Cooling | 48VDC air conditioner |
| Lighting | LED lamp |
48V LED lamps with swtich |
| Environment | Operating temperature | -40℃~+65℃ |
| Storage temperature | -40℃~+70℃ | |
| Operating humidity | 0%~95%(non-condensing) | |
| Altitude | 0~3000m(If the altitude is within the range of 2000m to 3000m, the maximum operating temperature decreases by 1℃ as the altitude increases by 200m.) |
3. IP55 Telecom Cabinet Material
The cabinet is made of galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm. There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF. The cabinet is assembled type.

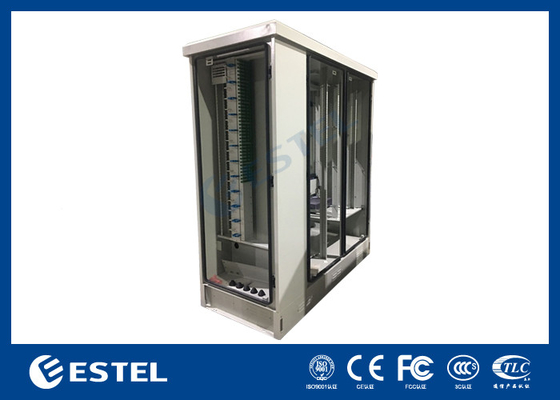

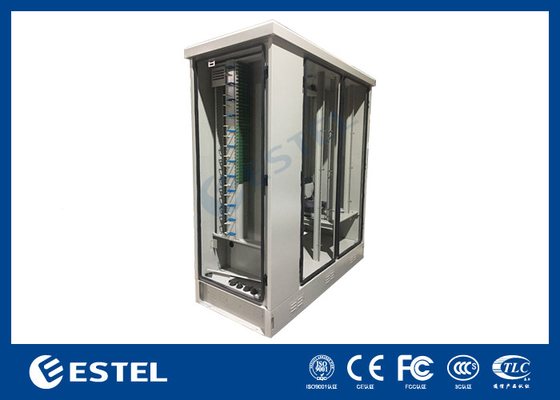

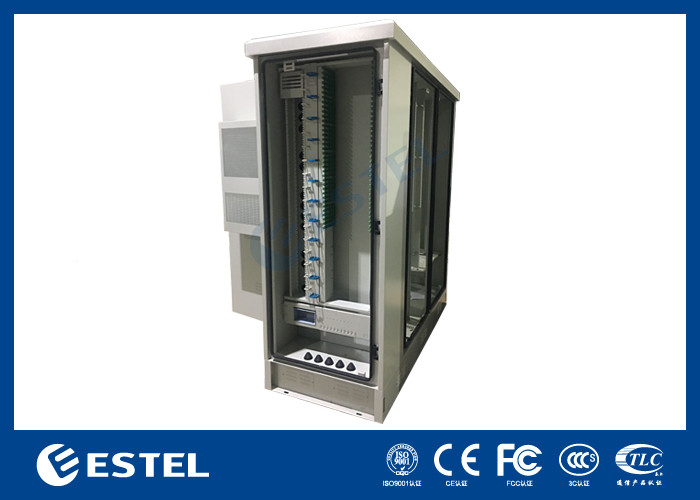

4. Cabinet with 1500W Air Conditioner Picture
5. IP55 Outdoor Cabinet Applications
-
Fiber Optics
-
Base Station
-
Small Cell/DAS
-
Utility - Traffic
-
Trailer-based Communications
6. FAQ
Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
