ET200100200C-200 Base Station Outdoor Cabinet Three Compartments With 3 Front Doors
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Model: | ET200100200C-200 | External Size: | W×D×H 2000×1000×2000mm |
|---|---|---|---|
| Material: | Galvanized Steel /optional | Color: | Grey/ Optional |
| Cooling System: | Optional | IP Grade: | IP55 |
| Door: | Three Doors | Cabinet Installation: | Floor Mounted |
| Service: | ODM, OEM | Application: | Telecommunication,base Station |
ET200100200C-200 Base Station Outdoor Cabinet Three Compartments With 3 Front Doors
1. ET200100200C-200 Outdoor Cabinet Parameeters
| Item | Parameters |
| External dimentions | W*D*H 2000*1000*2000mm |
| Color | Grey color |
| Material | Galvanized steel or optional |
| Surface process | Zinc Die Powd er-coated |
| Door type | Three front doors |
| Door lock | Anti-theft three point lock, support padlock |
| Cable Inlets | Individual cable entry holes from bottom of the cabinet |
| IP protection | IP55 protection level |
| Mounting racks | 2 sets of adjustable 19″ racking rails, two battery layers or per customer's request |
| Cooling system | air conditione or per customer's request |
| Accessaries | The door sensor, water sensor, smoke sensor, temperature and humidity sensor optional |
| Flame retardant | comply with GB5169.7 test A |
| CE certificates | Support |
| Mounting type | Floor mounted with installation accessories |
| Package | Wooden cas |

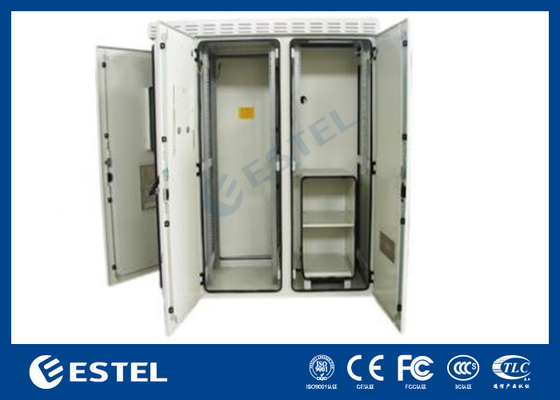

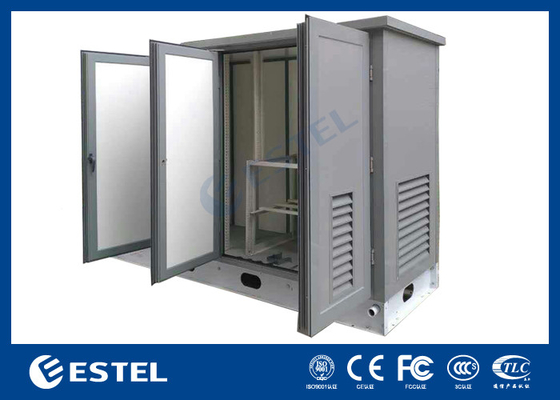

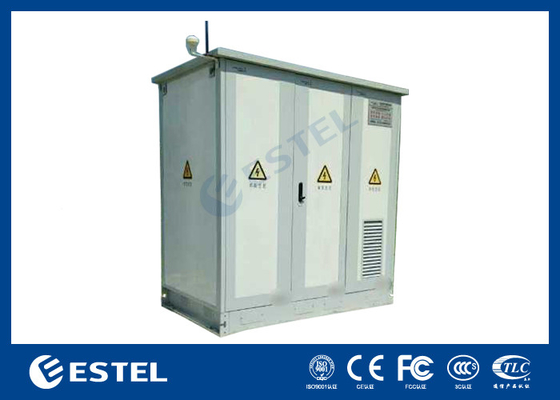

2. Base Station Cabinet Photos:
3.Three Compartments Cabinet Advantages:
High integrated
(1)High compatibility, high integration
Supporting multiple equipments, good appearance
(2)Standard compartment temperature control
Multiple temperature control modes optional
Energy saving and high efficiency
(3) Flexible structure
Compartment type design
Flexible assembly
One compartment/two compartments / multiple compartments
(4) Fast deployed
Can be assembled, easy for transportation
Modular assembly, short installation time
Suitable for road side station and building top station. After being fixed on the ground, the cabinet will start to work.
(5) Theft - proof
Inside installation, inside fixing, no outer screws
Anti-theft three point lock
Inside door hinges, multiple protection
Embedded cabinet door, theft proof
4. Outdoor Cabient Detail Instructions
Cabinet Door
The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock. Each cabinet door include open door sensor, working together with the environment monitoring unit.
Cooling System
This three bay cabinets has 3 units air conditoners installed on the front doors.220VAC Air Conditioner
5. Product Application
- Outdoor Radio Base Stations / Telecom Cabinets
- Outdoor Power Supply Cabinets
- Outdoor Gen-set Control Cabinets
- Outdoor Solar Powered Telecom Cabinets
- Outdoor Wind Power Control Cabinets
6. Our Delivery Agent
The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
