|Certificates:||CE||External Size:||W*D*H 2400*800*2400mm.|
|Material:||Galvanized, Double Wall With Insulation||Color:||Grey/ Optional|
|Cooling System:||Air Conditioner||IP Rating:||IP55|
Air Conditioner Cooling System Outdoor Base Station Including Battery Layers And Rack Rails
|External dimentions||W*D*H 2400*800*2400mm|
|Surface process||Zinc Die Powd er-coated|
|Door type||Three front doors|
|Door lock||Anti-theft three point lock|
|Cable Inlets||Individual cable entry holes from bottom of the cabinet|
|IP protection||IP55 protection level|
|Mounting racks||2 sets of adjustable 19″ racking rails,4 battery layers|
|Cooling system||air conditione rs|
|Accessaries||The door sensor, water sensor, smoke sensor, temperature and humidity sensor optional|
|Flame retardant||comply with GB5169.7 test A|
|Mounting type||Floor mounting type|
1) The construction cycle is short, the area occupies less, the scope of application is more extensive, which is conducive to reducing the construction cost.
2) High integration and compact construction are ideal for installation and post-migration.
3) Each individual module is designed with an independent environmental monitoring and control system, which uses more reliable and intelligent, is at least 30% more energy efficient than conventional base stations, and significantly reduces air pollution emissions.
4) Independently equipped with a standard 19-inch power environment monitoring module, remote real-time monitoring and monitoring and monitoring intervention sits on equipment in the base station, and remote maintenance and detection capabilities can be designed to significantly reduce late-stage operational maintenance costs.
Provide a secure,climate controlled environment for any electrionic equipment.
5.Cabient Detail Instructions
5.1 Cable Entry Holes
There are entrance holes individually for feeder cable and other external cables.
5.2. Anti-loose threaded connection
6. Cooling System
This three bay cabinets has 3 units air conditoners installed on the front doors.220VAC Air Conditioner

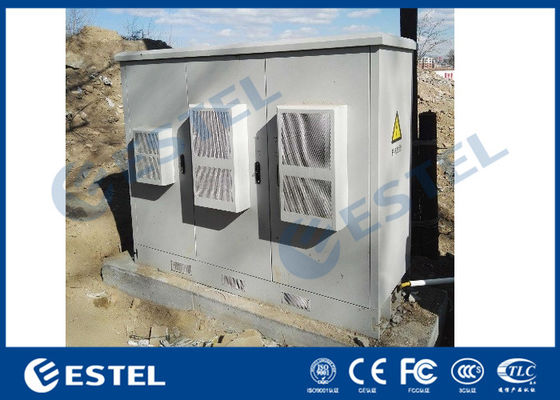

7. Related Application Pictures
