18U Standard 19” Rail Outdoor Pole and Floor Mounted Cabinet With Air Conditioner

Certification
Good quality Two Compartments Outdoor Telecom Cabinet for sales
Good quality Two Compartments Outdoor Telecom Cabinet for sales
Timely response, professional skills, rigorous attitude, fast delivery, we are very satisfied, cooperation is very smooth.

—— Manish

From 1 sample to 45 sets, 76 sets, 200sets, we gradually established a strong trust. The cabinet quality is good and the design is reasonable.

—— Parmar

In the past three years, our cooperation is very cheerful, thanks for your company's technical support and patient service, the end user is very satisfied with the quality of outdoor telecom cabinet with cooling. Best wishes to our future cooperation.

—— Anthony

The air conditioner have been running for one and a half years. Cooling effective is good. Good after-sale service, and patiently instruct to use and solve technical problems. Environmental monitoring system is also running well, and remote monitoring the cabinet is very convenient.

—— Luis Alberto

I'm Online Chat Now

18U Standard 19” Rail Outdoor Pole and Floor Mounted Cabinet With Air Conditioner

China 18U Standard 19” Rail Outdoor Pole and Floor Mounted Cabinet With Air Conditioner supplier
18U Standard 19” Rail Outdoor Pole and Floor Mounted Cabinet With Air Conditioner supplier 18U Standard 19” Rail Outdoor Pole and Floor Mounted Cabinet With Air Conditioner supplier 18U Standard 19” Rail Outdoor Pole and Floor Mounted Cabinet With Air Conditioner supplier 18U Standard 19” Rail Outdoor Pole and Floor Mounted Cabinet With Air Conditioner supplier

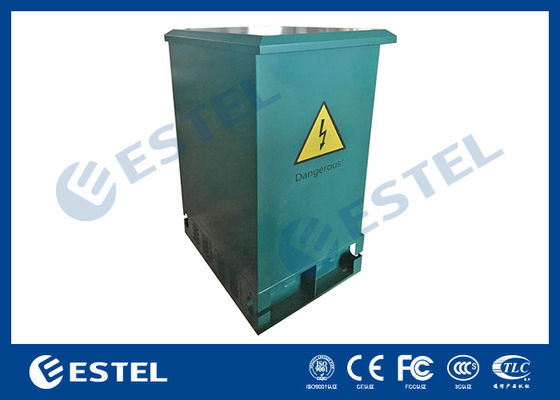

Large Image :  18U Standard 19” Rail Outdoor Pole and Floor Mounted Cabinet With Air Conditioner

Product Details:

Place of Origin: Shen Zhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: ET6550110-PF

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiation
Packaging Details: wooden case
Delivery Time: 15-20 working days
Payment Terms: T/T
Supply Ability: 10,000 sets per month
Contact Now
Detailed Product Description
External Dimension: H×W×D 1100×650×500mm Material: Galvanized Steel, Double Wall
Cabinet Lock: Anti-theft Three Point Lock Cable Entry: At Cabinet Bottom
Space Capacity: 18U Grounding Protection: Copper Bar
Cooling: Air Conditioner And Fans Installation Method: Pole Mount And Floor Mount
Cabinet Layout: One Compartment, For Installing 19" Equipment Working Temperature: -20°C ~ 55°C





18U Standard 19” Rail Outdoor Pole and Floor Mounted Cabinet With Air Conditioner





1.Specifications


      (1)Technical Parameters





Item Type Technical Parameter
Structure Dimension External Dimension H*W*D 1100×650×500mm
Layout One compartment
Equipment Installation Method 19” standard rack
Door With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)
Material

1.Galvanized steel;

2.Double wall, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with 20mm heat insulation between two walls.

3. Anti-corrosion powder coating

Structure Assembled
Ingress Protection IP55
Temperature Control Cooling AC110V 60Hz 600W air conditioner and DC48V fans
Lightning Proof Grade B lightning proof Nominal: 60KA, Max.: 100KA
Lighting LED lamp 48V LED lamp
Temperature Temperature Working Temperature: -20°C ~ 55°C
Storage Temperature: -40°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1124 × (1±5%)W/m2




(2) Accessories List



No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1)External Dimension H×W×D 1100×650×500mm

(2) One compartment;

(3) With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)

(4) Material: galvanized steel; double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with 20mm PEF heat insulation between two walls.

(5) Installation method: pole mount & floor mount, including installation accessories

2 Air Conditioner 1 Set

Cooling Capacity: 600W

Power Supply: AC110V 60Hz

3 Fan 2 PC DC48V, on the top
4 LED Lamp 1 PC DC48V
5 Door Sensor 1 PC Used for controlling LED lamp on/off
6 Package 1 Set Wooden Case




2. Application



The ET6550110-PF Pole and floor Mounted Outdoor Telecom Cabinet is widely used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.



3. Features



3.1 The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.

3.2 The cabinet use air conditioner and fans for cooling.

3.3 The cabinet includes -48VDC LED lamp for illumination.

3.4 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There’re cable entrance holes individually for power cable, signal cable and optical cable at the bottom of cabinet.

3.5 All the cables, seal and insulation material used in the cabinet are made from flame retardant materials.

3.6 The cabinet use standard 19” rack installation method.



4. Technical Specs



4.1 Applicable environment conditions:

Environment temperature: -40°C ~ + 70°C;

Environment humidity (RH): ≤95% (at + 40°C);

Air pressure: 62kPa ~ 102kPa.

4.2 Material: galvanized steel.

4.3 Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.

4.4 Cabinet load bearing: ≥300kg.

4.5 Ingress protection: IP55.

4.6 Flame retardance: comply with GB5169.7 test A.

4.7 Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2X104M/500V(DC).

4.8 Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.

4.9 Mechanical strength: each surface can bear upright pressure>980N; after the door is open, its outer end can bear upright pressure >200N.





5. Cabinet Drawing:



Cabinet External Size : W×D×H: 650×500×1100mm (19”,18U)

                                                 18U Standard 19” Rail Outdoor Pole and Floor Mounted Cabinet With Air Conditioner

18U Standard 19” Rail Outdoor Pole and Floor Mounted Cabinet With Air Conditioner

                                                      18U Standard 19” Rail Outdoor Pole and Floor Mounted Cabinet With Air Conditioner

  18U Standard 19” Rail Outdoor Pole and Floor Mounted Cabinet With Air Conditioner



6. Cabinet Layout

18U Standard 19” Rail Outdoor Pole and Floor Mounted Cabinet With Air Conditioner

18U Standard 19” Rail Outdoor Pole and Floor Mounted Cabinet With Air Conditioner

18U Standard 19” Rail Outdoor Pole and Floor Mounted Cabinet With Air Conditioner

18U Standard 19” Rail Outdoor Pole and Floor Mounted Cabinet With Air Conditioner

18U Standard 19” Rail Outdoor Pole and Floor Mounted Cabinet With Air Conditioner
