Waterproof Outdoor Enclosure Smart Surveillance Outdoor Box Model NPBM02
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| MoETDBU2082SGPEdel: | NPBM02 | AC Power IN: | AC 100~240V, 50/60Hz, 10A |
|---|---|---|---|
| Power IN: | DC12V IN | Door: | With One Front Door |
| Net Weight: | 1000g | Working Temperature: | -20°C ~ 65°C |
| Color: | Customized | Size(H×W×D): | 44 Mm×200 Mm×120mm |
| Service: | OEM ODM | RS485: | RS485 |
| RS232: | RS232 | Material: | Metal |
Waterproof Outdoor Enclosure Smart Surveillance Outdoor Box Model NPBM02
1, Outdoor Waterproof Enclosure Overview:
The NPBM02 is a software platform controller, to be used in the smart surveillance box. It can be connected with network switch, IP camera, flash lamp, alarm lamp, infrared detector or other equipment. It can managed all connected equipment and with rich management function. Work with the platform software, It can send alarm message when input AC power off, device power off, optical fiber link down, IP camera link down...

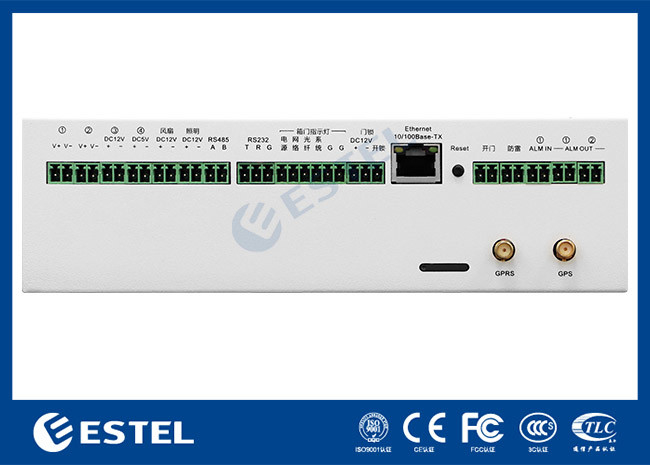

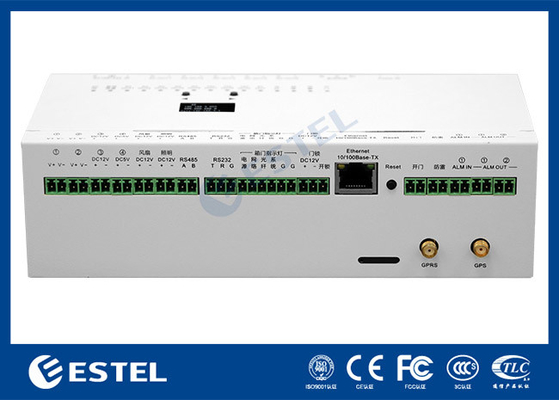

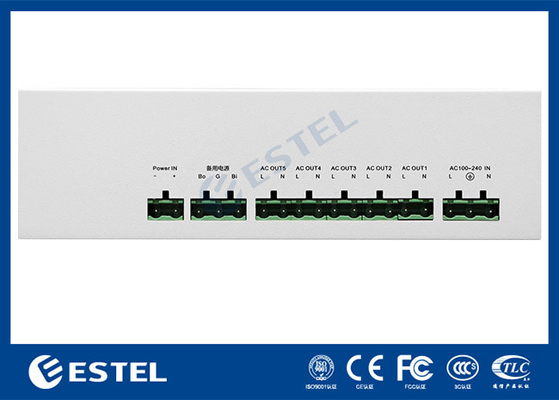

2, Outdoor Cabinet Picture:
3, Outdoor Enclosure Features:
Provide 1 channel AC power input, can detect input of voltage .
Provide 5 channels AC power supply output, can remote control and detect of voltage output .
Provide 3 channel DC 12V, can remote control and detect output of voltage and current.
Support detecting box’s door opening/closing status；
Support system extensions,can extend AC high voltage unit and alarm unit.
4, Outdoor Waterproof Box Hardware Application:
5, PoE Switch Box Hardware Specification:
| Item |
Specification
|
| AC power IN | AC 100~240V, 50/60Hz, 10A |
| Backups DC power IN | DC12V 6A maximum, can be used for backup power supply(customized) |
| Power IN | DC12V IN |
| AC OUT 1-5 |
Controlled AC output 5 channels; support for remote control of single channel; Support shows voltage value; |
| DC12V output |
DC12V output 3 channels, 3A, green terminal slot; Support for remote control of single channel; Support shows the single circuit voltage value; |
| LCD screen |
0.96# LCD show power input, SN, device IP, server IP, link-status, SPD(surge protection device) status, temperature and humidity |
| GPRS Module (optional) | 4G module(customized) |
| GPS Module (optional) | GPS module(customized) |
| RS485 | RS485 |
| RS232 | RS232 |
| 10/100Network port | 1*10/100Base-TX |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -40℃~85℃ |
| Humidity | 0~95%(no condensation) |
| Size(H×W×D) | 44 mm×200 mm×120mm |
| Material | Metal |
| Colour | White |
| Net weight | 1000g |
6, FAQ
Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
