Outdoor POE Switch Box Model QB2082SPG Waterproof Cabinet Ethernet Switch
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Metal | MoETDBU2082SGPEdel: | QB2082SPG |
|---|---|---|---|
| Size: | 280mm×200mm×260mm | Installation Method: | Pole Mount |
| Door: | With One Front Door | MAC Address Table: | 16K |
| Working Temperature: | -20°C ~ 65°C | Color: | Customized |
| 1~8 PoE Ports: | Support IEEE 802.3af/at, End-span, Single Port≦30W | Service: | OEM ODM |
Outdoor POE Switch Box Model QB2082SPG Waterproof Cabinet Ethernet Switch
1, Outdoor Power Supply Enclosure Overview:
QB2082SPG-120 is an outdoor PoE switch. It is integrated of PoE switch, optical fiber tray, air breaker, lightning arrester etc. It has IP55 protection grade, can be for outdoor using.
It can be applied for surveillance monitoring, forest monitoring, etc.
2, Outdoor Cabinet With Fan Drawing:

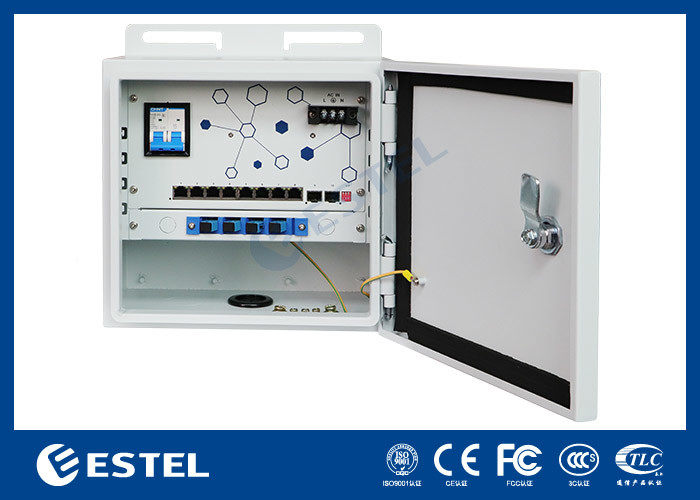

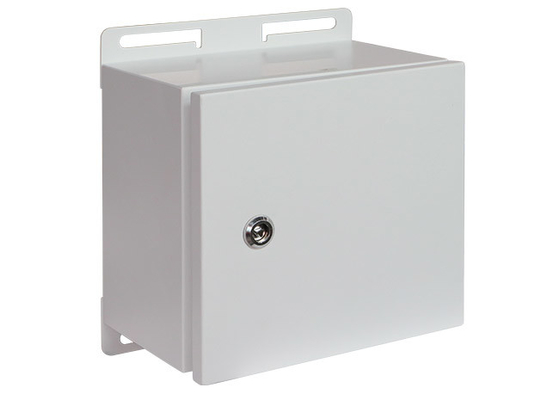

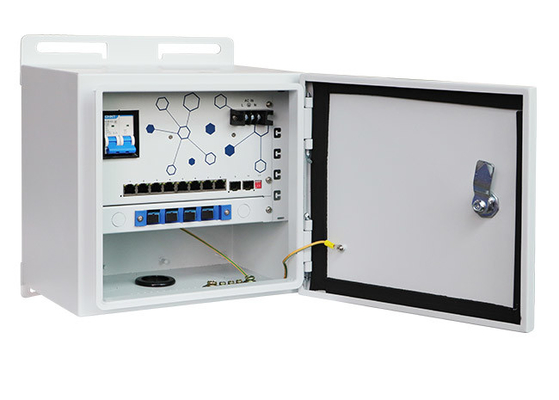

3, Outdoor Cabinet Pictures:
4, Outdoor Enclosure Features:
AC220V mains power input, 120W DC52V power module inside.
With 8*10/100/1000M PoE downlink ports and 2*1000M SFP uplink ports.
The maximum PoE power of single port is 30W, and the maximum PoE power of the whole machine is 115W.
Provides three modes of VLAN to adapt to various complex environments.
Supports PoE Auto-check function, which is specially designed to solve the problems of equipment frozen. It can automatically detect the frozen PD equipment and restart the ports’ output of PSE, and restart the PD device. It greatly reduces the maintenance difficulty of engineering.
6KV surge protection, 6KV contact / 8KV air ESD protection.
The box adopts waterproof (protection level IP55), anti-rust treatment, suitable for long time outdoor use.
5, Outdoor Waterproof Box Hardware specification:
| Parameter | Specifications |
| Power supply | AC100-240V, 50/60Hz |
| Consumption | Self consumption<5W, PoE output max. 115W |
| Downlink ports | Ports 1~8 10/100/1000Base-T 30W PoE RJ45(IEEE 802.3af/at) |
| Uplink ports | Ports 9~10 1000Base-X SFP |
| PoE ports | Ports 1~8 support IEEE802.3af/at, end-span, 30W per port Max. |
| PoE Auto-check | If detect the frozen PD device, restart it |
| Working mode | VLAN mode: ports 1 ~ 8 are isolated from each other and can only communicate with the uplink port; restrain the network storm; turn off the flow control. |
| 1~8 PoE ports | Support IEEE 802.3af/at, end-span, single port≦30W |
| Cable and distance | Use cat5e/6,100m max. |
| Standard | IEEE802.3, IEEE802.3u, IEEE802.3z |
| Switch fabric | 20Gbps |
| Though put | 14.88Mpps |
| Buffer | 4M |
| MAC address table | 16K |
| Indicator |
Power: 1 *red ; Downlink 1~8: On RJ45 green LEDs indicate Link/Act, yellow LEDs indicate PoE Uplink9, 10: On RJ45 green LEDs indicate Link/Act |
| Protection | Surge: 6KV, standard: IEC61000-4-5 ESD: 6KV: contact 8KV: air, standard:IEC61000-4-2 |
| SPD | AC lightning arrester, 385v AC@20KA , 2p, - 40 ～ 70 ℃, lower incoming line, dxh06-fcs / 2r40 |
| Working temperature | -20℃~65℃ |
| Storage temperature | -40℃~85℃ |
| Humidity | 0~95%(No condensation) |
| Dimension(L×W×H) | 280mm×200mm×260mm |
| Material | Metal |
| Colour | White |
| Net-weight | 8KG |
6, PoE Switch Box Ordering Information:
|
Version
|
Describe |
| QB2082SPG-120 |
Outdoor PoE switch AC 100~240V, 50/60Hz, 10A IN; 8*10/100/1000M PoE RJ45 ports, 2*1000M SFP ports. VLAN working mode |
| Optional Accessories |
Cooling fan illumination when door open |
