Customized Pole Mounted Network Switch Cabinet EB2042PG Outdoor Smart Surveillance Box
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Metal | Color: | Customized |
|---|---|---|---|
| Demension(L×W×H): | 280mm×200mm×260mm | Installation Method: | Pole Mount |
| Ip Rating: | IP55 | Though put: | 8.928Mpps |
| MAC Address Table: | 1K | Buffer: | 448K |
| Application: | Telecommunication, Base Station, Electronic Ect, Outdoor Electronic Equipment, FTTX Network/Telecom | Door: | With One Front Door |
| Net-weight: | 8KG | Power Supply: | AC100-240V, 50/60Hz |

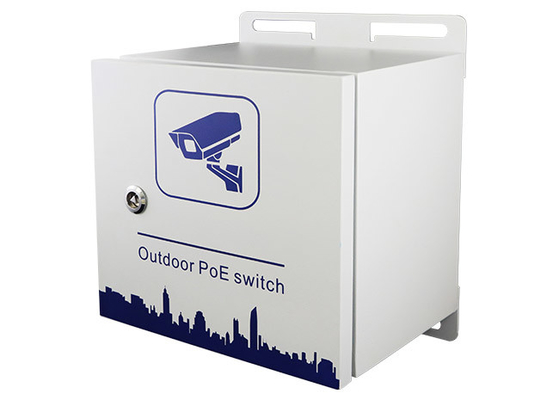

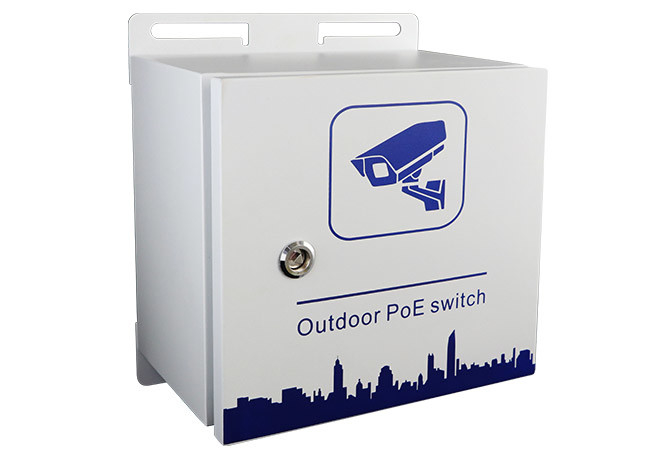

Customized Pole Mounted Network Switch Cabinet EB2042PG Outdoor Smart Surveillance Box
Pole Mounted Network Swtich Cabinet Overview

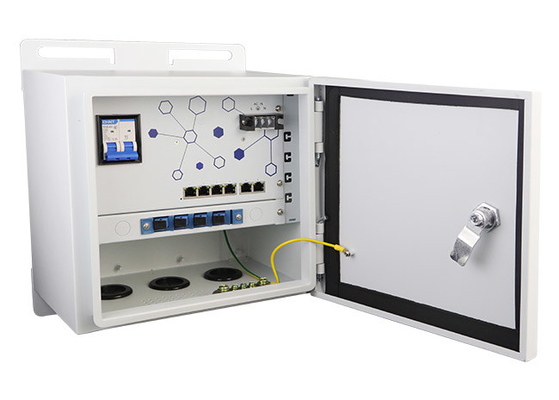

EB2042PG is an outdoor PoE switch. It is integrated of PoE switch, circuit breaker, lightning arrester etc. It has IP55 protection grade, can be for outdoor using.
"Outdoor switch box" typically refers to an electrical switch enclosure designed for outdoor environments. This box is primarily used to protect electrical switches, sockets, circuit breakers, and other related equipment from harsh weather conditions, dust, moisture, and other environmental factors. They are often equipped with strong waterproof, dustproof, and weather-resistant features to ensure the safety and reliable operation of the electrical system.
Here are some key points about outdoor switch boxes:
1. Waterproof and Dustproof Ratings: Many outdoor switch boxes have IP (Ingress Protection) ratings such as IP65, IP66, or IP68, indicating their waterproof and dustproof capabilities. Higher IP ratings mean better protection.
2. Materials and Construction: These boxes are usually made of metal (such as stainless steel or aluminum) or plastics (like ABS or polycarbonate) to ensure their strength and durability. The inside of the box may contain partitions or brackets for installing and securing electrical equipment.
3. Safety: Outdoor switch boxes often come with lockable doors or covers to prevent unauthorized access. Additionally, they may comply with specific safety standards and regulations, such as UL (Underwriters Laboratories) or CE (Conformité Européenne) certifications.
4. Applicability: These boxes are suitable for various outdoor environments, including industrial sites, construction sites, parks, street lighting, and other outdoor areas that require electrical equipment. They can be used to control power, lighting, security systems, and more.
5. Customizability: Some suppliers offer customizable outdoor switch boxes to meet the specific needs of a project. This may include different sizes, colors, materials, accessories, and installation options.
Features
AC220V mains power input, 60W DC52V power module inside.
With 4*10/100/1000M PoE downlink ports and 2*10/100/1000M uplink ports;
6KV surge protection, 6KV contact / 8KV air ESD protection.
The box adopts waterproof (protection level Ip55), anti-rust treatment, suitable for long time
Hardware specification
| Parameter | Specifications |
| Power supply | AC100-240V, 50/60Hz |
| Consumption | Self consumption<5W, PoE output max. 55W |
| Downlink ports | Ports 1~4 10/100/1000Base-T 30W PoE RJ45(IEEE 802.3af/at) |
| Uplink ports | Ports 5~6 10/100/1000Base-T RJ45 |
| PoE ports | Ports 1~4 support IEEE802.3af/at, end-span, 30W per port Max. |
| Cable and distance | Use cat5e/6,100m max. |
| Standard | IEEE802.3, IEEE802.3u, IEEE802.3z |
| Switch fabric | 12Gbps |
| Though put | 8.928Mpps |
| Buffer | 448K |
| MAC address table | 1K |
| Indicator |
Power: 1 *red ; Uplink5, 6: On RJ45 yellow and green LEDs indicate Link/Act Downlink 1~4: On RJ45 green LEDs indicate Link/Act, yellow LEDs indicate PoE |
| Protection | Surge: 6KV, standard: IEC61000-4-5 ESD: 6KV: contact 8KV: air, standard:IEC61000-4-2 |
| SPD | AC lightning arrester, 385v AC@20KA , 2p, - 40 ～ 70 ℃, lower incoming line, dxh06-fcs / 2r40 |
| Working temperature | -20℃~65℃ |
| Storage temperature | -40℃~85℃ |
| Humidity | 0~95%(No condensation) |
| Dimension(L×W×H) | 280mm×200mm×260mm |
| Material | Metal |
| Colour | White |
| Net-weight | 8KG |

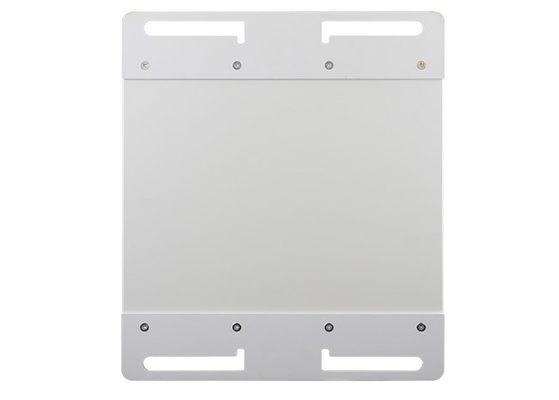

Structure
Ordering information
|
Version
|
Describe |
| EB2042PG |
Outdoor PoE switch AC 100~240V, 50/60Hz, 10A IN; 4*10/100/1000M PoE RJ45 ports, 2*10/100/1000M RJ45 ports. |
