Outdoor Smart Surveillance Box ESP0603 Network Switch Cabinet Pole Mounted
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Metal | Color: | White |
|---|---|---|---|
| Demension(L×W×H): | 700mm×420mm×250mm | Installation Method: | Pole Mount |
| Ip Rating: | IP55 | Working Temperature: | -20°C ~ 70°C |
| Humidity: | 0~95%(no Condensation) | Type: | Telecom Outdoor Cabinet |
| Application: | Telecommunication, Base Station, Electronic Ect, Outdoor Electronic Equipment, FTTX Network/Telecom | Door: | With One Front Door |
| Alarm Output: | 1 Channel, Dry-connector Output | Alarm Input: | 3 Channels, Dry-connector Input Channel 1 Is Default For The Door Open/closed Detected; |
Outdoor Smart Surveillance Box ESP0603 Network Switch Cabinet Pole Mounted
ESP0603 Network Switch Box Overview
It is a smart surveillance box.
It can be connected with network switch, IP camera, flash lamp, alarm lamp, infrared detector or other equipment. It can managed all connected equipment and with rich management function. Work with the platform software, It can send alarm message when input AC power off, device power off, optical fiber link down, IP camera link down.

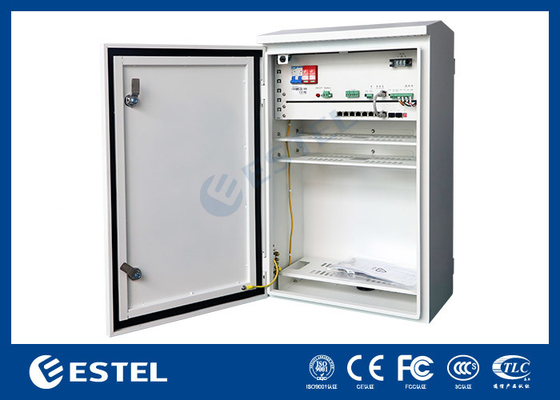

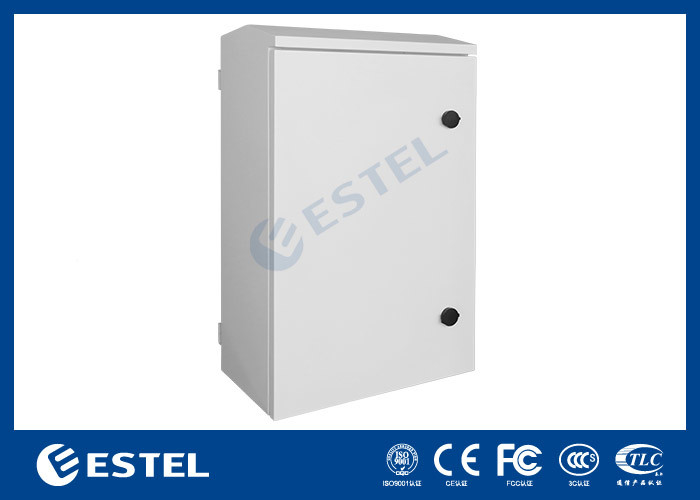

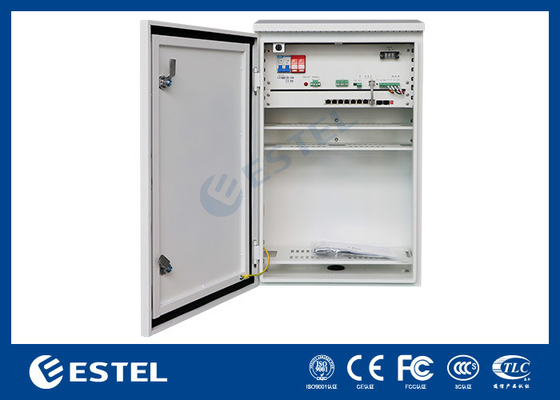

ESP0603 Network Switch Box Pictures
Feature
Provide 1 channel AC power input.
provide 3 channel DC 12V, can remote control and detect output of voltage and current.
With 8*10/100/1000M PoE downlink ports and 2*10/100/1000M SFP uplink ports.
Supports PoE Auto-check function, which is specially designed to solve the problems of equipment frozen. It can automatically detect the frozen PD equipment and restart the ports’ output of PSE, and restart the PD device. It greatly reduces the maintenance difficulty of engineering.
The box body adopts waterproof(protection level IP55), anti-rust treatment, suitable for long outdoor use;
Supports platform software, supports maps, multi product networking, remote control, alarm management, operational dimension, statistical analysis, etc.
Hardware specification
| Item |
Specification
|
| AC power IN | AC 100~240V, 50/60Hz, 10A |
| DC12V output |
DC12V output 3 channels, 3A, green terminal slot; Support for remote control of single channel; Support shows the single circuit voltage and the current value; |
| Network switch |
1~8 ports: 10/100/1000Base-T 30W PoE RJ45(IEEE802.3af/at) 9~10 ports: 1000Base-X SFP Working mode: Default mode: normal switch mode. VLAN mode: ports 1 ~ 8 are isolated from each other and can only communicate with the uplink port; restrain the network storm; turn off the flow control. |
| RS485 | Standard RS485 interface |
| RS232 | Standard RS232 interface |
| 10/100 Network port | 1*10/100 Base-TX |
| Alarm input |
3 channels, dry-connector input channel 1 is default for the door open/closed detected; |
| Alarm output | 1 channel, dry-connector output |
| Booster | 12V to 48V, can adjust voltage |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -40℃~85℃ |
| Humidity | 0~95%(no condensation) |
| Size(H×W×D) | 700mm×420mm×250mm |
| Material | metal |
| Colour | white |
| Net weight | 20kg |
Size
Ordering information
| Version |
Describe
|
| ESP0603 |
Smart surveillance box AC 100~240V, 50/60Hz, 10A IN; 8*10/100/1000M PoE RJ45 ports, 2*10/100/1000M SFP ports. VLAN working mode. 3*DC 12V Output (support for remote control, current and voltage detection); Smart controller unit; Work with platform software. |
"Outdoor switch box" typically refers to an electrical switch enclosure designed for outdoor environments. This box is primarily used to protect electrical switches, sockets, circuit breakers, and other related equipment from harsh weather conditions, dust, moisture, and other environmental factors. They are often equipped with strong waterproof, dustproof, and weather-resistant features to ensure the safety and reliable operation of the electrical system.
Here are some key points about outdoor switch boxes:
- 1. Waterproof and Dustproof Ratings: Many outdoor switch boxes have IP (Ingress Protection) ratings such as IP65, IP66, or IP68, indicating their waterproof and dustproof capabilities. Higher IP ratings mean better protection.
- 2. Materials and Construction: These boxes are usually made of metal (such as stainless steel or aluminum) or plastics (like ABS or polycarbonate) to ensure their strength and durability. The inside of the box may contain partitions or brackets for installing and securing electrical equipment.
- 3. Safety: Outdoor switch boxes often come with lockable doors or covers to prevent unauthorized access. Additionally, they may comply with specific safety standards and regulations, such as UL (Underwriters Laboratories) or CE (Conformité Européenne) certifications.
- 4. Applicability: These boxes are suitable for various outdoor environments, including industrial sites, construction sites, parks, street lighting, and other outdoor areas that require electrical equipment. They can be used to control power, lighting, security systems, and more.
- 5. Customizability: Some suppliers offer customizable outdoor switch boxes to meet the specific needs of a project. This may include different sizes, colors, materials, accessories, and installation options.
