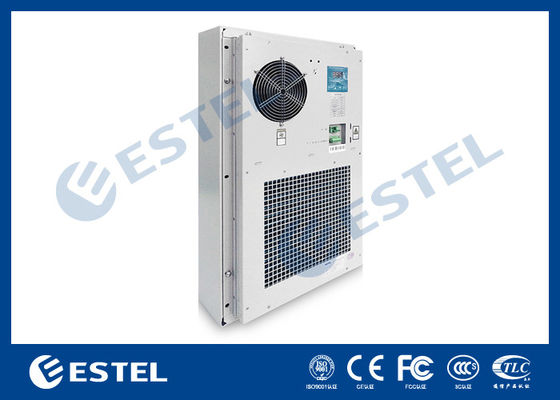

DC48V IP55 800W Cabinet Heat Exchanger / 80W/K Air To Air Heat Exchanger For Outdoor Telecom Enclosure

I'm Online Chat Now

DC48V IP55 800W Cabinet Heat Exchanger / 80W/K Air To Air Heat Exchanger For Outdoor Telecom Enclosure

China DC48V IP55 800W Cabinet Heat Exchanger / 80W/K  Air To Air Heat Exchanger For Outdoor Telecom Enclosure supplier
DC48V IP55 800W Cabinet Heat Exchanger / 80W/K  Air To Air Heat Exchanger For Outdoor Telecom Enclosure supplier DC48V IP55 800W Cabinet Heat Exchanger / 80W/K  Air To Air Heat Exchanger For Outdoor Telecom Enclosure supplier DC48V IP55 800W Cabinet Heat Exchanger / 80W/K  Air To Air Heat Exchanger For Outdoor Telecom Enclosure supplier DC48V IP55 800W Cabinet Heat Exchanger / 80W/K  Air To Air Heat Exchanger For Outdoor Telecom Enclosure supplier

Large Image :  DC48V IP55 800W Cabinet Heat Exchanger / 80W/K Air To Air Heat Exchanger For Outdoor Telecom Enclosure

Product Details:

Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC
Model Number: HE06-80SEH/01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: carton + foam + wooden case
Delivery Time: 10-15 working days
Supply Ability: 12,000 sets per month
Contact Now
Detailed Product Description
Cooling Method: Heat Pipe, Passive Cooling Installation Mode: Door Mounted
Cover Material: Galvanized Steel Protection Level: IP55
Color: Gray Rated Heat Exchange Capacity: 80W/K
Rated Heating Capacity: 300/500W (optional) Rated Input Voltage: DC48V
Rated Input Current: 2.0A Rated Input Power: 96W



DC48V IP55 800W Cabinet Heat Exchanger / 80W/K Air To Air Heat Exchanger For Outdoor Telecom Enclosure



DC48V IP55 800W Cabinet Heat Exchanger / 80W/K  Air To Air Heat Exchanger For Outdoor Telecom Enclosure

DC48V IP55 800W Cabinet Heat Exchanger / 80W/K  Air To Air Heat Exchanger For Outdoor Telecom Enclosure

DC48V IP55 800W Cabinet Heat Exchanger / 80W/K  Air To Air Heat Exchanger For Outdoor Telecom Enclosure

DC48V IP55 800W Cabinet Heat Exchanger / 80W/K  Air To Air Heat Exchanger For Outdoor Telecom Enclosure





Quick Details:



Place of Origin: Shenzhen, China (Mainland) Rated Heat Exchange Capacity: 80W/K
Brand Name: ESTEL Rated Heating Capacity:300/500W (optional)
Model: HE06-80SEH/01 Rated Input Voltage: DC48V
Product Name: Outdoor Cabinet Heat Exchanger Rated Input Current: 2.0A
Certification: ISO9001, CE, 3C, FCC, TLC Rated Input Power: 96W
Cover Material: galvanized steel Working Temperature: -20°C ~ +55°C
Color: gray Energy Efficiency Ratio (EER):8.3
Protection Level: IP55 Noise: 62dB
Installation Mode: door mounted Dimension W×D×H: 430×176×700 mm
Support OEM Cooling Method: heat pipe, passive cooling


1.Description


The HE06-80SEH/01 Heat Pipe Heat Exchanger is a full automation temperature control product. It uses intelligent controller to control the whole system of the heat exchanger. According to the variation of environment temperature, the intelligent controller can automatically detect, operate and record the whole system’s operating time, power consumption, event and historical data. It can store 100 event records and 1280 historical data records, and can enquire 256 days’ daily record information.


2.Application


The outdoor cabinet heat exchanger is widely applied in telecom cabinet, small and medium sized telecom room, UPS room, outdoor base station room, outdoor advertising machine, bank ATM banknote exchange room etc.


3.Specifications


(1)Technical Parameters



Model No. HE06-80SEH/01
Environmental Performance working environmental temperature -20°C ~ 55°C
storage working temperature -40°C ~ 70°C
working humidity ≤95%
Thermal Performance rated heat exchange capacity 80W/K
rated heating capacity 300/500W (optional)
Electrical Performance rated input current 2.0A
rated input power 96W
rated input voltage DC48V
Noise 62dB
Energy Efficiency Ratio (EER) 8.3




(2)Dimension Diagram: 430×176×700 mm (W×D×H)



DC48V IP55 800W Cabinet Heat Exchanger / 80W/K  Air To Air Heat Exchanger For Outdoor Telecom Enclosure



Size

Spec

Model No. A B C D E F G H I J K
80W/K Heat Exchanger HE06-80SEH/01(CW001) 300 401 450 600 672 700 133 176 649 379 430




(3) Door Hole-opening Diagram(mm)



DC48V IP55 800W Cabinet Heat Exchanger / 80W/K  Air To Air Heat Exchanger For Outdoor Telecom Enclosure



Size

Spec

Model No. L M N O P Q R
80W/K Heat Exchanger HE06-80SEH/01(CW001) 401 382 300 672 653 600 450




(4) Installation Diagram



DC48V IP55 800W Cabinet Heat Exchanger / 80W/K  Air To Air Heat Exchanger For Outdoor Telecom Enclosure






4. Features


(1)Strong adaptability
(2)High intelligence
(3)High precision
(4)High reliability
(5)The heat exchange capacity can be set according to need
(6)Low noise
(7)Low energy consumption
(8)With 4 way switching value detection
(9)With 1 way room air conditioner control
(10)Wide input voltage range: DC36 - 65V
(11)With dry contact alarm output
(12)Dust proof and water proof


5.System Principle Diagram



DC48V IP55 800W Cabinet Heat Exchanger / 80W/K  Air To Air Heat Exchanger For Outdoor Telecom Enclosure


6.Electrical Wiring Diagram



DC48V IP55 800W Cabinet Heat Exchanger / 80W/K  Air To Air Heat Exchanger For Outdoor Telecom Enclosure


Wiring Ports:


0V -48V: power supply input (voltage input: DC36 - 65V)
A+ B- SGND: RS485 communication interface
AL1 AL2: general alarm output
F+ F- : auxiliary direct ventilation control output (output voltage: DC36 - 65V)




7.System Control


7.1 Application


ET725 intelligent heat exchanger controller is a type of universal intelligent controller. It is controlled by highly integrated STC single chip microcomputer. The controller features perfect performance, easy and fast installation and setting, which is widely used in telecom cabinet, small and medium sized telecom room, UPS room, outdoor base station room, outdoor advertising machine, bank ATM banknote exchange room etc.




7.2 Main Technical Parameters


a.Three digits seven segment LED display measured temperature and set temperature;
b.Temperature measurement accuracy: 0.1 °C; display accuracy:0.1 °C;
c.Intelligently select cooling or heating mode;
d.Direct ventilation function with protective mode;
e.Power supply: DC48V;
f.Power consumption:≤5W;
g.Working environment: -30°C~70°C; <90%RH;
h.Installation method: guide rail, hanging;
i.Dimension:150mm×190mm×45mm (L×W×H)


7.3 Operating Instruction


ET725 uses English interfaces, which can be operated easily. All the operations can be realized with four buttons. The following is the control board diagram:



DC48V IP55 800W Cabinet Heat Exchanger / 80W/K  Air To Air Heat Exchanger For Outdoor Telecom Enclosure


8.Wiring Diagram



DC48V IP55 800W Cabinet Heat Exchanger / 80W/K  Air To Air Heat Exchanger For Outdoor Telecom Enclosure
