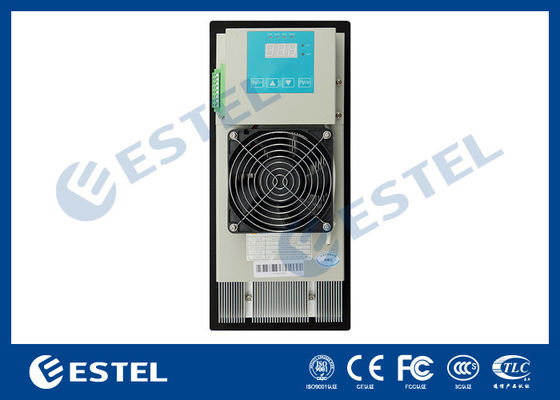

Environment-friendly 200W TEC Air Conditioner With Peltier Module, Small Size Light Weight

I'm Online Chat Now

Environment-friendly 200W TEC Air Conditioner With Peltier Module, Small Size Light Weight

China Environment-friendly 200W TEC Air Conditioner With Peltier Module, Small Size Light Weight supplier
Environment-friendly 200W TEC Air Conditioner With Peltier Module, Small Size Light Weight supplier Environment-friendly 200W TEC Air Conditioner With Peltier Module, Small Size Light Weight supplier Environment-friendly 200W TEC Air Conditioner With Peltier Module, Small Size Light Weight supplier Environment-friendly 200W TEC Air Conditioner With Peltier Module, Small Size Light Weight supplier Environment-friendly 200W TEC Air Conditioner With Peltier Module, Small Size Light Weight supplier Environment-friendly 200W TEC Air Conditioner With Peltier Module, Small Size Light Weight supplier

Large Image :  Environment-friendly 200W TEC Air Conditioner With Peltier Module, Small Size Light Weight

Product Details:

Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC
Model Number: TC06-20TEH/01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotialtion
Packaging Details: carton + foam + wooden case+pallet
Delivery Time: 10-15 working days
Supply Ability: 4,500 sets per month
Contact Now
Detailed Product Description
Rated Cooling Capacity: 200W Rated Heating Capacity: 600W
Rated Input Voltage: DC48V (43V~58V) Rated Input Current: 6.8A
Operating Environmental Temperature: -20°C-55°C Installation Mode: Side
Noise: 58dB MTBF: 70000h
Size (HxWxD): 400x180x206mm Cooling Method: Peltier
Rated Input Power: 330W





Environment-friendly 200W TEC Air Conditioner With Peltier Module, Small Size Light Weight





Environment-friendly 200W TEC Air Conditioner With Peltier Module, Small Size Light Weight



Environment-friendly 200W TEC Air Conditioner With Peltier Module, Small Size Light Weight



Environment-friendly 200W TEC Air Conditioner With Peltier Module, Small Size Light Weight



Environment-friendly 200W TEC Air Conditioner With Peltier Module, Small Size Light Weight



Quick Details:



Place of Origin: Shenzhen, China (Mainland) Rated Cooling Capacity : 200W
Brand Name: ESTEL Rated Heating Capacity: 600W
Model Number: TC06-20TEH/01 Dimension H×W×D: 400x180x206mm
Product Name: Thermoelectric (Peltier) Air Conditioner Rated Input Voltage: DC48V
Certification: ISO9001, CE, 3C, FCC, TLC Rated Input Current: 6.8A
IP Grade: IP55 Rated Input Power: 330W
Installation Mode: door mounted Working Temperature: -20°C ~ +55°C
Cooling Method: peltier Noise: 58dB


Payment & Shipping Terms:



Minimum Order Quantity: 1 set
Price: Depend on order quantity
Payment Terms: L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability: 4,500 sets per month
Delivery Time: 10-15 working days
Packaging Details: carton + foam + wooden case




1.Specifications
(1)Technical Parameters



Model No. TE06-20TEH/01
Rated Cooling Capacity 200W
Rated Heating Capacity 600W
Rated Input Voltage DC48V (43V~58V)
Rated Input Current 6.8A
Rated Input Power 330W
Installation Mode side
Noise 58dB
MTBF 70000h
Size (HxWxD) 400x180x206mm
Weight around 10Kg
Operating Ambient Temperature -20°C ~ 55°C



(2)Dimension Diagram



Environment-friendly 200W TEC Air Conditioner With Peltier Module, Small Size Light Weight


2.Description


The TC06-20TEH/01 TEC air conditioner consists of 6 parts: peltier module (including sealing and insulation material), cold end radiator, hot end radiator, cold end fan, hot end fan, monitoring module. When power supply is connected to the TEC, one side of the peltier conduct cooling, and the other side of the peltier conduct heating, the cool (heat) from which will diffuse to the surrounding environment through cold (hot) end radiators and fans. The cold end radiator and cod end fan constitute the inside circulation for cooling the cabinet internal environment, while the hot end radiator and hot end fan constitute outside circulation for heat radiation to the external environment.



Environment-friendly 200W TEC Air Conditioner With Peltier Module, Small Size Light Weight


TC06-20TEH/01 inside circulation and outside circulation air ventilation

Both the inside circulation and outside circulation air ducts adopt air inlet through middle fans and air outlet through radiators at the two sides.




3.Application


The Thermoelectric Cooler (Peltier Air Conditioner) is widely applied in outdoor telecom cabinet, outdoor battery cabinet, outdoor power cabinet, BTS cabinet, etc.


4.Feature


■ Not include refrigerant like freon, environment-friendly;
■ Small size and light weight;
■ The same component can meet heating and cooling requirement, no need to add extra heating film;
■ Very sensitive to temperature (quick cooling and quick heating);
■ No working noise, no shake; can work at any angle and zero gravity;
■ All components are solid structure, high reliability;
■ No need to worry about refrigerant leakage, corrosive liquid leakage, easy for maintenance.
■ Service life: up to 200,000 hours;



5. Control


5.1 Introduction


TC06-20TEH/01 air conditioner uses a universal intelligent controller ET724, which is controlled by highly integrated STC single chip microcomputer. The controller, with good performance, easy and convenient installation and set.




5.2 Technical Parameter


(1)Three digit seven segment digital tube displays measured temperature and set temperature.
(2)Temperature measurement accuracy: 0.1 °C; display accuracy: 0.1 °C.
(3)Intelligently choose cooling mode or heating mode.
(4)With protective direct ventilation function.
(5)Power Supply: DC48V.
(6)Power Consumption: ≤5W.
(7)Working Environment: -30°C~70°C; <90%RH.
(8)Installation method: guide rail, hanging.
(9)Size (L×W×H): 150mm×190mm×45mm




5.3 Operating Instruction


ET724 uses user-friendly interfaces, which can be operated easily. All the operations can be realized with four buttons. The following is the control board diagram:



Environment-friendly 200W TEC Air Conditioner With Peltier Module, Small Size Light Weight


control board diagram



(a) Query



Environment-friendly 200W TEC Air Conditioner With Peltier Module, Small Size Light Weight


Query content: heater working current, inner fan and outer fan operating rotation speed.


(b) Control Parameter Revision



Environment-friendly 200W TEC Air Conditioner With Peltier Module, Small Size Light Weight


Users can revise parameters after P05 in the table.


(c) Manual Cooling



Environment-friendly 200W TEC Air Conditioner With Peltier Module, Small Size Light Weight


(d) Manual Heating



Environment-friendly 200W TEC Air Conditioner With Peltier Module, Small Size Light Weight


6. Mainboard Wiring Diagram



Environment-friendly 200W TEC Air Conditioner With Peltier Module, Small Size Light Weight


7. Mainboard Wiring Picture



Environment-friendly 200W TEC Air Conditioner With Peltier Module, Small Size Light Weight


8. Our Partner



Environment-friendly 200W TEC Air Conditioner With Peltier Module, Small Size Light Weight


9. Packing



Environment-friendly 200W TEC Air Conditioner With Peltier Module, Small Size Light Weight
