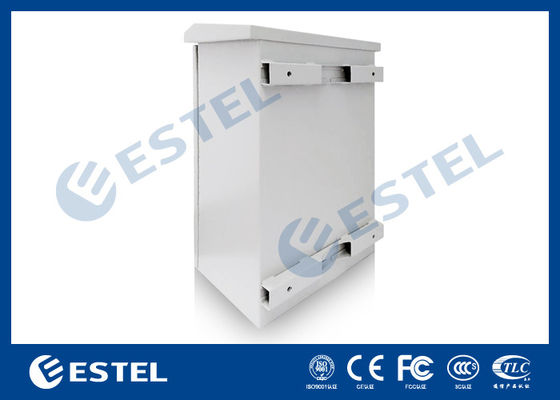

7U 19” Rack Outdoor Pole Mount Enclosure With Peltier Air Conditioner / Customizable Metal Pole Mounted Cabinet

China 7U 19” Rack Outdoor Pole Mount Enclosure With Peltier Air Conditioner / Customizable Metal Pole Mounted Cabinet supplier
7U 19” Rack Outdoor Pole Mount Enclosure With Peltier Air Conditioner / Customizable Metal Pole Mounted Cabinet supplier 7U 19” Rack Outdoor Pole Mount Enclosure With Peltier Air Conditioner / Customizable Metal Pole Mounted Cabinet supplier 7U 19” Rack Outdoor Pole Mount Enclosure With Peltier Air Conditioner / Customizable Metal Pole Mounted Cabinet supplier 7U 19” Rack Outdoor Pole Mount Enclosure With Peltier Air Conditioner / Customizable Metal Pole Mounted Cabinet supplier 7U 19” Rack Outdoor Pole Mount Enclosure With Peltier Air Conditioner / Customizable Metal Pole Mounted Cabinet supplier 7U 19” Rack Outdoor Pole Mount Enclosure With Peltier Air Conditioner / Customizable Metal Pole Mounted Cabinet supplier 7U 19” Rack Outdoor Pole Mount Enclosure With Peltier Air Conditioner / Customizable Metal Pole Mounted Cabinet supplier 7U 19” Rack Outdoor Pole Mount Enclosure With Peltier Air Conditioner / Customizable Metal Pole Mounted Cabinet supplier

Large Image :  7U 19” Rack Outdoor Pole Mount Enclosure With Peltier Air Conditioner / Customizable Metal Pole Mounted Cabinet

Product Details:

Place of Origin: Shen Zhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: ET453070P

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiation
Packaging Details: wooden case
Delivery Time: 15-20 working days
Payment Terms: T/T
Supply Ability: 10,000 sets per month
Contact Now
Detailed Product Description
External Dimension: W×D×H 450×300×700mm Internal Size: W×D×H 357×214×601mm (19”, 7U)
Material: Galvanized Steel Structure: Sandwich Structure, Double Wall, With Heat Insulation
Surface Treatment: Degreasing, Derusting, Rustproof Phosphating (or Galvanizing),anti-corrosion Outdoor Powder Coating Cabinet Lock: Anti-theft Three Point Lock
Cable Entry: At Cabinet Bottom Protection: High Stability, Anti-UV Radiation, Anti-corrosion, Integrated Top Cover, Good Seal, Water Proof, IP55
Grounding Protection: Copper Bar Cooling: 100W/K DC48V Peltier Air Conditioner And DC48V Fans
Alarm: Remote Communication Interfaces, Transmitting Alarms To Remote Control Center Installation Method: Pole Mounted
Cabinet Layout: One Compartment, For Installing 19” Equipment



7U 19” Rack Outdoor Pole Mount Enclosure With Peltier Air Conditioner / Customizable Metal Pole Mounted Cabinet



7U 19” Rack Outdoor Pole Mount Enclosure With Peltier Air Conditioner / Customizable Metal Pole Mounted Cabinet

7U 19” Rack Outdoor Pole Mount Enclosure With Peltier Air Conditioner / Customizable Metal Pole Mounted Cabinet

7U 19” Rack Outdoor Pole Mount Enclosure With Peltier Air Conditioner / Customizable Metal Pole Mounted Cabinet

7U 19” Rack Outdoor Pole Mount Enclosure With Peltier Air Conditioner / Customizable Metal Pole Mounted Cabinet







Quick Details:



Place of Origin: Shenzhen, China (Mainland)

External Size:

W×D×H 450×300×700mm

Internal Size:

W×D×H 357×214×601mm (19”, 7U)

Brand Name: ESTEL Structure: double wall, with insulation, sandwich structure.
Model: ET453070P Cabinet Layout: one compartment, for installing 19” equipment
Product Name: Pole Mount Enclosure Protection Level: IP55
Certification: ISO9001, CE, 3C, FCC, TLC, IP55 Cabinet Lock: anti-theft three point lock
Application: outdoor telecom base station Cable Entry: at cabinet bottom
Material: galvanized Steel Illumination: DC48V LED lamp
Heat Insulation: PEF Cabinet Door: one front door
Color: grey (support custom made) Cooling: DC48V Peltier Air Conditioner
Coating: anti-corrosion outdoor powder coating Installation: pole mounted





Payment & Shipping Terms:



Minimum Order Quantity: 1 set
Price: negotiation
Payment Terms: T/T, L/C, etc
Supply Ability: 10,000 sets per month
Delivery Time: 15-20 working days
Packaging Details: wooden case





1.Specifications


(1)Technical Parameters





Item Type Technical Parameter
Structure Dimension

External Size:

W×D×H 450×300×700mm

Internal Size:

W×D×H 357×214×601mm (19”, 7U)

Layout One compartment
Equipment Installation Method 19” standard rack
Door With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)
Material

1.Galvanized steel;

2.Double wall, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.

Structure Assembled
Ingress Protection IP55
Temperature Control Cooling DC48V TEC air conditioner
Lighting LED lamp 48V LED lamp
Temperature Temperature Working Temperature: -20°C ~ 55°C
Storage Temperature: -40°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1124 × (1±5%)W/m2





(2)Accessories List



No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1)External Size:

W×D×H 450×300×700mm

Internal Size:

W×D×H 357×214×601mm (19”, 7U)

(2) One compartment;

(3) With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)

(4) Material: galvanized steel; double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with 40mm PEF heat insulation between two walls.

2 Air Conditioner 1 Set

Cooling Capacity: 100W

Power Supply: DC48V

Model: TC06-10TEH/01

3 Fans 2 PC DC48V
4 Door Sensor 1 PC Used for controlling led lamp
5 LED lamp 1 PC DC48V
6 Package 1 Set Wooden Case



2. Description


2.1 Cabinet Structure: the cabinet use sandwich structure, outer plate is 1.5mm galvanized steel, inner plate is 0.8mm galvanized steel, with 40mm insulation between outer plate and inner plate.


2.2 Door and Door Lock: the cabinet includes one front door. The door opening angle is larger than 110° and the door limit device can limit the opening angle. The lock is theftproof three point lock, supports padlock.


3. Features
3.1 The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.

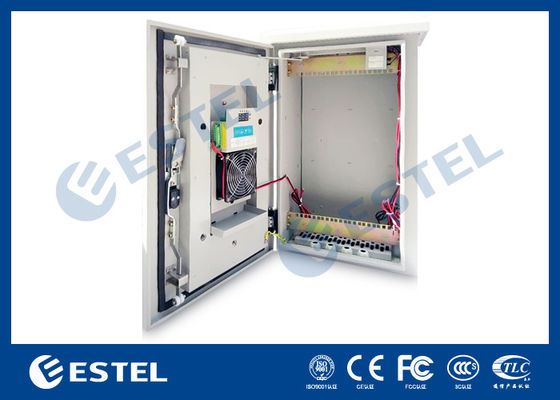

3.2 The cabinet use TEC air conditioner and fans for cooling.
3.3 The cabinet includes -48VDC LED lamp for illumination.
3.4 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There’re cable entrance holes individually for power cable, signal cable and optical cable at the bottom of cabinet.
3.5 All the cables, seal and insulation material used in the cabinet are made from flame retardant materials.
3.6 The cabinet use standard 19” rack installation method.


4. Technical Specs
4.1 Applicable environment conditions:
Environment temperature: -40°C ~ + 70°C;
Environment humidity (RH): ≤95% (at + 40°C);
Air pressure: 62kPa ~ 102kPa.
4.2 Material: galvanized steel.
4.3 Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.
4.4 Cabinet load bearing: ≥300kg.
4.5 Ingress protection: IP55.
4.6 Flame retardance: comply with GB5169.7 test A.
4.7 Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2X104M/500V(DC).
4.8 Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.
4.9 Mechanical strength: each surface can bear upright pressure>980N; after the door is open, its outer end can bear upright pressure >200N.




Dimension Diagram:

Cabinet External Size : 450mm×300mm×700mm (W×D×H).



7U 19” Rack Outdoor Pole Mount Enclosure With Peltier Air Conditioner / Customizable Metal Pole Mounted Cabinet




5. Applications


The ET453070P Pole Mounted Outdoor Telecom Cabinet is widely used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.


6. Cabinet Layout



7U 19” Rack Outdoor Pole Mount Enclosure With Peltier Air Conditioner / Customizable Metal Pole Mounted Cabinet

7U 19” Rack Outdoor Pole Mount Enclosure With Peltier Air Conditioner / Customizable Metal Pole Mounted Cabinet

7U 19” Rack Outdoor Pole Mount Enclosure With Peltier Air Conditioner / Customizable Metal Pole Mounted Cabinet

7U 19” Rack Outdoor Pole Mount Enclosure With Peltier Air Conditioner / Customizable Metal Pole Mounted Cabinet

7U 19” Rack Outdoor Pole Mount Enclosure With Peltier Air Conditioner / Customizable Metal Pole Mounted Cabinet

7U 19” Rack Outdoor Pole Mount Enclosure With Peltier Air Conditioner / Customizable Metal Pole Mounted Cabinet


7. Sensors Installation


LED illumination lamp, door sensor, fans are installed at the top part of the cabinet.




8. Cable Entrance
All outside cables use bottom entrance method.



7U 19” Rack Outdoor Pole Mount Enclosure With Peltier Air Conditioner / Customizable Metal Pole Mounted Cabinet


9. Grounding Protection
(1) The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
(2) The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.



7U 19” Rack Outdoor Pole Mount Enclosure With Peltier Air Conditioner / Customizable Metal Pole Mounted Cabinet


10. Theft Proof Design
10.1 Door lock theft proof design
(1) Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.



7U 19” Rack Outdoor Pole Mount Enclosure With Peltier Air Conditioner / Customizable Metal Pole Mounted Cabinet


(2) Three point lock



7U 19” Rack Outdoor Pole Mount Enclosure With Peltier Air Conditioner / Customizable Metal Pole Mounted Cabinet


10.2 Connection and Fastening
(1)Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
(2)Door hinges use inner hinge mode.



7U 19” Rack Outdoor Pole Mount Enclosure With Peltier Air Conditioner / Customizable Metal Pole Mounted Cabinet


10.3 Appearance and Surface Treatment


Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.


11. Cabinet Installation


Install the cabinet as the following diagram.



7U 19” Rack Outdoor Pole Mount Enclosure With Peltier Air Conditioner / Customizable Metal Pole Mounted Cabinet



12.Packing



The cabinet packing is wooden case in compliance with GB3873-83, damp proof and shock proof. The outside of the packing is painted with damp proof sign, shock proof sign, direction sign, etc.



7U 19” Rack Outdoor Pole Mount Enclosure With Peltier Air Conditioner / Customizable Metal Pole Mounted Cabinet
