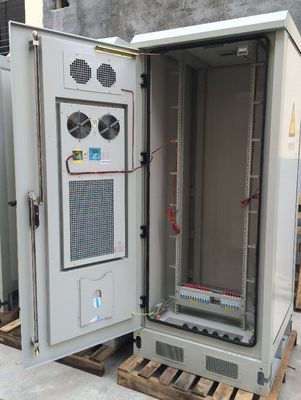

ET9090210,19 Inch Rack Custom Made Outdoor Telecom Cabinet/Enclosure With Heat Exchanger

China ET9090210,19 Inch Rack Custom Made Outdoor Telecom Cabinet/Enclosure With Heat Exchanger supplier
ET9090210,19 Inch Rack Custom Made Outdoor Telecom Cabinet/Enclosure With Heat Exchanger supplier ET9090210,19 Inch Rack Custom Made Outdoor Telecom Cabinet/Enclosure With Heat Exchanger supplier ET9090210,19 Inch Rack Custom Made Outdoor Telecom Cabinet/Enclosure With Heat Exchanger supplier ET9090210,19 Inch Rack Custom Made Outdoor Telecom Cabinet/Enclosure With Heat Exchanger supplier

Large Image :  ET9090210,19 Inch Rack Custom Made Outdoor Telecom Cabinet/Enclosure With Heat Exchanger

Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001:2008
Model Number: ET9090210

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden Case
Delivery Time: 15~20 Days
Payment Terms: T/T,L/C
Supply Ability: 80000 Sets Per Year
Contact Now
Detailed Product Description

ET9090210  Integrated Outdoor Telecom Cabinet With

Heat Exchanger
ET9090210,19 Inch Rack Custom Made Outdoor Telecom Cabinet/Enclosure With Heat Exchanger

1.Application

ET9090210 Integrated Outdoor Telecom Cabinet is mainly used in wireless communication base station, such as 3G, 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.

2. Features

(1)The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
(2)Cabinet cooling: fans and heat exchanger. (Other cooling option: air conditioner). MTBF≥50000h
(3)The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are entrance holes individually for power cable, signal cable and optical cable.
(4)All the cables used in the cabinet are made from flame retardant materials.



3. Technical Parameters

Item

  Type

 Technical Parameter

Structure

Dimension

External Dimension: H*W*D 2100*900*900mm

Internal Dimension: H*W*D 1800*800*800mm

Layout

1 compartment

Equipment Installation Method

19” rack

Door

With one front door , and special lock for outdoor cabinet

(support padlock)

Material

Galvanized steel ; 1.5mm thick outer plate, 0.8mm thick inner plate

Heat Insulation

There are heat insulation between inner wall and outer wall.

The insulation material is 20mm PEF

Structure

Assembled

Ingress Protection

IP55

Temperature Control

Cooling

DC48V heat exchanger and DC48V fans

Lightning Proof

Grade B lightning proof

Nominal: 60KA, Max.: 100KA

Lighting

LED lamp

48V LED lamp

Temperature

Temperature

Working Temperature: -40°C ~ +55°C





Storage Temperature: -50°C ~ + 70°C





Transport Temperature: -50°C ~ +70°C

Humidity

Relative Humidity

5% ~ 100%

Pressure

Air Pressure

62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)

Radiation Intensity

Solar Radiation Intensity

1120 ×(1±5%)W/m2



4.Accessories List

No.

Item

Quantity

Unit

Specs

1

Outdoor Telecom Cabinet

1

Set

(1) External Dimension: H*W*D 2100*900*900mm

   Internal Dimension: H*W*D 1800*800*800mm;

(2) One compartment: 19” standard installation rack;

(3)With one front door , and special lock for outdoor cabinet (support padlock);

(4) Material: galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate.

2

Heat exchanger

1

Set

Cooling capacity: 190W/K, DC48V;

Model: HE06-190SEH/01(CW031).

3

Auxiliary Direct

Ventilation Fans

2

PC

12038 DC48V

4

Environment Monitoring Unit

1

Set

1U, 19”,  Model: SM2400

5

Water Sensor

1

PC



6

Smoke Sensor

1

PC



7

Temperature and

Humidity Sensor

1

PC



8

Door Sensor

2

PC

One for controlling LED lamp, the other for open door alarm

9

LED Lamp

1

PC

DC48V

10

Power Distribution Unit

1

Set

Grade B Lightning Proof

AC Input: 63A/2P *1;

AC Output: 16A/1P*4;

DC Output: 16A/1P*4;

Input Voltage: AC220V.

11

Package

1

Set

Wooden Case
