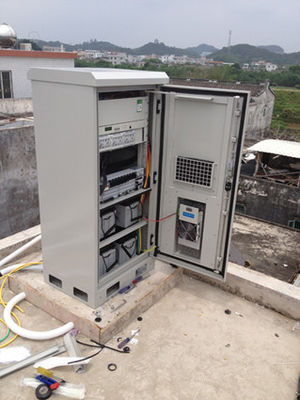

Outdoor Telecom Cabinet, IP55, with Air Conditioner or Heat Exchanger, Batteries, UPS

I'm Online Chat Now

Outdoor Telecom Cabinet, IP55, with Air Conditioner or Heat Exchanger, Batteries, UPS

China Outdoor Telecom Cabinet, IP55, with Air Conditioner or Heat Exchanger, Batteries, UPS supplier
Outdoor Telecom Cabinet, IP55, with Air Conditioner or Heat Exchanger, Batteries, UPS supplier Outdoor Telecom Cabinet, IP55, with Air Conditioner or Heat Exchanger, Batteries, UPS supplier

Large Image :  Outdoor Telecom Cabinet, IP55, with Air Conditioner or Heat Exchanger, Batteries, UPS

Product Details:

Place of Origin: China
Brand Name: ESTEL
Model Number: DDTE008

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: wooden case
Delivery Time: 20 days
Payment Terms: T/T, L/C
Supply Ability: 1000 sets per month
Contact Now
Detailed Product Description

DDTE008  One Compartment Outdoor Cabinet



                      Outdoor Telecom Cabinet, IP55, with Air Conditioner or Heat Exchanger, Batteries, UPS Outdoor Telecom Cabinet, IP55, with Air Conditioner or Heat Exchanger, Batteries, UPS

1.Application

The DDTE008 Outdoor Integrated Power Supply Cabinet is mainly used in wireless communication base station, such as 3G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.

2.Structure

The cabinet, made of galvanized steel, is divided into equipment compartments and battery compartments. The cabinet is easy for installation, and with good sealing performance.

Outdoor Telecom Cabinet, IP55, with Air Conditioner or Heat Exchanger, Batteries, UPS

Equipment Compartment: The upper part of the cabinet is equipment compartment, which is separated from the battery compartment with devision plate.

Battery Compartment: The battery compartment is used for installing batteries. The cabinet body has heat insulation foam, which can keep the temperature inside the cabinet. The cabinet includes exhaust device, which can release harmful gas generated by the batteries.

Cabinet Door and Lock: The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock. There’s open door alarm sensor, which works together with the environment monitoring unit.

Cabinet Dimension: W×D×H 450mm×600mmx1400mm.



3. Features



(1)The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
(2)The equipment compartment and battery compartment cooling: fans and air conditioner. (Other cooling option: heat exchanger). MTBF≥50000h
(3)The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There’re entrance holes individually for power cable, signal cable and optical cable.
(4)All the cables used in the cabinet are made from flame retardant materials.



4.Technical Specs



(1) Applicable environment conditions:
Environment temperature:  -40°C ~ + 60°C
Environment humidity (RH):  ≤95% (at + 40°C)
Air pressure: 70kPa ~ 106kPa
(2)Material: hot dip galvanized steel
(3)Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.
(4)Cabinet load bearing: ≥600kg
(5)Ingress Protection: IP55
(6)Flame retardance: comply with GB5169.7 test A
(7)Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2X104M/500V(DC).
(8)Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.
(9)Mechanical strength: each surface can bear upright pressure>980N; after the door is open, its outer end can bear upright pressure >200N.
