Home ProductsOne Compartment Outdoor Telecom Cabinet

Professional PDU IP55 Outdoor Telecom Cabinet Grey Color 1800X900X900 mm, 19” Waterproof Double Wall Heat Insulation

Professional PDU IP55 Outdoor Telecom Cabinet Grey Color 1800X900X900 mm, 19” Waterproof Double Wall Heat Insulation

China Professional PDU IP55 Outdoor Telecom Cabinet Grey Color 1800X900X900 mm, 19” Waterproof Double Wall Heat Insulation supplier

Large Image :  Professional PDU IP55 Outdoor Telecom Cabinet Grey Color 1800X900X900 mm, 19” Waterproof Double Wall Heat Insulation

Product Details:

Place of Origin: Shen Zhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: ET9090180-EQ

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiation
Packaging Details: wooden case
Delivery Time: 15-20 working days
Payment Terms: L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability: 5,600 sets per month
Detailed Product Description
Material: Galvanized Steel(support Custom Made) Color: Grey (support Custom Made)
Heat Insulation: PEF/EPS Protection Level: IP55
Coating: Anti-corrosion Outdoor Powder Coating Structure: Sandwich Structure, Double Wall, With Insulation,
Cabinet Lock: Anti-theft Three Point Lock External Size: H×W×D 1800×900×900mm
Cable Entry: At Cabinet Bottom Grounding Protection: Copper Bar
Cooling: DC48V Heat Exchanger And Fans

Product Description

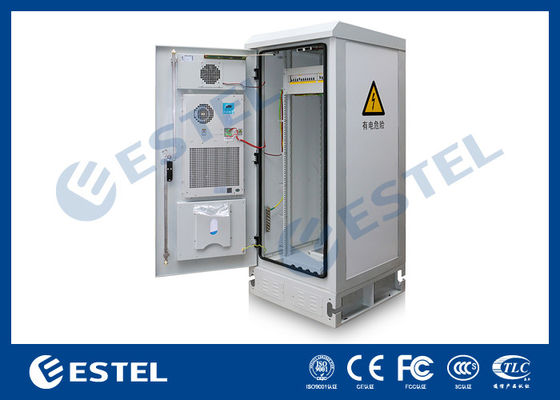

Professional PDU IP55 Outdoor Telecom Cabinet Grey Color 1800X900X900 mm



Quick Details:



Place of Origin: Shenzhen, China (Mainland) External Size H×W×D 1800×900×900mm

Brand Name: ESTEL

Structure: double wall, with insulation, sandwich structure

Model Number: ET9090180-EQ

Cabinet Layout: one compartment, for installing 19” equipment

Product Name: Outdoor Telecom Equipment Cabinet

Cabinet Lock: anti-theft three point lock
Certification: ISO9001, CE, 3C, FCC, TLC, IP55

Protection Level: IP55

Application: outdoor telecom base station Cable Entry: at cabinet bottom
Material: galvanized steel(support custom made) Illumination: DC48V LED lamp

Heat Insulation: PEF

Grounding Protection: copper bar

Color: grey (support custom made)

Cooling: DC48V heat exchanger and fans

Coating: anti-corrosion outdoor powder coating

Accessories Options: PDU



Payment & Shipping Terms:



Minimum Order Quantity: 1 set
Price: negotiation
Payment Terms: L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability: 5,600 sets per month
Delivery Time: 15-20 working days
Packaging Details: wooden case



1. Specifications

(1) Technical Parameters



Item Type Technical Parameter
Structure Dimension External Dimension: H×W×D 1800×900×900mm
Layout 1 compartment
Equipment Installation Method 19” rack
Door With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)
Material Galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate
Heat Insulation There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF.
Ingress Protection IP55
Temperature Control Cooling DC48V heat exchanger and DC48V fans
Lightning Proof Grade B lightning proof Nominal: 60KA, Max.: 100KA
Lighting LED lamp 48V LED lamps (immovable), with protective circuit breaker
Temperature Temperature Working Temperature: -40°C ~ +55°C
    Storage Temperature: -50°C ~ + 70°C
    Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2



(2)Accessories List



No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1) External Dimension: H×W×D 1800×900×900mm;

(2) 1 compartment: equipment compartment;

(3) With one front door , and anti-theft three point lock for outdoor cabinet (support padlock)

(4) Material: galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate;

(5) There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF.

2 Heat Exchanger 1 Set

Cooling capacity: 150W/K,

Power supply: DC48V;

Model: TC06-150SEH/01

3 Auxiliary Direct Ventilation Fans 1 PC 12025 DC48V
4 Door Sensor 1 PC For controlling LED lamp
5 LED Lamp 1 PC DC48V
6 Power Distribution Unit 1 Set

Grade B Lightning Proof AC Input: 63A/2P *1; AC Output: 16A/1P*4; DC Output: 16A/1P*4

Height: 4U

7 Package 1 Set Wooden Case



Cabinet Dimension



Professional PDU IP55 Outdoor Telecom Cabinet Grey Color 1800X900X900 mm, 19” Waterproof Double Wall Heat Insulation





2. Application



The ET9090180-EQ Outdoor Telecom Equipment Cabinet is mainly used in wireless communication base station, such as 3G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.



3. Features

  • The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
  • The equipment compartment cooling: fans and heat exchanger. (Other cooling option: air conditioner). MTBF≥50000h
  • The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are entrance holes individually for power cable, signal cable and optical cable.
  • All the cables used in the cabinet are made from flame retardant materials.



4. Description

4.1 Cabinet Material



The cabinet is made of galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm. There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF, heat insulation coefficient: 0.035W/m·K. The cabinet is assembled type.



4.2 Cabinet Structure



The cabinet includes 19” equipment installation rack. The cabinet includes one heat exchanger, installed on front door.



4.3 Cabinet Door and Lock



The cabinet includes one front door. The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock.



4.3.1 Door lock theft proof design



  • Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.



Professional PDU IP55 Outdoor Telecom Cabinet Grey Color 1800X900X900 mm, 19” Waterproof Double Wall Heat Insulation





  • Three point lock

Professional PDU IP55 Outdoor Telecom Cabinet Grey Color 1800X900X900 mm, 19” Waterproof Double Wall Heat Insulation





4.4 Cable Inlet

Feeder cable and other external cables all use bottom wiring method.





Professional PDU IP55 Outdoor Telecom Cabinet Grey Color 1800X900X900 mm, 19” Waterproof Double Wall Heat Insulation

4.5 Grounding Protection



  • The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
  • The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
  • Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.

Professional PDU IP55 Outdoor Telecom Cabinet Grey Color 1800X900X900 mm, 19” Waterproof Double Wall Heat Insulation



4.6 Connection and Fastening



  • Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
  • Door hinges use inner hinge mode.



Professional PDU IP55 Outdoor Telecom Cabinet Grey Color 1800X900X900 mm, 19” Waterproof Double Wall Heat Insulation



4.7 Appearance and Surface Treatment



Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.



5. Packing and Shipping



Professional PDU IP55 Outdoor Telecom Cabinet Grey Color 1800X900X900 mm, 19” Waterproof Double Wall Heat Insulation





Our Delivery Agent



The goods can be shipped by sea, by air, by courier, by land, by train, etc.

Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
