Home ProductsOne Compartment Outdoor Telecom Cabinet

Anti-Theft Three Point Lock BTS Outdoor Telecom Cabinet Low Power Consumption, Outdoor Power Enclosure

Anti-Theft Three Point Lock BTS Outdoor Telecom Cabinet Low Power Consumption, Outdoor Power Enclosure

China Anti-Theft Three Point Lock BTS Outdoor Telecom Cabinet Low Power Consumption, Outdoor Power Enclosure supplier

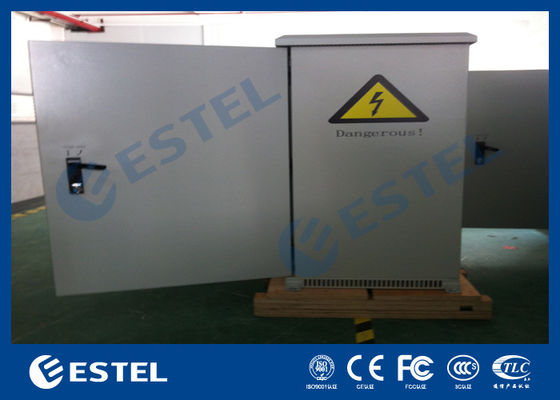

Large Image :  Anti-Theft Three Point Lock BTS Outdoor Telecom Cabinet Low Power Consumption, Outdoor Power Enclosure

Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: ET6045120

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden case
Delivery Time: 10-15 working days
Payment Terms: T/T, L/C, DA, DP, etc
Supply Ability: 9,000 sets per month
Detailed Product Description
Working Temperature: -40°C ~ +55°C Relative Humidity: 5% ~ 100%
Temperature Control: DC48V Fans Structure: Welded
Material: Galvanized Steel; Double Wall,1.5mm Thick Outer Plate, 1.0mm Thick Inner Plate External Dimension: W×D×H 600×450×1200mm
Internal Dimension: W×D×H 550×400×1050mm Model Number: ET6045120
Coating: Anti-corrosion Outdoor Powder Coating Cable Inlet: At Cabinet Bottom (support On The Side)
Layout: 1 Compartment, Divided Into Upper And Lower Compartment



Anti-Theft Three Point Lock BTS Outdoor Telecom Cabinet Low Power Consumption, Outdoor Power Enclosure



Quick Details



Place of Origin: Shenzhen, China (Mainland)

External Dimension: W×D×H 600×450×1200mm;

Internal Dimension: W×D×H 550×400×1050mm

Brand Name: ESTEL Structure: double wall, with insulation, sandwich structure
Model Number: ET6045120 Cabinet Layout: one compartment, for installing batteries
Product Name: Outdoor Power Cabinet Cabinet Lock: anti-theft three point lock
Certification: ISO9001, CE, 3C, FCC, TLC, IP55 Protection Level: IP55
Application: outdoor telecom base station Cable Inlet: at cabinet bottom
Material: galvanized steel Illumination: DC48V LED lamp
Heat Insulation: PEF Grounding Protection: copper bar
Color: grey (support custom made) Cooling: DC48V Fans
Coating: anti-corrosion outdoor powder coating Other Cooling Options: heat exchanger, and air conditioner



Payment & Shipping Terms



Minimum Order Quantity: 1 set
Price: negotiation
Payment Terms: T/T, L/C, DA, DP, etc
Supply Ability: 9,000 sets per month
Delivery Time: 10-15 working days
Packaging Details: wooden case



1. Specifications

(1) Technical Parameters



Item Type Technical Parameter
Structure Dimension

External Dimension: W×D×H 600×450×1200mm;

Internal Dimension: W×D×H 550×400×1050mm

Layout 1 compartment, divided into upper and lower compartments
Equipment Installation Method 19” rack
Door With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)
Material Galvanized steel; double wall,1.5mm thick outer plate, 1.0mm thick inner plate
Heat Insulation There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF.
Structure Welded
Ingress Protection IP55
Temperature Control Cooling DC48V fans
Power Supply Single phase AC220V
Lighting LED lamp 48V LED lamps (immovable), with protective circuit breaker
Temperature Temperature Working Temperature: -40°C ~ +55°C
    Storage Temperature: -50°C ~ + 70°C
    Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2



(2) Accessories List



No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1)External Dimension: W×D×H 600×450×1200mm;

Internal Dimension: W×D×H 550×400×1050mm

(2) One compartment: the upper part is equipment compartment, the lower part is battery compartment.

(3)With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)

(4) Material: galvanized steel; 1.5mm thick outer plate, 1.0mm thick inner plate. The insulation material is 20mm PEF

2 Auxiliary Direct Ventilation Fans 2 PC 12025 DC48V
3 Door Sensor 1 PC For controlling LED lamp on/off
4 LED Lamp 1 PC DC48V
5 Package 1 Set Wooden Case



2. Applications



The ET6045120 Outdoor Telecom Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.



4. Dimension Diagram



External Dimension: W×D×H 600×450×1200mm;

Internal Dimension: W×D×H 550×400×1050mm



Anti-Theft Three Point Lock BTS Outdoor Telecom Cabinet Low Power Consumption, Outdoor Power Enclosure

Anti-Theft Three Point Lock BTS Outdoor Telecom Cabinet Low Power Consumption, Outdoor Power Enclosure



Anti-Theft Three Point Lock BTS Outdoor Telecom Cabinet Low Power Consumption, Outdoor Power Enclosure













5. Details Display And Description

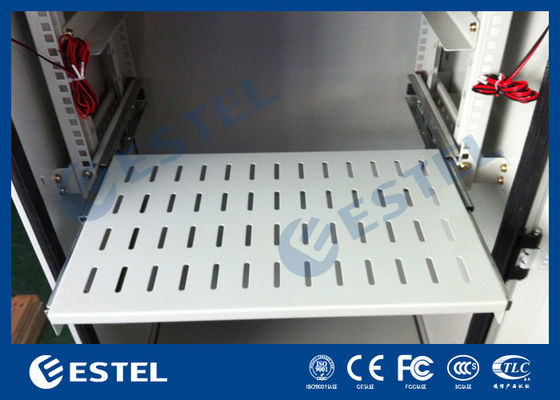

5.1 Equipment compartment tray with slide rail





Anti-Theft Three Point Lock BTS Outdoor Telecom Cabinet Low Power Consumption, Outdoor Power Enclosure

Anti-Theft Three Point Lock BTS Outdoor Telecom Cabinet Low Power Consumption, Outdoor Power Enclosure



5.2 Battery compartment



Anti-Theft Three Point Lock BTS Outdoor Telecom Cabinet Low Power Consumption, Outdoor Power Enclosure



5.3 Grounding copper bar and cable entrance hole



Anti-Theft Three Point Lock BTS Outdoor Telecom Cabinet Low Power Consumption, Outdoor Power Enclosure



5.4 Door limit



Anti-Theft Three Point Lock BTS Outdoor Telecom Cabinet Low Power Consumption, Outdoor Power Enclosure



5.5 Door lock theft proof design

  • Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.

Anti-Theft Three Point Lock BTS Outdoor Telecom Cabinet Low Power Consumption, Outdoor Power Enclosure





(2)Three point lock



Anti-Theft Three Point Lock BTS Outdoor Telecom Cabinet Low Power Consumption, Outdoor Power Enclosure

6 Leading Time



Usually about 15-20 days. The exact lead time need to be confirmed according to the quantity of order.



7. Packing and Shipping



The cabinet packing is wooden case in compliance with GB3873-83, damp proof and shock proof. The outside of the packing is painted with damp proof sign, shock proof sign, direction sign, etc.



Anti-Theft Three Point Lock BTS Outdoor Telecom Cabinet Low Power Consumption, Outdoor Power Enclosure



Our Delivery Agent



The goods can be shipped by sea, by air, by courier, by land, by train, etc.

Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
