|Cabinet Door:||One Front Door||Layout:||1 Compartment|
|Certificates:||CE||External Size:||H×W×D 2100×900×900mm|
|Material:||Galvanized Steel||Color:||Grey / Optional|
|Cooling System:||Air Condtioner||IP Rating:||IP55|

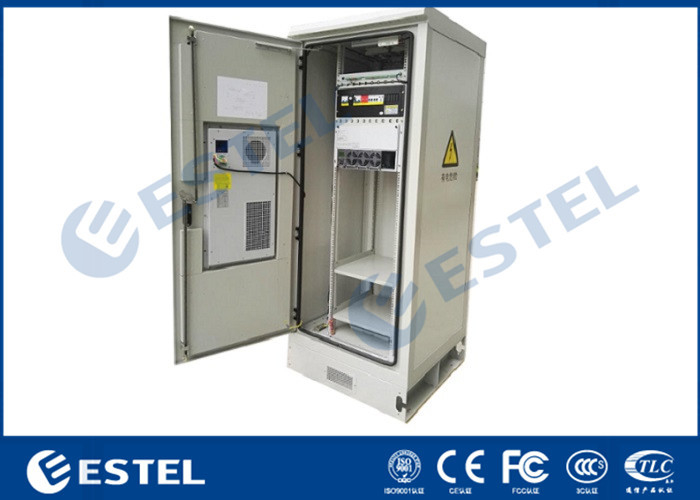

IP65 19 Inch Rack One Front Door 42U Outdoor Communication Cabinet
This one compartment cabinet is very popular in our market. It can support the installation of electronical equipments installed on 19 inch rack. It has 1 front doors for easily access. This cabinet is suitable to be used in telecommunication system,wireless network system for different applications.
|Structure||Dimension||External Dimension: 2100×900×900mm|
|Equipment Installation Method||19” rack .|
|Door||With 1 front door and anti-theft three point lock for outdoor cabinet (support padlock)|
|Mounting type||Floor mounting type|
|Temperature Control||Cooling||Air conditioner|
|Lighting||LED lamp||48V LED lamps (immovable), with protective circuit breaker|
|Temperature||Temperature||Working Temperature: -40°C ~ +55°C|
|Storage Temperature: -50°C ~ + 70°C|
|Transport Temperature: -50°C ~ +70°C|
|Humidity||Relative Humidity||5% ~ 100%|
|Pressure||Air Pressure||62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)|
|Radiation Intensity||Solar Radiation Intensity||1120 ×(1±5%)W/m2|
This outdoor telecom cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
4. Cabinet Description
4.1 Cabinet Material
The cabinet is made of galvanized steel, with double wall and the cabinet is assembled type.
4.2 Cabinet Door and Lock
The cabinet door uses embedded structure.
The door opening angle is larger than 110°and the door limit device can limit the opening angle.
The cabinet door lock is theftproof three point lock, supporting padlock.
There are 6 cabinet inlets at the bottom of the cabinet.
5. Cabinet Production
6. Our Delivery Agent
The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
