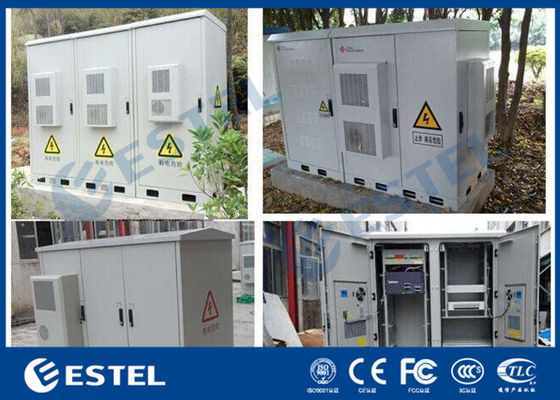

3 Bay Air Conditioner Cooling System Outdoor Base Station With Battery Layers And Rack Rails

China 3 Bay Air Conditioner Cooling System Outdoor Base Station With Battery Layers And Rack Rails supplier
3 Bay Air Conditioner Cooling System Outdoor Base Station With Battery Layers And Rack Rails supplier 3 Bay Air Conditioner Cooling System Outdoor Base Station With Battery Layers And Rack Rails supplier

Large Image :  3 Bay Air Conditioner Cooling System Outdoor Base Station With Battery Layers And Rack Rails

Product Details:

Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: 336240824050005

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 15-20 working days
Payment Terms: T/T, L/C,D/A, Western Union, Paypal, etc
Supply Ability: 8,000 sets per month
Contact Now
Detailed Product Description
Certificates: CE External Size: W*D*H 2400*800*2400mm
Material: Galvanized Steel Color: Grey/ Optional
Cooling System: Air Conditioner And Fan IP Rating: IP55


3 Bay Air Conditioner Cooling System Outdoor Base Station With Battery Layers And Rack Rails

1.Cabinet Instructions


  • Triple Bay Enclosure is 2400mm High and 2400mm Wide and 800mm Deep. It comes with 2 Sets of Standard 19″ Racking Rails and 4 battery layers.
  • Standard Racking Hub that will allow you side by side.This triple bay enclosures are the ultimate choice for outdoor racking requirements.
  • For those who need more than just standard enclosure, this series can also offer a truly the security of customized solution with lots of available options.
  • It provides a climate-controlled environment for any electronic equipment, electrical load panels and cable entry solutions.
  • It provides a secure,climate controlled environment for any electronic equipment.


2.Cabinet Parameters


Item Parameters
External dimentions W*D*H 2400*800*2400mm
Color Green color
Material Galvanized steel
Surface process Zinc Die Powd er-coated
Door type Three front doors
Door lock Anti-theft three point lock
Cable Inlets Individual cable entry holes from bottom of the cabinet
IP protection IP55 protection level
Mounting racks 2 sets of adjustable 19″ racking rails,4 battery layers
Cooling system air conditione rs
Accessaries The door sensor, water sensor, smoke sensor, temperature and humidity sensor optional
Flame retardant comply with GB5169.7 test A
CE certificates Support
Mounting type Floor mounting type
Package Wooden cas



3.Cabinet Advantage



1) The construction cycle is short, the area occupies less, the scope of application is more extensive, which is conducive to reducing the construction cost.

2) High integration and compact construction are ideal for installation and post-migration.

3) Each individual module is designed with an independent environmental monitoring and control system, which uses more reliable and intelligent, is at least 30% more energy efficient than conventional base stations, and significantly reduces air pollution emissions.

4) Independently equipped with a standard 19-inch power environment monitoring module, remote real-time monitoring and monitoring and monitoring intervention sits on equipment in the base station, and remote maintenance and detection capabilities can be designed to significantly reduce late-stage operational maintenance costs.

4.Cabinet Application

Provide a secure,climate controlled environment for any electrionic equipment.

  • Wireless/Broadband
  • Telecommunications
  • Base station
  • Trailer-based communications
  • Fiber Optics
  • Military
  • Flexible and Scalable


5.Cabient Detail Instructions

5.1 Cable Entry Holes

There are entrance holes individually for feeder cable and other external cables.

5.2 ​Connection And Fastening



  • Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
  • Door hinges use inner hinge mode.

3 Bay Air Conditioner Cooling System Outdoor Base Station With Battery Layers And Rack Rails



5.3 Cabinet Door



The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock. Each cabinet door include open door sensor, working together with the environment monitoring unit.


6. Cooling System


This three bay cabinets has 3 units air conditoners installed on the front doors.220VAC Air Conditioner

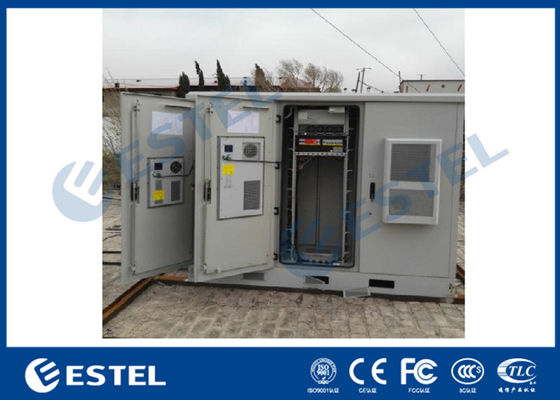

7. Product Application
3 Bay Air Conditioner Cooling System Outdoor Base Station With Battery Layers And Rack Rails


8.Our Delivery Agent



The goods can be shipped by sea, by air, by courier, by land, by train, etc.

Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
