HUAWEI Single Wall High Reliablity Outdoor Power Cabinet / IP55 UPS Battery Enclsosure / Outdoor Telecom Cabinet

I'm Online Chat Now

HUAWEI Single Wall High Reliablity Outdoor Power Cabinet / IP55 UPS Battery Enclsosure / Outdoor Telecom Cabinet

China HUAWEI  Single Wall High Reliablity Outdoor Power Cabinet / IP55 UPS Battery Enclsosure / Outdoor Telecom Cabinet supplier
HUAWEI  Single Wall High Reliablity Outdoor Power Cabinet / IP55 UPS Battery Enclsosure / Outdoor Telecom Cabinet supplier HUAWEI  Single Wall High Reliablity Outdoor Power Cabinet / IP55 UPS Battery Enclsosure / Outdoor Telecom Cabinet supplier

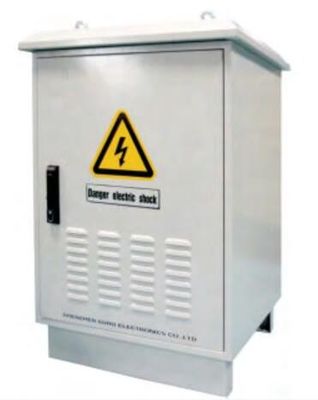

Large Image :  HUAWEI Single Wall High Reliablity Outdoor Power Cabinet / IP55 UPS Battery Enclsosure / Outdoor Telecom Cabinet

Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001:2008
Model Number: ET8070133-UP

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden Case
Delivery Time: 15~20 Days
Payment Terms: T/T
Supply Ability: 10000 Sets Per Year
Contact Now
Detailed Product Description
External Dimension: W×D×H: 800mm×700mm×1330mm Cabinet Layout: One Compartment, For Installing 19” Power Equipment And Battery
Material: Galvanized Steel, Single Wall Color: Grey (support Custom Made,such As Green Etc)
Coating: Anti-corrosion Outdoor Powder Coating Cooling System: DC48V Fan, 2pcs
Cabinet Lock: Anti-theft Three Point Lock Cable Entry: At Cabinet Bottom
Illumination: DC48V LED Lamp Grounding Protection: Copper Bar
Accessories Options: Accessories Options: PDU, Rectifier System, Environment Monitoring System

HUAWEI Single Wall High Reliablity Outdoor Power Cabinet / IP55 UPS Battery Enclsosure / Outdoor Telecom Cabinet



Summary



● The outdoor UPS cabinet refers to a cabinet made of metal or non-metal material, directly under the influence of the weather, and does not allow unauthorized operators to access. Base station equipment, power supply, battery, temperature control equipment, transmission equipment and other ancillary equipment can be installed in the cabinet, which can provide reliable mechanical and environmental protection for the normal operation of internal equipments.







Application



This UPS is commonly used in the corner of the city, remote roads, mountains, bad environment, such as high temperature(+50℃)/low temperature (-40℃), severe dust, moisture, rain, mist erosion,very poor power quality (voltage long-term higher than 260V or less than 160V, frequency abnormal change) in the area.



This communication marginal network outdoor UPS is special for wireless communication system of outdoor micro cellular base station and design of a high-performance integrated outdoor online uninterrupted power supply system, has the very high technology advancement and practicability.





Feature



●Short construction period, less land occupation, broader application and lower construction cost

● High integration, compact structure, easy installation and migration on later stage

● High-performance cooling solution

● Anti-theft three-point outdoor cabinet lock, excellent keyhole protection device

● Perfect air duct design to avoid cold and hot gas mixed flow effectively

● Professional outdoor anti- corrosion powder coating, strong weather resistance





Technics



● The cabinet material is high quality steel plate, which is made by the world's leading AMAD CNC equipment, with exquisite workmanship and precise size. The main frame of the cabinet is made by welding, ensuring the whole cabinet is strong and durable. The internal structure and all kinds of accessories are assembled in the way of assembling, and the application is flexible. The cabinet body and its internal accessories are all pretreated by acid washing and phosphating, and then the special molding powder is used for electrostatic spraying, so as to prevent corrosion and rust.





Technical Parameters





Configuration Item Technical Parameter
Cabinet Body Model ET8070133-UP
Size External Size W×D×H: 800mm×700mm×1330mm
Component The whole cabinet is composed of three parts: the top cover, the cabinet body and the base. The installation method is floor mount.
Material Galvanized steel, single wall, 1.5mm thickness.
Structure
  • Sinle wall
  • One front door, hidden zinc alloy hinge
  • Outdoor special steel lock, lock cylinder assembled with protective cover, lock body assembled with three-point lock device, can support padlock
  • Door stopper / wind lock is installed on the inside of the cabinet door
  • Grooved door with seal rubber strip, attached to the inner side of the door, waterproof and dustproof
  • Include standard 19“ rack and battery shelf inside the cabinet, high universality. Special rack or electrical lining board inside the cabinet can be custom made.
  • Equipped with cable manager
  • Cable inlets at the bottom of cabinet
Surface Treatment Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification
Color Outdoor polyester light grey RAL 7035 coating or custom made
Ingress Protection IP55
Working Temperature -40°C~+75°C
Cooling Method Compressor Air Conditioner /
Heat Exchanger /
TEC Air Conditioner /
Fan DC48V, 2PCS, including temperature ajustable controller
Monitoring Monitoring Unit /
Smoke Sensor /
Vibration Sensor /
Water Sensor /
Door Sensor /
Temperature & Humidity Sensor /
Other /
Power Distribution Unit AC Type

Grade B Lightning Proof

AC Input: 63A/2P ×1;

AC Output: 16A/1P×4;

AC Output: 10A/1P×4. Including one maintenance socket

UPS   2KVA
Battery   100Ah,12V, 8PCS
Other Illumination LED light, 48VDC





2D Drawing



HUAWEI  Single Wall High Reliablity Outdoor Power Cabinet / IP55 UPS Battery Enclsosure / Outdoor Telecom Cabinet

HUAWEI  Single Wall High Reliablity Outdoor Power Cabinet / IP55 UPS Battery Enclsosure / Outdoor Telecom Cabinet






HUAWEI  Single Wall High Reliablity Outdoor Power Cabinet / IP55 UPS Battery Enclsosure / Outdoor Telecom Cabinet

HUAWEI  Single Wall High Reliablity Outdoor Power Cabinet / IP55 UPS Battery Enclsosure / Outdoor Telecom Cabinet
