Rainproof Dust-proof Thermostatic Outdoor Telecom Cabinet With Air To Air Heat Exchanger, Cable Entry, Grounding Bar

China Rainproof Dust-proof Thermostatic Outdoor Telecom Cabinet With Air To Air Heat Exchanger, Cable Entry, Grounding Bar supplier
Rainproof Dust-proof Thermostatic Outdoor Telecom Cabinet With Air To Air Heat Exchanger, Cable Entry, Grounding Bar supplier Rainproof Dust-proof Thermostatic Outdoor Telecom Cabinet With Air To Air Heat Exchanger, Cable Entry, Grounding Bar supplier Rainproof Dust-proof Thermostatic Outdoor Telecom Cabinet With Air To Air Heat Exchanger, Cable Entry, Grounding Bar supplier Rainproof Dust-proof Thermostatic Outdoor Telecom Cabinet With Air To Air Heat Exchanger, Cable Entry, Grounding Bar supplier Rainproof Dust-proof Thermostatic Outdoor Telecom Cabinet With Air To Air Heat Exchanger, Cable Entry, Grounding Bar supplier Rainproof Dust-proof Thermostatic Outdoor Telecom Cabinet With Air To Air Heat Exchanger, Cable Entry, Grounding Bar supplier Rainproof Dust-proof Thermostatic Outdoor Telecom Cabinet With Air To Air Heat Exchanger, Cable Entry, Grounding Bar supplier

Large Image :  Rainproof Dust-proof Thermostatic Outdoor Telecom Cabinet With Air To Air Heat Exchanger, Cable Entry, Grounding Bar

Product Details:

Place of Origin: Shen Zhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: ET7070150-UP

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiation
Packaging Details: wooden case
Delivery Time: 15-20 working days
Payment Terms: T/T
Supply Ability: 8,000 sets per month
Contact Now
Detailed Product Description
External Dimension: W×D×H 1500×700×700mm Material: Galvanized Steel
Structure: Sandwich Structure, Double Wall, With Heat Insulation Cabinet Load Bearing: ≥600kg
Surface Treatment: Degreasing, Derusting, Rustproof Phosphating (or Galvanizing),anti-corrosion Outdoor Powder Coating Cabinet Lock: Anti-theft Three Point Lock
Cable Entry: At Cabinet Bottom Protection: High Stability, Anti-UV Radiation, Anti-corrosion, Integrated Top Cover, Good Seal, Water Proof, IP55
Grounding Protection: Copper Bar Cooling: 100W/K DC48V Heat Exchanger And DC48V Fans
Alarm: Remote Communication Interfaces, Transmitting Alarms To Remote Control Center Relative Humidity: 5% ~ 100%

Rainproof Dust-proof Thermostatic Outdoor Telecom Cabinet With Air To Air Heat Exchanger, Cable Entry, Grounding Bar



Rainproof Dust-proof Thermostatic Outdoor Telecom Cabinet With Air To Air Heat Exchanger, Cable Entry, Grounding Bar





Quick Details:





Place of Origin: Shenzhen, China (Mainland)

External Size H×W×D 1500×700×700mm

Internal Size H×W×D 1250×600×600mm

Brand Name: ESTEL Structure: double wall, with insulation, sandwich structure
Model Number: ET7070150-UP Cabinet Layout: one compartment,the upper part for installing 19” equipment, the lower part for installing battery
Product Name: Outdoor Power Cabinet Cabinet Lock: anti-theft three point lock
Certification: ISO9001, CE, 3C, FCC, TLC, IP55 Protection Level: IP55
Application: outdoor telecom base station Cable Entry: at cabinet bottom
Material: galvanized steel Illumination: DC48V LED lamp
Heat Insulation: PEF Grounding Protection: copper bar
Color: grey (support custom made) Cooling: 100W/K DC48V heat exchanger and DC48V fans
Coating: anti-corrosion outdoor powder coating

Working Temperature: -40°C ~ +55°C





Payment & Shipping Terms:



Minimum Order Quantity: 1 set
Price: negotiation
Payment Terms: T/T  etc
Supply Ability: 6,000 sets per month
Delivery Time: 15-20 working days
Packaging Details: wooden case





1. Applications


The ET7070150-UP Outdoor Telecom Cabinet is mainly used in wireless communication base station:


(1) Access/transmission switching station


(2) Emergency communication/transmission


(3) 4G system


(4) Communication/network integrated service


(5) The cabinet is suitable for outdoor environment, such as road side, park, building roof, mountain area, flat ground, etc. The cabinet can be installed with base station equipments, power supply equipments, batteries, temperature control equipments, transmission equipments and other equipments, or the cabinet can reserve installation space and heat exchange capacity for the above equipments, providing reliable mechanical and environmental protection for normal operation of the internal equipments.



2. Advantages


(1)High integrated
High compatibility, high integration
Supporting multiple equipments, good appearance



(2)Standard compartment temperature control
Multiple temperature control modes optional
Energy saving and high efficiency



(3)Flexible structure
Compartment type design
Flexible assembly
Two compartments / multiple compartments



(4) Fast deployed
Can be assembled, easy for transportation
Modular assembly, short installation time
Suitable for road side station and building top station. After being fixed on the ground, the cabinet will start to work.



(5) Theft - proof
Inside installation, inside fixing, no outer screws
Anti-theft three point lock
Inside door hinges, multiple protection
Embedded cabinet door, theft proof



3. Specifications


(1) Technical Parameters



Item Type Technical Parameter
Structure Dimension

External Size H×W×D 1500×700×700mm

Internal Size H×W×D 1250×600×600mm

Layout One compartment,the upper part for installing 19” equipment, the lower part for installing battery
Equipment Installation Method 19” rack, battery tray
Door With one front door and one back door, and anti-theft three point lock for outdoor cabinet (support padlock)
Material Galvanized steel; double wall
Heat Insulation There are heat insulation between inner wall and outer wall.
Structure Assembled
Ingress Protection IP55
Temperature Control Cooling DC48V heat exchanger
Lighting LED lamp 48V LED lamps (immovable), with protective circuit breaker
Temperature Temperature Working Temperature: -40°C ~ +55°C
    Storage Temperature: -50°C ~ + 70°C
    Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2




(2) Accessories List



No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1) External Size H×W×D 1500×700×700mm

Internal Size H×W×D 1250×600×600mm

(2)One compartment,the upper part for installing 19” equipment, the lower part for installing battery

(3)With one front door one back door, and anti-theft three point lock for outdoor cabinet (support padlock)

(4)Cabinet left side, right side and back: sandwich structure panel, outer plate: 0.5mm galvanized steel, inner plate: 0.5mm galvanized steel, insulation: 45mm flame retarded EPS.

(5) Cabinet door and base: outer plate: 1.5mm galvanized steel , inner plate: 0.8mm galvanized steel, insulation: 40mm PEF.

(6) Cabinet roof: sandwich structure panel (outer plate: 0.5mm galvanized steel, inner plate: 0.5mm galvanized steel, insulation: 45mm flame retarded EPS. ) + 1.0mm galvanized steel.

2 Heat Exchanger 1 Set

Heat Exchange Capacity: 100W/K,

Power Supply:DC48V

3 Door Sensor 1 PC For controlling LED lamp on/off
4 LED Lamp 1 PC DC48V
5 Package 1 Set Wooden Case


Cabinet Dimension Diagram

Rainproof Dust-proof Thermostatic Outdoor Telecom Cabinet With Air To Air Heat Exchanger, Cable Entry, Grounding Bar



4.Features


(1)The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.


(2)Cabinet cooling: heat exchanger. (Other cooling option: air conditioner and fans). MTBF≥50000h


(3)The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are entrance holes individually for power cable, signal cable and optical cable.


(4)All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials.


(5)The cabinet includes 19” standard installation rack.


(6)Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.


(7)Cabinet load bearing: ≥600kg


(8)Flame retardance: comply with GB5169.7 test A


(9)Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2×104M/500V(DC).


(10)Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.


(11)Mechanical strength: each surface can bear upright pressure >980N; after the door is open, its outer end can bear upright pressure >200N.



5.Description


5.1 Cabinet Material
The cabinet is made of galvanized steel, with double walls, there are heat insulation between inner wall and outer wall. The insulation material PEF, heat insulation coefficient: 0.035W/m·K. The cabinet is assembled type.


5.2 Cabinet Structure

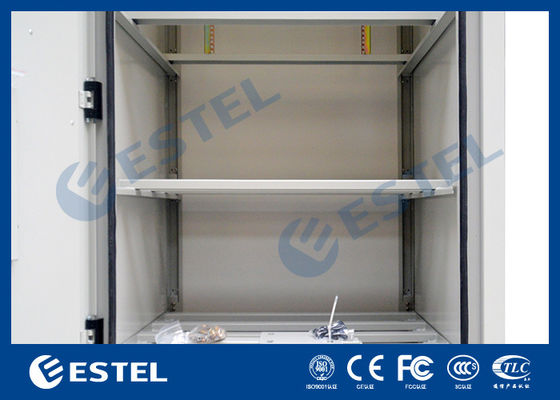

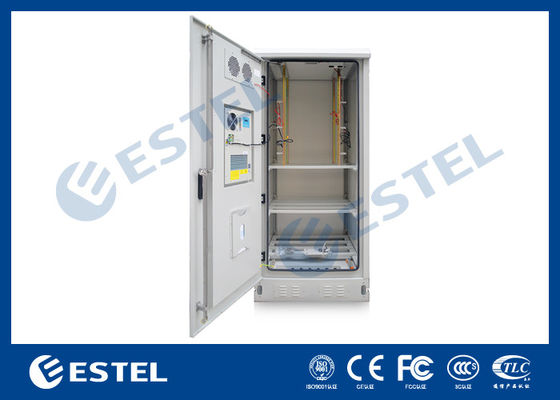

The cabinet includes 19” equipment installation rack. The cabinet includes one heat exchanger, installed on front door.


5.3 Cabinet Door and Lock
The cabinet includes one front door. The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock.


5.3.1 Door lock theft proof design
(1)Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.



Rainproof Dust-proof Thermostatic Outdoor Telecom Cabinet With Air To Air Heat Exchanger, Cable Entry, Grounding Bar


(2)Three point lock

Rainproof Dust-proof Thermostatic Outdoor Telecom Cabinet With Air To Air Heat Exchanger, Cable Entry, Grounding Bar

Rainproof Dust-proof Thermostatic Outdoor Telecom Cabinet With Air To Air Heat Exchanger, Cable Entry, Grounding Bar



5.4 Cable Inlet


Feeder cable and other external cables all use bottom wiring method.



Rainproof Dust-proof Thermostatic Outdoor Telecom Cabinet With Air To Air Heat Exchanger, Cable Entry, Grounding Bar


5.5 Grounding Protection


(1)The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.


(2)The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.


(3)Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.



Rainproof Dust-proof Thermostatic Outdoor Telecom Cabinet With Air To Air Heat Exchanger, Cable Entry, Grounding Bar


5.6 Connection and Fastening


(1)Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.


(2)Door hinges use inner hinge mode.



Rainproof Dust-proof Thermostatic Outdoor Telecom Cabinet With Air To Air Heat Exchanger, Cable Entry, Grounding Bar


5.7 Appearance and Surface Treatment


Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.
