ET6575170A-30U Air Conditioner Cooling Outdoor Cabinet With Power Distribution Unit

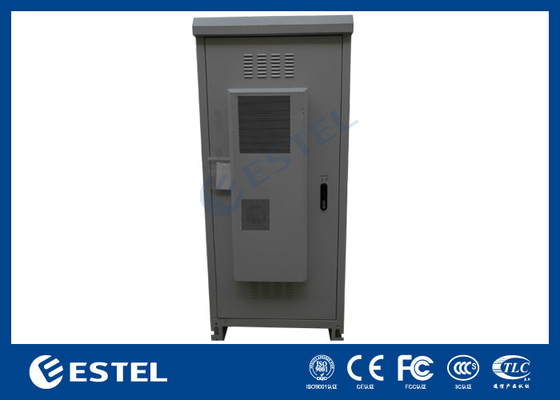

Large Image : ET6575170A-30U Air Conditioner Cooling Outdoor Cabinet With Power Distribution Unit

Product Details:

Place of Origin:	China
Brand Name:	ESTEL
Certification:	ISO9001:2008
Model Number:	ET6575170A-30U

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Wooden Case
Delivery Time:	15~20 Days
Payment Terms:	T/T,L/C
Supply Ability:	80000 Sets

Contact Now

Detailed Product Description

Material:	Metal Or Customized	External Size:	W650mm×D750mm×H1700mm
IP Grade:	IP55	Cooling:	2000W Air Conditioner
Cabinet Lock:	Three Point Lock	Installation Options:	Floor Mounted
Hinge:	Inner Hinge	Maintenance:	One Front Door, Front Maintenance
Cable Routing:	Cable In And Out From The Bottom Of Cabinet	Insulation:	20mm PEF

ET6575170A-30U Air Conditioner Cooling Outdoor Cabinet With Power Distribution Unit

1. ET6575170A-30U Cabinet Application Scope

The ET6575170A-30U outdoor cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.

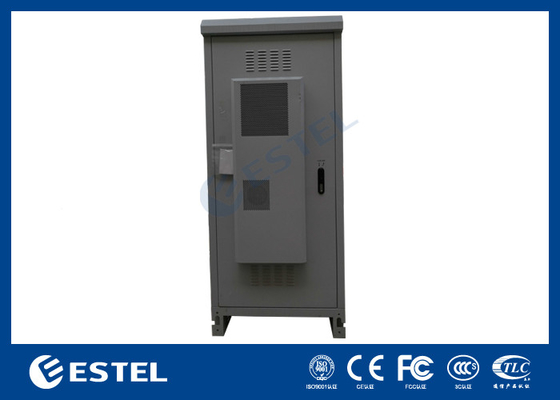

2. Air Conditioner Cabinet Picture

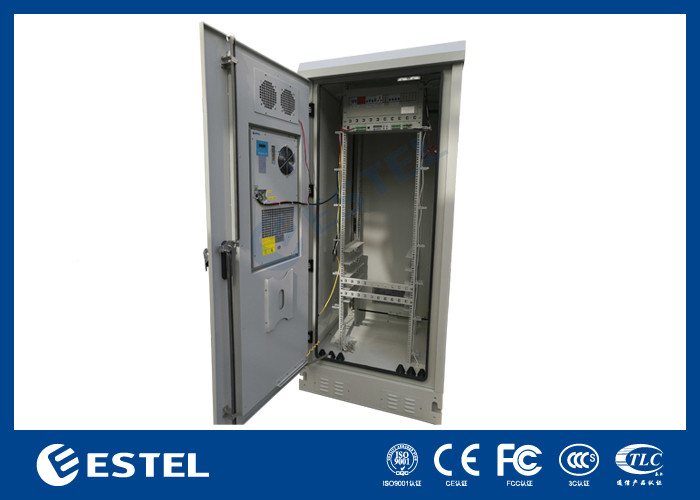

3. Cabinet With Power Distribution Unit Structure

The outdoor rack include one compartment, external size is W650mm×D750mm×H1700mm, 19inch, 30U space, and the size can be customized based on client's request.

4. Outdoor Cabinet Door nd Lock

The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is Anti-theft three-point locking system, supporting padlock.

5. Outdoor Cabinet With Air Conditoner Features

The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.

The cabinet cooling use two air conditioners, which work in alternation to continuously keep thermostatic inside the cabinet.

The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. At the bottom of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.

All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials.

The cabinet uses assembled structure, easy for installation.

The cabinet includes 19” standard installation rack.

The cabinet includes stainless steel pole, for user to installing antenna.

6. Outdoor Cabinet Technical Specs

(1) Applicable environment conditions:

Environment temperature: -40°C ~ + 70°C

Environment humidity (RH): ≤95% (at + 40°C)

Air pressure: 62kPa ~ 102kPa

(2) Material: quality galvanized steel

(3) Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.

(4) Cabinet load bearing: ≥600kg

(5) Ingress protection: IP55

(6) Flame retardance: comply with GB5169.7 test A

(7) Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2X104M /500V(DC).

(8) Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.

(9) Mechanical strength: each surface can bear upright pressure＞980N; after the door is open, its outer end can bear upright pressure ＞200N.

7. Outdoor Cabinet Dimension Parameter

Configuration	Item	Technical Parameter
Cabinet	Model	ET6575170A-30U
	Protection Level	IP55
	External Dimension	W650mm×D750mm×H1700mm
	Internal Dimension	19inch ,30U
	Material	Galvanized steel, 1.2mm thickness, single wall. Thickness of bearing parts: 2.0mm
	Insulation	PEF
	Coating	Polyester powder coating
	Color	RAL7035
	Lock	Anti-thieft three-point locking system
	Hinge	Inner hinge
	Installation Options	Floor mounted
	Cable Routing	Cable in and out from the bottom of cabinet
	Maintenance	One front door
Cooling	AC Air Conditioner	1500W 220VAC 50Hz , install on the front door
Fan	Fan	Two 220VAC 50Hz fans, One temperature controller
Others	LED lamp
Others	The entrance guard switch
Environment	Working Temperature	-40℃~+55℃ (+Solar Radiation)
	Storage Temperature	-40℃~+70℃
	Working Humidity	5%~95%(No condensation)
	Working Altitude	0~4000 meters
