Dual Door 19 Inch Waterproof Outdoor Cabinet IP56 with pDU Floor Mounted enclosure
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Space: | Standard 19" Rack Rail, 17U | Access: | Front Access And Rear Access |
|---|---|---|---|
| Lock: | Anti-theft Three-point Locking System | Out Cover: | Anti-corrosion |
| Standard Color: | Light Grey RAL7035 | Material: | Stainless Steel |
| Model: | ET7080100A-17U | IP Grade: | IP56 |
Dual Door 19 Inch Waterproof Outdoor Cabinet IP56 With PDU Floor Mounted Enclosure
1. Dual Door 19 Inch Cabinet Application
The cabinets system can support Electrical equipment,PDU,Backup batteries,monitoring system and etc.This series enclosures offer all the protection needed for outdoor requirements.Ultimate security is provided by a three-point locking system.
2. Waterproof Outdoor Enclosure Features
● Heavy duty outdoor construction
● Standard 19” rack rail
● Front access and rear access
● Anti-theft three-point locking system, support padlock
● Outdoor powder coating, anti-corrosion
● Standard Color: light grey, RAL7035. Custom color available, can design per customer's request
3. IP56 With PDU Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Size H*W*D 1000*700*800mm |
| Layout | One compartment, used for installing 19” equipment | |
| Equipment Installation Method | 19” rack,17u | |
| Door | With one front door and one rear door, and anti-theft three point lock for outdoor cabinet (support padlock) | |
| Material | Stainless steel, single wall with 20mm PEF thermal insulation | |
| Structure | Assembled | |
| Ingress Protection | IP56 | |
| Temperature Control | Cooling | 500W 48VDC Air conditioner |
| Lighting | LED lamp | 48VDC |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 × (1±5%) W/m2 |
4. Outdoor Floor Mounted Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension H×W×D 1000× 700× 800mm. (2) One compartment: including 17U 19” rack. (3) With one front door, with three point lock for outdoor cabinet. (4) Material: Stainless steel, single wall with thermal insulation. (5) Floor installed with accessories |
| 2 | Air Conditioner | 1 | Set |
Compressor type air conditioner Cooling Capacity: 500W Power Supply: 48VDC |
| 3 | Fan(optional) | 2 | Set | 48VDC |
| 4 | LED Lamp Switch | 1 | PC | For controlling LED lamp on/off |
| 5 | LED Lamp | 1 | PC | 48VDC |
| 6 |
Sensors(optional) |
1 | Set |
1× temperature & humidity sensor, 2× door sensor, |
| 7 | Power Distribution Unit(optional) | 1 | Set |
AC input: 1×2P/63A AC SPD: SPD40/60KA AC output: 5×1P/16A DC output: 1×1P/32A,2×1P/16A,2×1P/6A |
| 8 | Package | 1 | Set | Wooden Case |

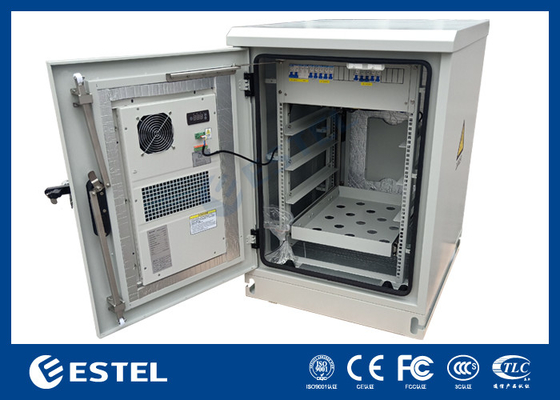

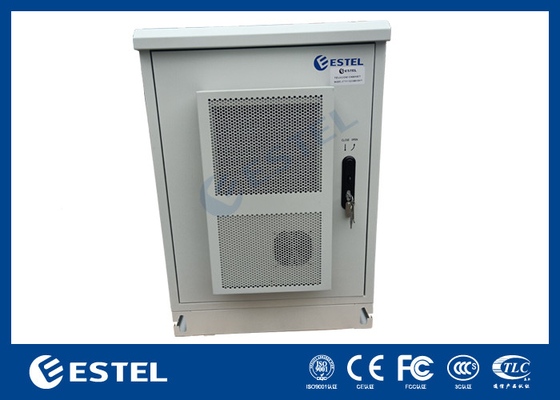

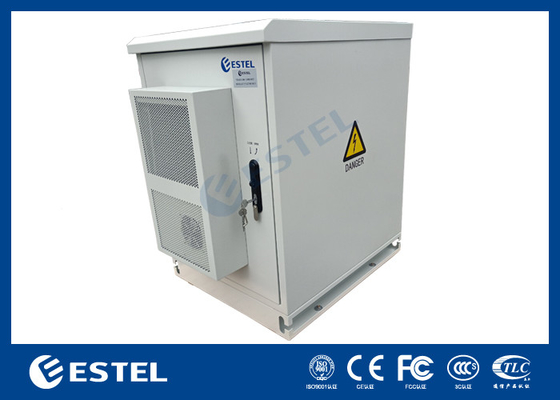

5. 19 Inch With PDU Cabinet Photos
6. FAQ
Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
