19 inch 35u Intergrated Outdoor Telecom Cabinets With Air Conditioner And Fan

Large Image : 19 inch 35u Intergrated Outdoor Telecom Cabinets With Air Conditioner And Fan

Product Details:

Place of Origin:	Shen Zhen, China (Mainland)
Brand Name:	ESTEL
Certification:	ISO9001, CE, 3C, FCC, TLC, IP55
Model Number:	ET75751900A-35U

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	negotiation
Packaging Details:	wooden case
Delivery Time:	15-20 working days
Payment Terms:	L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability:	6,000 sets per month

Contact Now

Detailed Product Description

Model:	ET75751900A-35U	Cooling:	Air Conditioner And Fan
IP Grade:	IP55	Lock:	Anti-theft Three Point Lock
Color:	ODM OEM	External Size:	WDH:750x750x1900mm
Door:	One Front Door	Material:	Galvanized Steel

19 inch 35u Intergrated Outdoor Telecom Cabinets With Air Conditioner And Fan

1. 35U Outdoor Telecom Cabinet Quick Details:

Place of Origin: Shenzhen, China (Mainland)	External Size H×W×D 1900×750×750mm
Brand Name: ESTEL	Material: Galvanized steel, single wall, with insulation
Model Number: ET75751900A-35U	Cabinet Layout: one compartment, for installing 19” equipment,35U
Product Name: Outdoor Telecom Equipment Cabinet	Cabinet Lock: anti-theft three point lock
Certification: ISO9001, CE, 3C, FCC, TLC, IP55	Protection Level: IP55
Application: outdoor telecom base station	Cable Entry: at cabinet bottom
Material: galvanized steel (support custom made)	Illumination: 220VAC 50Hz LED lamp
Heat Insulation: PEF	Grounding Protection: copper bar
Color: grey (support custom made)	Cooling: AC220V 50Hz Air Conditioner and two fans
Coating: anti-corrosion outdoor powder coating	Accessories Options: PDU, temperature control switch

2. 19 inch Intergrated Enclosure Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Payment Terms:	L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability:	6,000 sets per month
Delivery Time:	15-20 working days
Packaging Details:	wooden case

3. Weatherproof Enclosure Accessories List:

No.	Item	Quantity	Unit	Specs
1	Outdoor Telecom Cabinet	1	Set	(1) External Dimension: H×W×D 1900×750×750mm (2) One compartment: equipment compartment (3)With one front door , and anti-theft three point lock for outdoor cabinet (support padlock) (4) Material: Galvanized steel ; 1.2mm thickness (5) With 20mm PEF heat insulation
2	Air Conditioner	1	Set	Cooling capacity: 1500W Power supply: AC220V 50Hz
3	Ventilation Fans	2	PC	220VAC 50Hz
4	Door Sensor(optional)	1	PC	One for controlling LED lamp, the other for open door alarm
5	LED Lamp	1	PC	220VAC 50Hz
6	Power Distribution Unit(optional)	1	Set	Grade B Lightning Proof AC Input: 63A/2P 1 AC Output: 16A/1P4 DC Output: 16A/1P*4
7	Package	1	Set	Wooden Case

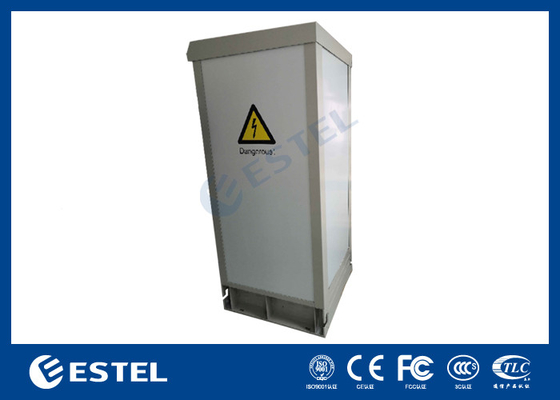

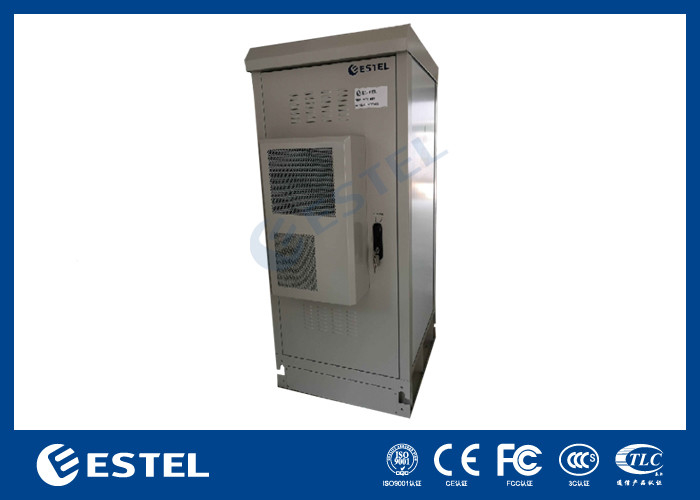

5. Cabinet With Cooling System Picture:

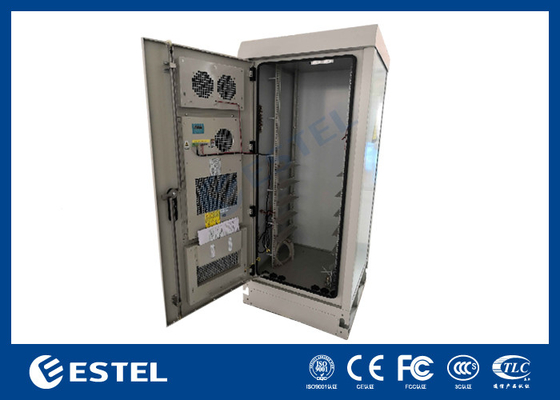

6. IP55 Cabinet Structure:

The cabinet includes 19” equipment installation rack. The cabinet includes one air conditioner and fans, installed on front door.

7. Cabinet Door and Lock:

The cabinet includes one front door. The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock.

8. Appearance and Surface Treatment:

Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE RAL7035).

9. Applications:

The ET75751900A-35U Outdoor Telecom Equipment Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.

10. Feature:

The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
Cabinet cooling: fans and air conditioner.
The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are entrance holes individually for power cable, signal cable and optical cable.
All the cables used in the cabinet are made from flame retardant materials.
