Product Details:

Place of Origin: Shen Zhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: DDTE082

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiation
Packaging Details: wooden case
Delivery Time: 15-20 working days
Payment Terms: L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability: 6,000 sets per month
Detailed Product Description





1. Quick Details:



Place of Origin: Shenzhen, China (Mainland) External Size H×W×D 2195×900×900mm

Brand Name: ESTEL

Structure: sandwich structure, double wall, with insulation

Model Number: DDTE082

Cabinet Layout: one compartment, for installing 19” equipment

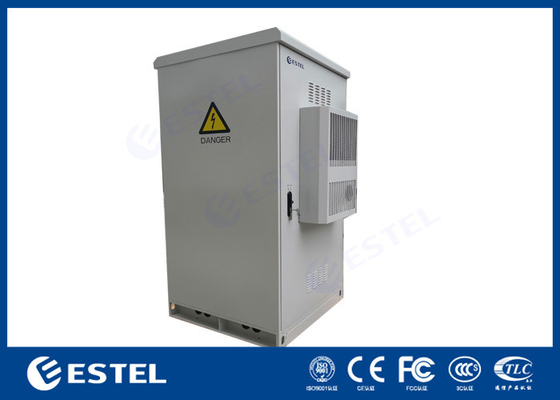

Product Name: Outdoor Telecom Equipment Cabinet

Cabinet Lock: anti-theft three point lock
Certification: ISO9001, CE, 3C, FCC, TLC, IP55

Protection Level: IP55

Application: outdoor telecom base station Cable Entry: at cabinet bottom
Material: galvanized steel (support custom made) Illumination: DC48V LED lamp

Heat Insulation: PEF

Grounding Protection: copper bar

Color: grey (support custom made)

Cooling: AC220V Air Conditioner and DC48V Fans

Coating: anti-corrosion outdoor powder coating

Accessories Options: PDU, temperature control switch



2. Payment & Shipping Terms:



Minimum Order Quantity: 1 set
Price: negotiation
Payment Terms: L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability: 6,000 sets per month
Delivery Time: 15-20 working days
Packaging Details: wooden case



3. Technical Parameters



Item Type Technical Parameter
Structure Dimension



External Dimension: H×W×D 2195×900×900mm



Layout 1 compartment
Equipment Installation Method 19” rack
Door With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)
Material Galvanized steel ; 1.5mm thick outer plate, 0.8mm thick inner plate
Heat Insulation There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF.
Structure Assembled
Ingress Protection IP55
Temperature Control Cooling AC220V air conditioner and DC48V fans
Lightning Proof Grade B lightning proof Nominal: 60KA, Max.: 100KA
Lighting LED lamp 48V LED lamps (immovable), with protective circuit breaker
Temperature Temperature Working Temperature: -40°C ~ +55°C
    Storage Temperature: -50°C ~ + 70°C
    Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2



4. Accessories List



No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1) External Dimension: H×W×D 2195×900×900mm

(2) One compartment: equipment compartment

(3)With one front door , and anti-theft three point lock for outdoor cabinet (support padlock)

(4) Material: Galvanized steel ; 1.5mm thick outer plate, 0.8mm thick inner plate

(5) With 20mm PEF heat insulation between two walls

2 Air Conditioner 1 Set

Cooling capacity: 1.5KW,

Power supply: AC220V, 50HZ,

Model:TC06-150JFH/01

3 Auxiliary Direct Ventilation Fans 2 PC 12038 DC48V
4 Door Sensor 2 PC One for controlling LED lamp, the other for open door alarm
5 LED Lamp 1 PC DC48V
6 Power Distribution Unit 1 Set

Grade B Lightning Proof AC Input: 63A/2P *1; AC Output: 16A/1P*4;

DC Output: 16A/1P*4

7 35°C temperature control switch 1 PC
8 Package 1 Set Wooden Case



5. Cabinet Material



The cabinet is made of galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm. There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF. The cabinet is assembled type.

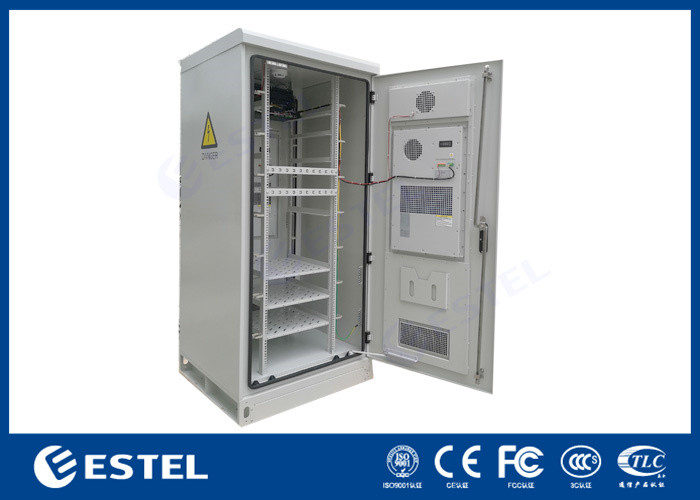

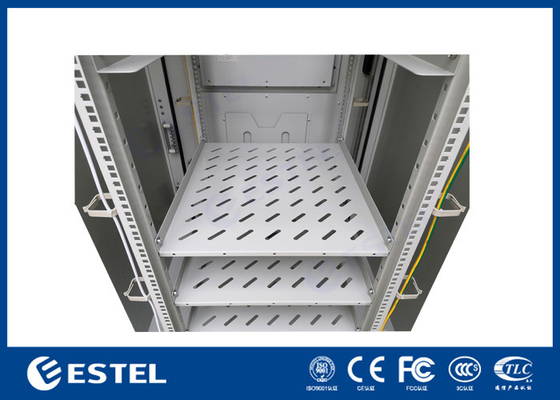

6. Cabinet Structure



The cabinet includes 19” equipment installation rack. The cabinet includes one air conditioner and fans, installed on front door.



7. Cabinet Door and Lock



The cabinet includes one front door. The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock.



8. Door lock theft proof design



(1) Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.





 Waterproof Outdoor Telecom Cabinets , Outdoor Equipment Cabinet With Air Conditioner

(2) Three point lock





Waterproof Outdoor Telecom Cabinets , Outdoor Equipment Cabinet With Air Conditioner

Waterproof Outdoor Telecom Cabinets , Outdoor Equipment Cabinet With Air Conditioner

9. Cable Inlet



Feeder cable and other external cables all use bottom wiring method.



Waterproof Outdoor Telecom Cabinets , Outdoor Equipment Cabinet With Air Conditioner

10. Grounding Protection



The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.

The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.

Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.



Waterproof Outdoor Telecom Cabinets , Outdoor Equipment Cabinet With Air Conditioner



11. Connection and Fastening



Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.

Door hinges use inner hinge mode.



Waterproof Outdoor Telecom Cabinets , Outdoor Equipment Cabinet With Air Conditioner



12. Appearance and Surface Treatment



Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.



13. Applications



The DDTE082 Outdoor Telecom Equipment Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.



14. Feature



  • The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
  • Cabinet cooling: fans and air conditioner. (Other cooling option: heat exchanger). MTBF≥50000h.
  • The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are entrance holes individually for power cable, signal cable and optical cable.
  • All the cables used in the cabinet are made from flame retardant materials.



15. Packing and Shipping
