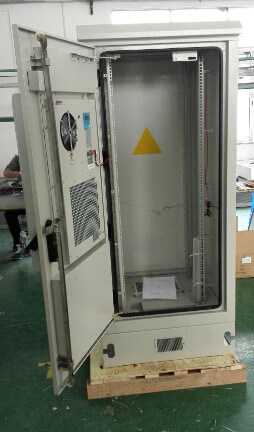

DDTE076:Energy Saving WaterProof Outdoor Telecom Metal Cabinet With Heat Exchanger

Large Image : DDTE076:Energy Saving WaterProof Outdoor Telecom Metal Cabinet With Heat Exchanger

Product Details:

Place of Origin:	China
Brand Name:	ESTEL
Certification:	ISO9001:2008
Model Number:	DDTE076

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Wooden Case
Delivery Time:	15~20 Days
Payment Terms:	T/T,L/C
Supply Ability:	80000 Sets Per Year

Contact Now

Detailed Product Description

DDTE076 Outdoor Telecom Cabinet

1.Application

The DDTE076 Outdoor Telecom Cabinet is mainly used in wireless communication base station, such as 3G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.

2. Features

(1)The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.

(2)Cabinet cooling: heat exchanger. (Other cooling option:fans and air conditioner ). MTBF≥50000h.

(3)The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are entrance holes individually for power cable, signal cable and optical cable.

(4)All the cables used in the cabinet are made from flame retardant materials.

3. Technical Parameters

Item	Type	Technical Parameter
Structure	Dimension	External Dimension: HWD 1750900900
	Layout	1 compartment
	Equipment Installation Method	19” rack
	Door	With one front door, and special lock for outdoor cabinet (support padlock)
	Material	Galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate
	Heat Insulation	There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF.
	Structure	Assembled or welded
	Ingress Protection	IP55
Temperature Control	Cooling	Heat exchanger
Lightning Proof	Grade B lightning proof	Nominal: 60KA, Max.: 100KA
Lighting	LED lamp	48V LED lamps (immovable), with protective circuit breaker
Temperature	Temperature	Working Temperature: -40°C ~ +55°C
		Storage Temperature: -50°C ~ + 70°C
		Transport Temperature: -50°C ~ +70°C
Humidity	Relative Humidity	5% ~ 100%
Pressure	Air Pressure	62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity	Solar Radiation Intensity	1120 ×(1±5%)W/m2

4. Accessories List

No.	Item	Quantity	Unit	Specs
1	Outdoor Telecom Cabinet	1	Set	(1) External Dimension: HWD 1750900900 (2) One compartment:equipment compartment (3)With one front door, and special lock for outdoor cabinet (support padlock) (4) Material: galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate;
2	Heat Exchanger With Heater	1	Set	Cooling capacity: 0.8KW, DC48V; Model: HE06-80SEH/01
4	Door Sensor	1	PC	For controlling LED lamp
5	LED Lamp	1	PC	DC48V
7	Package	1	Set	Wooden Case
