Cabinet Outer Size: | 800mm(W)x940mm(D)x2050mm(H) | Model: | ET8094205C-40U |
---|---|---|---|
Equipment Rack: | 19 Inch Rack, 40U | Cabinet Material: | Galvanized Steel |
IP Rating: | IP65 | Cooling System: | Air Conditioner And Fan |
Grounding Protection: | Copper Bar | Applicaiton: | Outdoor Telecom Base Station |
Power System 48VDC 300A 40U Galvanized Steel Waterproof Outdoor Telecom Cabinet
1, Waterproof Outdoor Cabinet Configuration:
Basic Information | |
Outer Size |
800mm(W)x940mm(D)x2050mm(H) (include temperature control protrusions) |
Covering Area | 800mm(W)x700mm(D) |
Height of base | 150mm |
Weight | ≤130kg (excluding the equipment and battery) |
User Space | 37U |
Material |
Wall:1.2mm galvanized steel sheet Door:1.5mm galvanized steel sheet |
Lock | Three point anti-theft lock,Europe standard ock core,can change or match padlock by itself |
Wiring Position | Bottom in and out |
Wiring Holes | 10xφ36 |
Protection Grade |
IP55 |
Temperature Control Information | |
Equipment Compartment |
Mode:heat exchanger Heat dissipation efficiency:200W/K Rated voltage:48VDC Rate power:520W |
Battery Compartment |
Mode:DC air conditioner Cooling capacity (L35/L35):500W Rated voltage:48VDC Power consumption (L35/L35):160W |
Other Information | |
Lighting | DC-48VLED Light |
Smoke sensor | 12VDC |
Flood Sensor | Dry contact |
Temperature and humidity sensor |
12VDC |
Access Control | Dry Contact |
Environment | |
Operating Temperature | 10℃ to +45℃ |
Storage Temperature | 40℃ to +75℃ |
Operating Humidity | 5% to 95% (non-condensing) |
Altitude |
0 to 4000m (if the altitude is within the range of 3000m to 4000m,the maximum operating temperature decreases by 1℃ as the altitude increases by 200m) |
Internal Rack Information | |
Equipment Compartment |
Rack mode:19"space according to IEC 60297-3 Depth:400mm Height:20U The available distance in front of the 19":180mn |
Battery Compartment |
Rack mode:two groups battery bracket Height of each battery bracket:≥350mm Optional:17U19"rack for lithium battery |
2. Telecom Power System 48VDC 300A 40U Outdoor Telecom Cabinet Rectifier:
It is a19-inch sub-rack for hybrid power system,with 5U height compact design to meet critical application needs of fiber and microwave transmission,access device,switch..
The system's maximum power is 150A,with AC input/DC input/battery/load MCBs.The cables are front accessing with MCB and busbar.
3. Power System 48VDC 300A 40U Rectifier key features:
·Wide input voltage range:85 to 290VAC for rectifier and 120 to 420VDC for MPPT
·Rectifier,MPPT and controller are hot pluggable,easy and quick on-line maintenance
·High efficiency up to 96%for lower operating cost
·Supports ethernet,SNMP,ModBus and RS485 communication interfaces
*customized design is available.
Input Distribution | ||
AC | DC | |
Input Mode | 220VAC single-phase | 120VDC to 425VDC |
Input Frequency | 45 to 65Hz,rated value:50Hz/60Hz | / |
Input Capacity | 63A/2Px1 | 63A/2Px5 |
SPD | 20kA/40kA,8/20μs | |
Output Distribution | ||
Rectifier | Solar Module | |
Output Voltage | -42 to-58VDC,rated value:-53.5VDC | -42 to-58VDC,rated value:-54.5VDC |
Battery Breakers | 125A/2P | |
Load Breakers | Lvd:32A/1Px1,10A/IPx5; Blvd:32A/1Px2,10A/1P×5 | |
DC SPD | 20kA/40kA,8/20μs | |
Module | ||
Rectifier Module | Solar Module | |
Input Voltage |
85 to 290VAC, rated 220VAC |
120 to 420VDC rated 340VDC |
Efficiency | >96% | >96% |
Rated Power | 3000W(176 to 290VAC) | 3000W(200 to 425VAC) |
Working Temperature |
-10°℃ to +75℃(fully output below 55℃) | -10℃ to +75℃ (fully output below 50℃) |
Controller | |
Signal Input | 3Al(2 battery temp,1 ambient temp),2RS485,7 DI |
Alarm Output | 6 dry contact |
Communication Port | RS485,SNMP |
Display Mode | LCD |
System | |
Dimension (WxDxH) | 482x350.6×9U,≤30kg(without modules) |
Cooling Mode | Natural cooling |
Maintenance Mode | Front maintenance,support modlule grade change |
Protection level | IP20 |
Environment | |
Operating Temperature | -10℃ to +50℃ |
Storage Temperature | -40℃ to +75℃ |
Operating Humidity | 5%to 95%(non-condensing) |
Altitude |
0 to 4000m(if the altitude is within the range of 3000m to 4000m,the maximum operating temperature decreases by 1℃ as the altitude increases by 200m) |

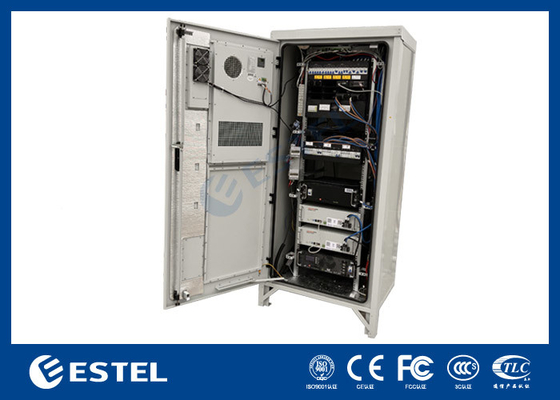

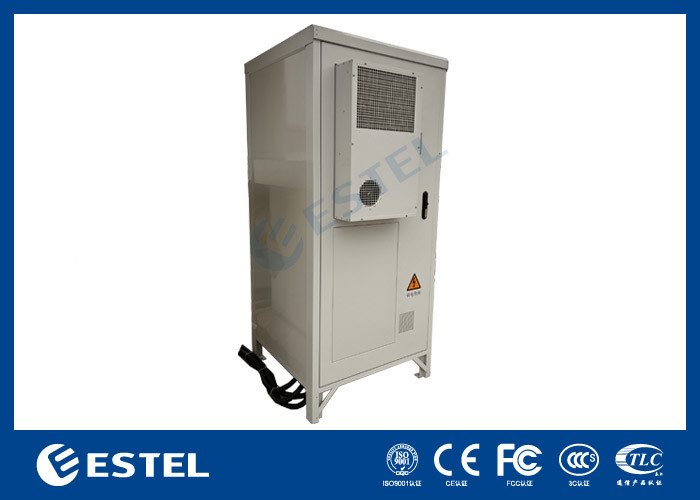

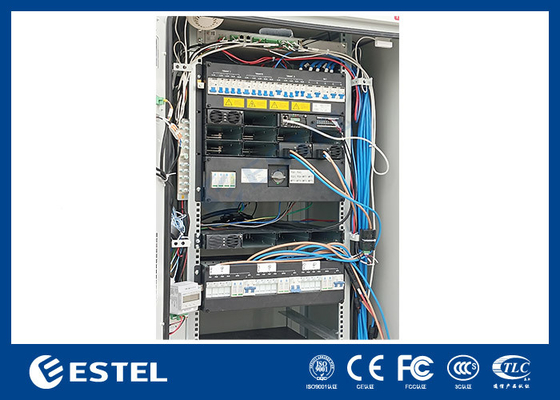

4. Galvanized Stell Waterproof Outdoor Telecom Cabinet Picture:
