Product Details:
Payment & Shipping Terms:
|
Protection Level: | IP55 | External Size: | W×D×H 600*600*1600mm |
---|---|---|---|
Material: | Galvanized Steel | Type: | Electric Customized Cabinet |
Advantage: | Dustproof, Sunproof And Rainproof | Lock: | Anti-theft Three Point Lock |

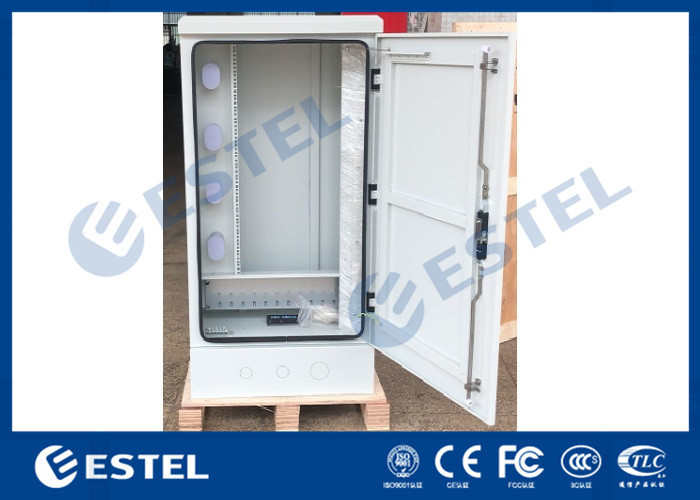

Front Access Outdoor Telecom Cabinet IP55 Galvanized Steel Electric Customized Cabinet
1. Front Access Outdoor Telecom Cabinet IP55 Galvanized Steel Electric Customized Cabinet Brief Description
This series IP55 Outdoor cabinet with rear back access offers the ideal enclosure solution to build the whole base station inside.The cabinets system can support Electrical equipments,PDU,Backup batteries,Mornitoring system and etc.This series enclosures offer all the protection needed for outdoor requirements.Ultimate security is provided by a three-point locking system.
2. Front Access Outdoor Telecom Cabinet IP55 Galvanized Steel Electric Customized Cabinet Key Features
Outdoor cabinets are designed to protect equipment from a range of environmental factors that can cause damage or malfunctions. Here are some ways that outdoor cabinets protect equipment:
3. Front Access Outdoor Telecom Cabinet IP55 Technical Parameters
External Size | W*D*H 600*600*1600mm |
Mounting type |
Floor mount |
Material |
Galvanized steel ,double wall with insulation |
Cabinet Layout |
One compartment |
Door limit |
Up to 110 degree open angle |
Protection Level |
IP55 |
Cabinet Inlets | From cabinet bottom |
Illumination | DC48V LED lamp |
Grounding Protection | Copper bar |
Color | Grey (support custom made) |
Coating | Anti-corrosion outdoor powder coating |
Alarm sensors | The door sensor, water sensor, smoke sensor, temperature and humidity sensor |
Flame retardant | Comply with GB5169.7 test A |
Door type |
With one front door and one back door anti-theft 3hree point lock for outdoor cabinet (support padlock). |
Cabinet Lock | Anti-theft three point lock(support padlock) |
Package | Wooden case with pallets |
There are entrance holes individually for power cable, signal cable and optical cable from cabinet bottom.
6. Cabinet connection and fastening
(1) Use anti-loose threaded connection as structure and bearer connection.Anchor bolt for fixing cabinet use hot dip galvanized bolts.
(2) Door hinges use inner hinge mode.
7. Packing
Selecting the Right Packaging Materials: Use sturdy and durable packaging materials such as corrugated cardboard boxes, foam padding, bubble wrap, and woodcase to protect the cabinet during transit.
Securing the Cabinet: Make sure the cabinet is securely fastened inside the packaging to prevent movement and potential damage during transportation. Use straps or cushioning materials to keep it in place.
Protection from Moisture and Elements: If the cabinet is being shipped long-distance or outdoors, consider using moisture-resistant packaging materials or waterproof covers to protect it from the elements.
Labeling: Clearly label the package with handling instructions, shipping address, and any special handling requirements to ensure it reaches the correct destination without damage.
