Product Details:
Payment & Shipping Terms:
|
Protection Level: | IP55 | Insulation Material: | 20mm PEF |
---|---|---|---|
External Size: | W×D×H 650mm*650mm*1000mm | Material: | Galvanized Steel |
Cooling: | Air Conditioner | Type: | Network Cabinet |
Advantage: | Dustproof, Sunproof And Rainproof | Lock: | Anti-theft Three Point Lock |

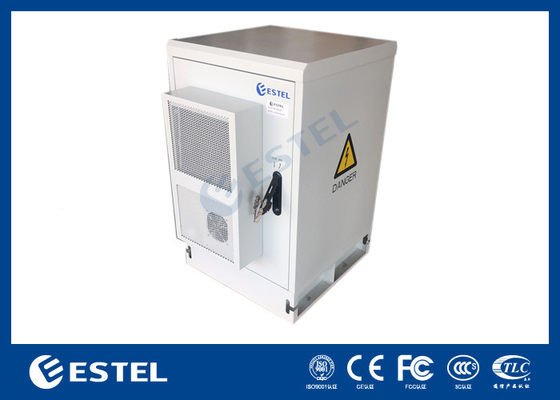

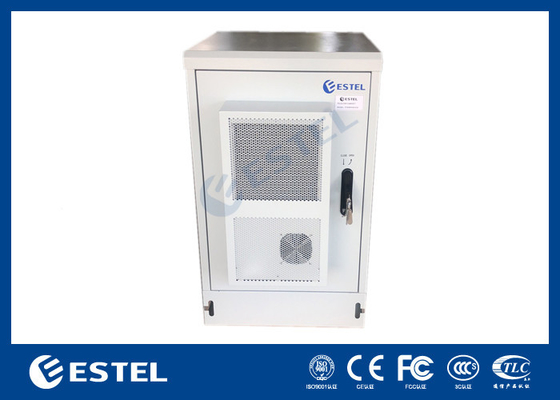

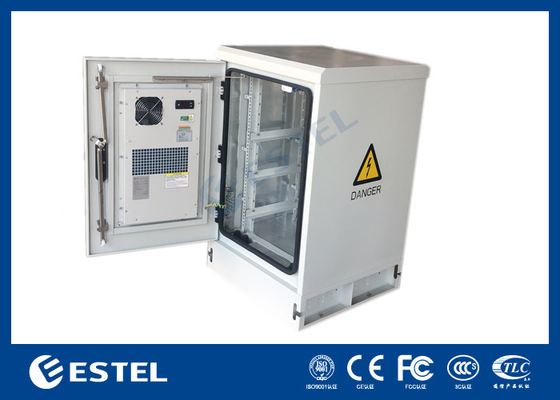

IP55 16U Outdoor Server Rack Cabinet Galvanized Steel With Air Conditioner
1. IP55 16U Outdoor Server Rack Cabinet Brief Description
The integrated outdoor telecom cabinet can be directly under the outdoor climate, made of metal or non-metallic material, does not allow the operator to access the cabinet. The cabinet can install base station equipment, power supply, battery, temperature control equipment, transmission equipment and other related equipment, and can provide reliable mechanical and environmental protection for normal operation of the internal equipments.
The cabinet is mainly used for wireless communication base stations, including a new generation of 4G / 5G systems, communications / network integrated services, access / transmission switching station, emergency communications / transmission etc.
2. IP55 16U Outdoor Server Rack Cabinet Key Funtions
Outdoor cabinets are designed to protect equipment from a range of environmental factors that can cause damage or malfunctions. Here are some ways that outdoor cabinets protect equipment:
3. Specification Of outdoor server rack cabinet
Model | ET6565100-16U |
Dimension | W×D×H 650×650×1000mm |
19” space and battery shelf | 16U |
Door | One front door |
Lock | Anti-theft three point lock for outdoor cabinet(support padlock) |
Material | galvanized steel, with thermal insulation |
Installation method | Floor mount |
Cooling |
Air conditioner with screen, can set start working temperature and stop temperature. Power supply: AC220V 50Hz; Cooling Capacity: 500W |
Illumination | 1pc LED lamp AC220V |
Door sensor | Used for controlling led lamp on/ off |
Working temperature | -40°C~+75°C |
Ingress Protection | IP65 |
Relative Humidity | 5% ~ 100% |
6. Packing
Selecting the Right Packaging Materials: Use sturdy and durable packaging materials such as corrugated cardboard boxes, foam padding, bubble wrap, and woodcase to protect the cabinet during transit.
Securing the Cabinet: Make sure the cabinet is securely fastened inside the packaging to prevent movement and potential damage during transportation. Use straps or cushioning materials to keep it in place.
Protection from Moisture and Elements: If the cabinet is being shipped long-distance or outdoors, consider using moisture-resistant packaging materials or waterproof covers to protect it from the elements.
Labeling: Clearly label the package with handling instructions, shipping address, and any special handling requirements to ensure it reaches the correct destination without damage.
