19inch Rack Outdoor Telecom Cabinet Weatherproof Enclosure With Cooling System

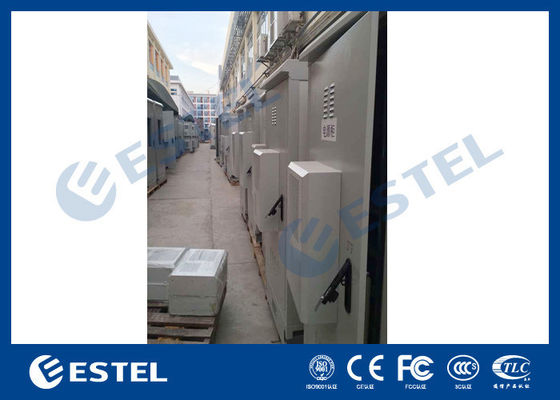

Large Image : 19inch Rack Outdoor Telecom Cabinet Weatherproof Enclosure With Cooling System

Product Details:

Place of Origin:	China
Brand Name:	ESTEL
Certification:	ISO9001, CE
Model Number:	ET7575175-32U

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	TBA
Packaging Details:	Wooden case with pallet
Delivery Time:	30~40 Working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	5,000 sets per month

Contact Now

Detailed Product Description

Material:	Galvanized Steel	Color:	Grey
Cabinet Lock:	Anti-theft Three Point Lock	Coating:	Anti-corrosion Outdoor Powder Coating
Protection Level:	IP55	Heat Insulation:	PEF 20mm

19inch Rack Outdoor Telecom Cabinet

Weatherproof Enclosure With Cooling System

1. 19inch Rack Outdoor Telecom Cabinet Quick Details:

Place of Origin: Shenzhen, China (Mainland)	External Size H×W×D 1750×750×750mm Internal Size H×W×D 1450×650×650mm (19”, 32U)
Brand Name: ESTEL/OEM/ODM	Structure: double wall, with insulation, sandwich structure
Model Number: ET7575175-EQ	Cabinet Layout: one compartment, for installing 19” equipment
Product Name: Outdoor Telecom Equipment Cabinet	Cabinet Lock: anti-theft three point lock
Certification: ISO9001, CE, 3C, FCC, TLC, IP55	Protection Level: IP55
Application: outdoor telecom base station	Cable Entry: at cabinet bottom
Material: galvanized steel	Illumination: DC48V LED lamp
Heat Insulation: PEF	Grounding Protection: copper bar
Color: grey (support custom made)	Cooling: DC48V Air Conditioner and DC48V Fans
Coating: anti-corrosion outdoor powder coating	Accessories Options: PDU, rectifier system, environment monitoring system

2. 19inch Rack Outdoor Telecom Cabinet Technical Parameters:

Item	Type	Technical Parameter
Structure	Dimension	External Dimension H×W×D 1750×750×750mm; Internal Dimension H×W×D 1450×650×650mm.
	Layout	One compartment
	Equipment Installation Method	19” standard rack
	Door	With one front door; with three point lock for outdoor cabinet (support padlock)
	Material	Sandwich structure: (1) Cabinet left side, right side and back: sandwich structure panel, outer plate: 0.5mm galvanized steel, inner plate: 0.5mm galvanized steel, insulation: 45mm flame retarded EPS. (2) Cabinet door and base: outer plate: 1.5mm galvanized steel, inner plate: 0.8mm galvanized steel, insulation: 40mm PEF. (3) Cabinet roof: sandwich structure panel (outer plate: 0.5mm galvanized steel, inner plate: 0.5mm galvanized steel, insulation: 45mm flame retarded EPS.) + 1.0mm galvanized steel.
	Structure	Assembled
	Ingress Protection	IP55
Temperature Control	Cooling	DC48V Air conditioner and DC48V fan
Lighting	LED lamp	48V LED lamp
Temperature	Temperature	Working Temperature: -40°C ~ +55°C
		Storage Temperature: -50°C ~ + 70°C
		Transport Temperature: -50°C ~ +70°C
Humidity	Relative Humidity	5% ~ 100%
Pressure	Air Pressure	62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity	Solar Radiation Intensity	1124 × (1±5%)W/m2

3. 19inch Rack Outdoor Telecom Cabinet Structure:

19inch Rack Outdoor Telecom Cabinet Weatherproof Enclosure With Cooling System

4. Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Payment Terms:	L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability:	5,000 sets per month
Delivery Time:	15-20 working days
Packaging Details:	wooden case
