Hot Dip Galvanized Steel IP55 Outdoor Telecom Enclosure Weatherproof Electronics Box

Large Image : Hot Dip Galvanized Steel IP55 Outdoor Telecom Enclosure Weatherproof Electronics Box

Product Details:

Place of Origin:	China
Brand Name:	ESTEL
Certification:	ISO9001, CE, RoHs
Model Number:	ET434679-3O

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Wooden case
Delivery Time:	3-4 weeks
Payment Terms:	L/C, Western Union, T/T
Supply Ability:	5000 pcs/month

Contact Now

Detailed Product Description

Material:	Hot Dip Galvanized Steel	Anti-erosion:	Yes
Cooling System:	Fans And TEC	Cabinet External Size:	460mm×460mm×790mm (W×D×H)
Cabinet Internal Size:	6U× 400×19” (W×D×H)	Structure:	Double Walls Structure

Hot Dip Galvanized Steel IP55 Outdoor Telecom Enclosure Weatherproof Electronics Box

1. Description Of Outdoor Telecom Cabinet

The cabinet can be used as a traffic signal control cabinet . they provide protection from vandalism, dust, rain, snow and dripping water. The material can be made from galvanized steel, aluminum or stainless steel according to different demand . We manufactures traffic control enclosures from small pole-mounted enclosures to large walk-in/freestanding enclosures.

2. Selling points and Feature Of Outdoor Equipment Cabinet

● High intensity and anti-erosion performance

● Able to counter abrupt climate change and extreme environment

● Capacity can be flexibly customized as required

● Installation is quick and convenient

● Material: galvanized steel or as customer's requirements

● Cooling System: Fans and TEC

● Protection Level: IP55 ,Waterproof,dust proof.

3. Technical Parameters

Item	Type	Technical Parameter
Structure	Dimension	Cabinet External Size : 460mm×460mm×790mm (W×D×H), Cabinet Internal Size : 6U× 400×19” (W×D×H)
	Layout	One compartment
	Equipment Installation Method	19″ Data Rack Rails
	Door	- embedded structure. - 3 point locking system with key-lock swing handle.
	Material	- hot dip galvanized steel,cabinet - 10mm heat insulation between the two walls
	Structure	double walls structure
	Ingress Protection	IP55
Temperature Control	Cooling	4 fans and one TEC
Temperature	Temperature	Working Temperature: -40°C ~ + 60°C
		Storage Temperature: -50°C ~ + 70°C
		Transport Temperature: -50°C ~ +70°C
Humidity	Relative Humidity	≤95% (at + 40°C)
Pressure	Air Pressure	70kPa ~ 106kPa
Cabinet load bearing		≥600kg

4. Accessories List

No.	Item	Quantity	Unit	Specs
1	Outdoor Telecom Cabinet	1	Set	Cabinet External Size : 460mm×460mm×790mm (W×D×H), Cabinet Internal Size : 6U× 400×19” (W×D×H)
2	Fan	4	Set	4 set Fans

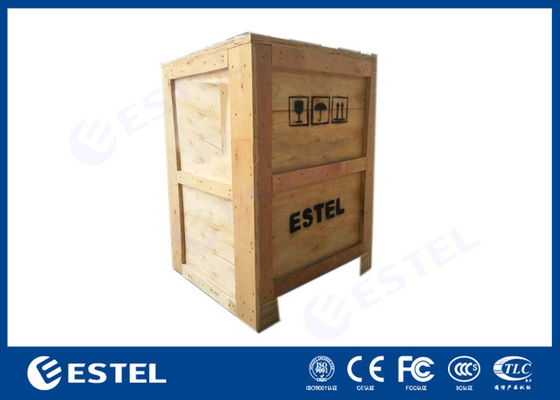

3	Package	1	Set	Wooden Case
4	TEC	1	Set	100W TEC
5	Door detector	1	Set	1 set
6	LED LAMP	1	Set	DC48V LED LAMP

5. Enclosure Cooling

4 Pcs DC48V Fans and 1 set TEC

6. Cabinet Structure

(1) Cabinet External Size : 460mm×460mm×790mm (W×D×H),

Cabinet Internal Size : 6U× 400×19” (W×D×H)

(2) One compartment; The cabinet door uses embedded structure. The door opening angle is larger than 110° and the door limit device can limit the opening angle. The lock is theftproof three point lock, supports padlock.

(3) The cabinet is a double-wall cabinet, with 10mm heat insulation between the two walls

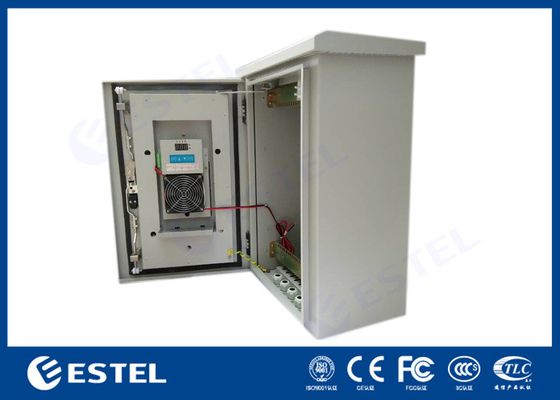

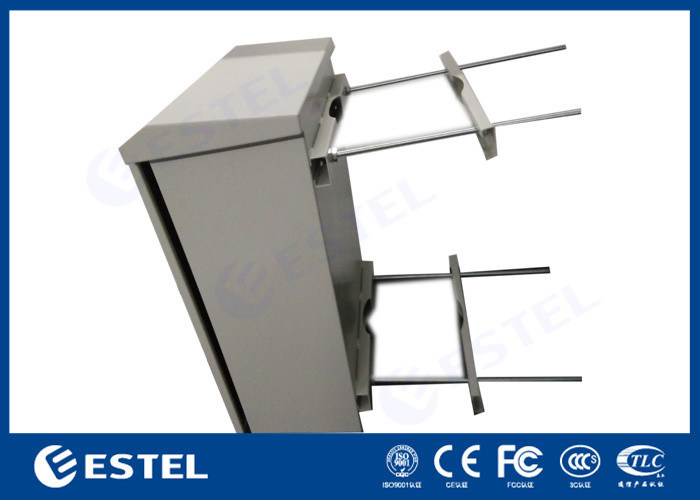

7. Installation Picture

Hot Dip Galvanized Steel IP55 Outdoor Telecom Enclosure Weatherproof Electronics Box

8. Main equipments

Hot Dip Galvanized Steel IP55 Outdoor Telecom Enclosure Weatherproof Electronics Box

FAQ

Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
