Dimension: | 1000×1000×1800mm | Layout: | Two Compartments |
---|---|---|---|
Door: | With One Front Door And One Rear Door | Power Distribution Unit: | Grade B Lightning Proof |
Environment Monitoring System: | 1 | Package: | Wooden Case |

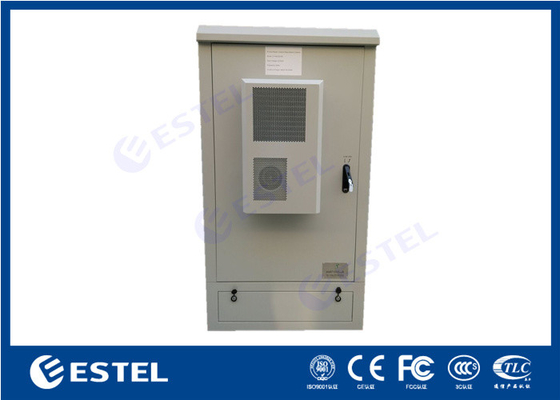

1. Description Of Outdoor Base Station Cabinet
Outdoor cabinets are designed to provide a safe solution to install telecommunications equipment in outdoor conditions. These cabinets are offering protection against different weather conditions, dust and vandalism. The cabinet is with one compartment.
2. Selling points and Feature Of Outdoor Base Station Cabinet
3. Technical Parameters
Item | Type | Technical Parameter |
Structure | Dimension | External Dimension (W×D×H):1000×1000×1800mm |
Layout | Two compartments | |
Equipment Installation Method | 19” standard rack | |
Door | With one front door and one rear door, special lock for outdoor cabinet (support padlock) | |
Material |
galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm. There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF. The cabinet is assembled type. |
|
Structure | Assembled | |
Ingress Protection | IP55 | |
Temperature Control | Cooling | 1500W Air Conditioner |
Lighting | LED lamp | 48V LED lamp |
Temperature | Temperature | Working Temperature: -40°C ~ + 70°C |
Storage Temperature: -5°C~45°C | ||
Transport Temperature: -40°C~+70°C |
4. Accessories List
No. | Item | Quantity | Unit | Specs |
1 | Outdoor Telecom Cabinet | 1 | Set |
(1)External Dimension (W×D×H):1000×1000×1800mm (2) Two compartments; (3) one front door and one rear door, with special lock for outdoor cabinet (support padlock) (4) Material: galvanized steel |
2 | Air Conditioner | 1 | Set | 1500W Air Conditioner, AC220V power supply |
3 | Power Distribution Unit | 1 | Set |
Grade B Lightning Proof AC INPUT: 63A/2P *1; AC OUTPUT: 16A/1P*4; DC OUTPUT: 16A/1P*4 |
4 | Environment Monitoring System | 1 | Set |
With Smoke Detector , Temperature & Humidity Transmitter ,Tilt & Shock Combination Sensor Water Detection Sensor |
5 | Package | 1 | Set | Wooden Case |
5. Application Scope
Outdoor Base Station Cabinet is mainly used in communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
6. Enclosure Cooling
One set Air conditioner

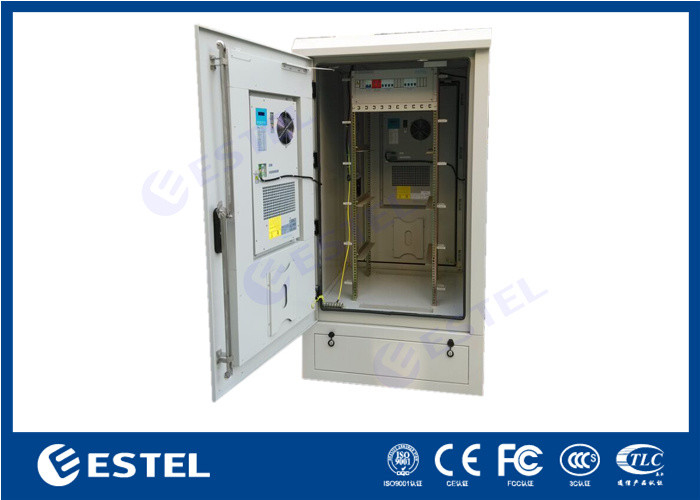

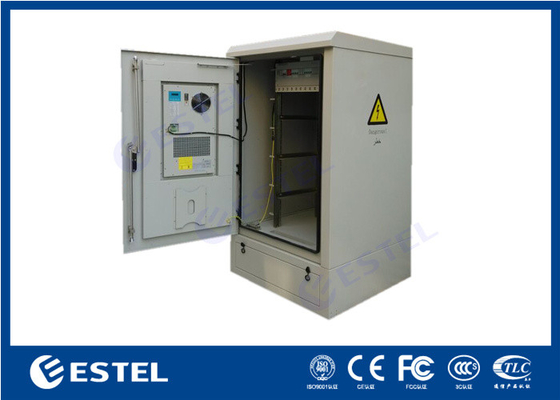

7. Cabinet Internal Installation
The cabinet includes 19" rack for equipment installation.
8. Cable Inlet
All feeder cable and other external cables all use bottom wiring method.There are 4 cable inlets at the bottom of the cabinet.
9. Cabinet Layout Diagram:
Users can put cables from the top of the pole. After going through the pole, cables will enter the cabinet through the bottom cable entrance hole.
11. Our Delivery Agent
The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
The cabinet packing is wooden case in compliance with GB3873-83, damp proof and shock proof. The outside of the packing is painted with damp proof sign, shock proof sign, direction sign, etc.
