Layout: | One Compartment | Material: | Galvanized Steel |
---|---|---|---|
Wall: | Single Wall With Thermal Insulation | Structure: | Assembled |
Cooling: | Air Conditioner And Fan | LED Lamp: | 220VAC |
1. Application

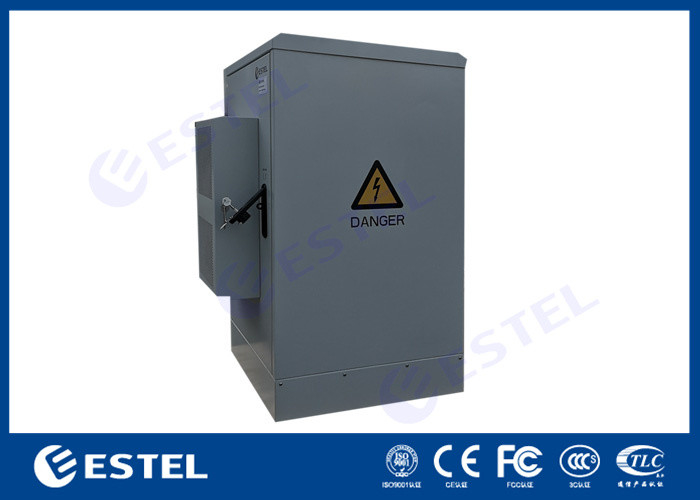

The ET6565120-EQ Outdoor enclosure is suitable for the various environment including house electronic equipment, industrial process control, external plant, telecommunications equipment, food, and medical equipment, bespoke application and many more.IP55 enclosure provides complete protection against contact with live or moving parts inside the enclosure, thus add protection from water, up to water projected by a nozzle against enclosure from any direction.
2. Features
● The cabinet is dustproof, sunproof and rainproof, used in outdoor environment.

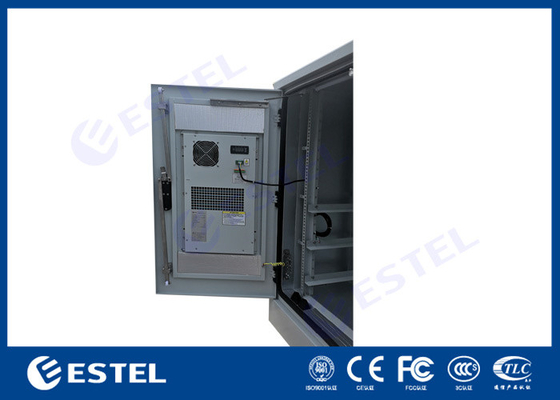

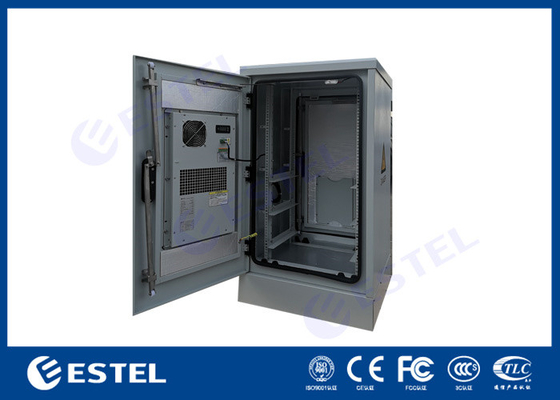

● Cooling: air conditioner and fan.
● Cable inlet at cabinet bottom
● Include grounding bar
● Include door stopper
● Optional cooling solutions: fan ventilation, air conditioner, heat exc
3. Technical Parameters
Item | Type | Technical Parameter |
Structure | Dimension | External Size H*W*D 1200*650*650mm |
Layout | One compartment, used for installing 19” equipment | |
Equipment Installation Method | 19” rack | |
Door | With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) | |
Material | Galvanized steel, single wall with thermal insulation | |
Structure | Assembled | |
Ingress Protection | IP55 | |
Temperature Control | Cooling | Air conditioner and fan |
Lighting | LED lamp | 220VAC |
Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
Storage Temperature: -50°C ~ + 70°C | ||
Transport Temperature: -50°C ~ +70°C | ||
Humidity | Relative Humidity | 5% ~ 100% |
Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
Radiation Intensity | Solar Radiation Intensity | 1120 × (1±5%) W/m2 |
4. Accessories List
No. | Item | Quantity | Unit | Specs |
1 | Outdoor Telecom Cabinet | 1 | Set |
(1)External Dimension H×W×D 1200× 650× 650mm. (2)One compartment: including 20U 19” rack. (3) With one front door, with three point lock for outdoor cabinet. (4) Material: galvanized steel, single wall with thermal insulation. (5) Floor installed. |
2 | Air Conditioner | 1 | Set |
Compressor type air conditioner Cooling Capacity: 500W Power Supply: 220VAC, 50Hz |
3 | Fan | 2 | Set | 220VAC |
4 | LED Lamp Switch | 1 | PC | For controlling LED lamp on/off |
5 | LED Lamp | 1 | PC | 220VAC |
6 |
Environment Monitoring System |
1 | Set |
1× environment monitoring unit,19”, 1U, 220VAC, SNMP communication 1× smoke sensor, 1× water sensor, 1× temperature & humidity sensor, 1× door sensor, |
7 | Package | 1 | Set | Wooden Case |
5. Cabinet Drawing
External Dimension H×W×D 1200×650×650mm(19”, 20U);
7. Fans
8. Filter Holes
