Ingress Protection:: | IP55 | Flame Retardance: | Comply With GB5169.7 Test A |
---|---|---|---|
Humidity: | 5% ~ 100% | Air Pressure: | 62kpa ~ 101kpa |
Solar Radiation Intensity: | 1120 × (1±5%) W/m2 | Cooling Capacity: | 500W |
1. Application
(1) 4G system
(2) Communication/network integrated service
(3) Access/transmission switching station
(4) Emergency communication/transmission
(5) Suitable for outdoor environment, such as roadside, park, remote mountain area, building roof.
2. Features
-- Ingress protection: IP55.
-- Flame retardance: comply with GB5169.7 test A.
-- Insulation resistance: the insulation resistance between grounding devices and cabinet body parts
-- Mechanical strength: each surface can bear upright pressure
3. Technical Parameters
Item | Type | Technical Parameter |
Structure | Dimension | External Size H*W*D 1300*650*650mm |
Layout | One compartment, used for installing 19” equipment | |
Equipment Installation Method | 19” rack | |
Door | With two doors, and anti-theft three point lock for outdoor cabinet (support padlock) | |
Material | Galvanized steel, single wall with thermal insulation | |
Structure | Assembled | |
Ingress Protection | IP55 | |
Temperature Control | Cooling | Air conditioner and fan |
Lighting | LED lamp | 220VAC |
Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
Storage Temperature: -50°C ~ + 70°C | ||
Transport Temperature: -50°C ~ +70°C | ||
Humidity | Relative Humidity | 5% ~ 100% |
Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
Radiation Intensity | Solar Radiation Intensity | 1120 × (1±5%) W/m2 |
4. Accessories List
No. | Item | Quantity | Unit | Specs |

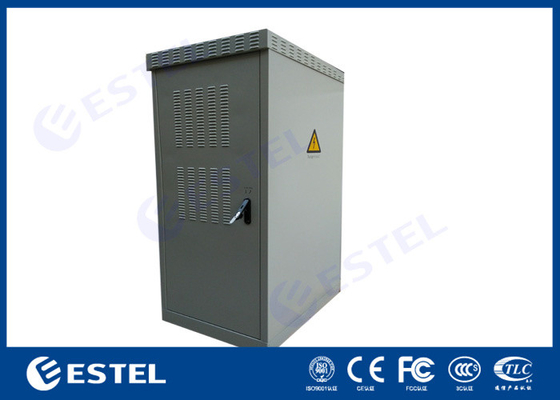

1 | Outdoor Telecom Cabinet | 1 | Set |

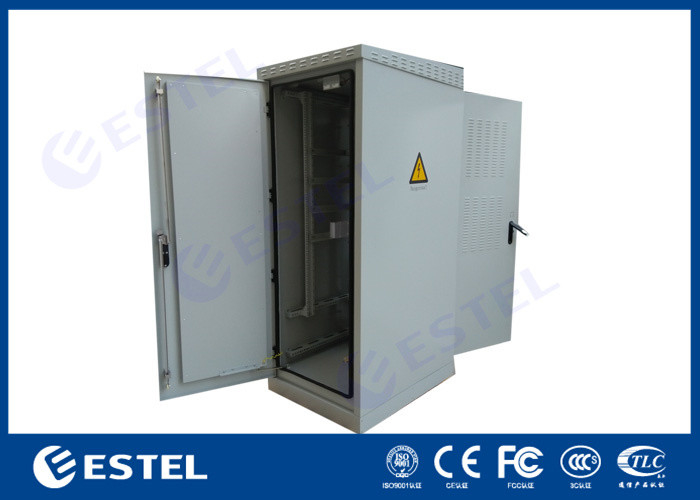

(1) External Dimension H×W×D 1300× 650× 650mm. (2) One compartment: including 20U 19” rack. (3) two doors, with three point lock for outdoor cabinet. (4) Material: galvanized steel, single wall with thermal insulation. (5) Floor installed. |

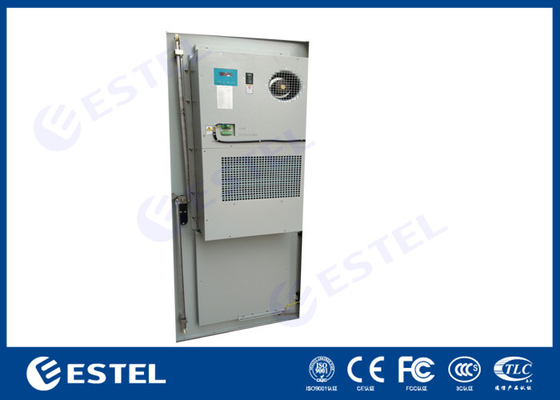

2 | Air Conditioner | 1 | Set |
Compressor type air conditioner Cooling Capacity: 500W Power Supply: 220VAC, 50Hz |
3 | Fan | 2 | Set | 220VAC |
4 | LED Lamp Switch | 1 | PC | For controlling LED lamp on/off |
5 | LED Lamp | 1 | PC | 220VAC |
6 |
Environment Monitoring System |
1 | Set |
1× environment monitoring unit,19”, 1U, 220VAC, SNMP communication 1× smoke sensor, 1× water sensor, 1× temperature & humidity sensor, 1× door sensor, |
7 | Package | 1 | Set | Wooden Case |
6. LED Lamp And Door Sensor
LED lamp and door sensor are installed at the top of the cabinet.
7. Packing
The cabinet packing is wooden case in compliance with GB3873-83, damp proof and shock proof. The outside of the packing is painted with damp proof sign, shock proof sign, direction sign, etc.
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
