External Dimension: | 850×850×1750mm | Height: | 32U |
---|---|---|---|
Door: | With One Front Door, And Anti-theft Three Point Lock For Outdoor Cabinet | Environment Monitoring Unit: | 1 |
Water Sensor: | 1 | Smoke Sensor: | 1 |
1. Application

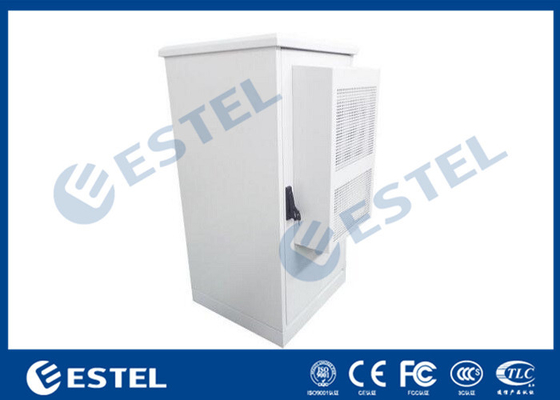

Our outdoor telecom cabinets are designed to protect your sensitive network equipment from harsh environments where equipment may be exposed to dust or water. For added protection, there is a water and dust proof polyurethane door joint strip. The cooling options can be fan units, heat exchanger, AC/DC air conditioners that provided to cool down your IT equipments that installed inside the cabinets.
2. Features
· Cabinet external temperature:-40-+55 degree
· Environmental temperature:-50-+70 degree
· Equipments working temperature:-50-+70 degree
· Environmental humidity:5% ~ 100%
· Atmospheric presure:62kpa ~ 101kpa
· Protection Level:at least IP55
· Material:Galvanized Steel
· Color:Gray RAL7035
3. Technical Parameters
Item | Type | Technical Parameter |
Structure | Dimension | External Dimension: W×D×H 850×850×1750mm (32U) |
Layout | 1 compartment | |
Equipment Installation Method | 19” rail | |
Door | With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) | |
Material | Steel | |
Ingress Protection | IP55 | |
Temperature Control | Cooling | air conditioner and fans |
Lighting | LED lamp | 48VDC LED lamp |
Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
Storage Temperature: -50°C ~ + 70°C | ||
Transport Temperature: -50°C ~ +70°C | ||
Humidity | Relative Humidity | 5% ~ 100% |
Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
4. Accessories List
No. | Item | Quantity | Unit | Specs |
1 | Outdoor Telecom Cabinet | 1 | PC | External Dimension: W×D×H 850×850×1750mm (32U) |
2 | Air Conditioner | 1 | PC |
Cooling capacity: 1.5KW, Power supply: 48VDC. |
3 | Fan | 2 | PC | 48VDC |
4 | Environment Monitoring Unit | 1 | PC | 19”, 1U, support SNMP communication, 48VDC |
5 | Water Sensor | 1 | PC | |
6 | Smoke Sensor | 1 | PC | |
7 | Temperature and Humidity Sensor | 1 | PC | |
8 | Door Sensor | 1 | PC | |
9 | Shock Sensor | 1 | PC | |
10 | LED Lamp | 1 | PC | 48VDC |
11 | LED Lamp Switch | 1 | PC | For controlling LED lamp on/off |
12 | AC PDU | 1 | PC | 1U, 19“, 8 way, 10A/250VAC |
13 | Package | 1 | PC | Wooden Case |
5, Enclosure Cooling
Air Conditioner Cooling capacity: 1.5KW, Power supply: 48VDC.
Fan: 48VDC
6, Cabinet Structure
(1) External Dimension: 850×850×1750mm
(2) 1 compartment
(3) With one front door , and special lock for outdoor cabinet (support padlock) ;
(4) Material: High quality galvanized steel, with double walls, thickness of outer plate: 1.2mm, thickness of inner plate: 0.8mm.The insulation material is 20mm PEF

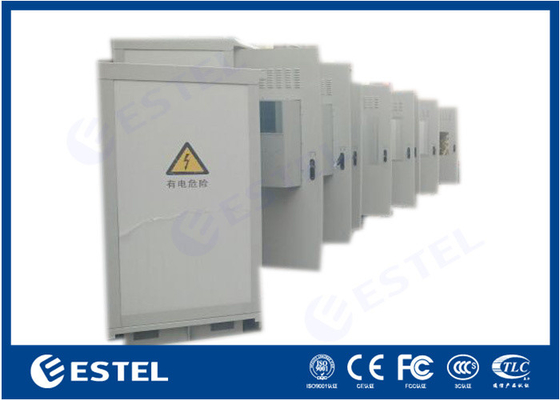

7.Cabinet
8. Factory Introduction
Factory Size: 3000 Square Meters
No. of Main Production Lines: 5
Contract Manufacturing: OEM Service Offered, Design Service Offered, Buyer Label Offered
Production Experience: 13 Year
