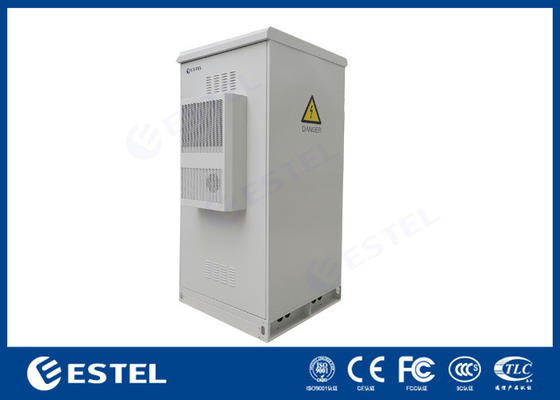

IP55 ODM Outdoor Telecom Enclosure 1.5mm Outer Plate 0.8mm Inner Plate

Large Image : IP55 ODM Outdoor Telecom Enclosure 1.5mm Outer Plate 0.8mm Inner Plate

Product Details:

Place of Origin:	China
Brand Name:	ESTEL
Certification:	ISO9001, CE, RoHs
Model Number:	ET7097168-5O

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Wooden case
Delivery Time:	3-4 weeks
Payment Terms:	L/C, Western Union, T/T
Supply Ability:	5000 pcs/month

Contact Now

Detailed Product Description

Dimension:	700×970×1681mm	Structure:	Welded
Ingress Protection:	IP55	Storage Temperature:	-40°C ~ + 70°C
Air Pressure:	62kPa ~ 102kPa	Door:	With One Front Door

1. Description Of Outdoor Electrical Cabinet

Electrical Enclosure is designed for Protection from voltage and moving parts for people who come in contact with the enclosure.Protection from water, including water sprayed from a nozzle onto the enclosure. Protection for the enclosed equipment from dust and other materials such as dirt, oils and non-corrosives. This enclosure is not air tight and therefore only allows dust size particles in non-harmful quantities to penetrate.

2. Selling points and Feature Of Outdoor Electrical Enclosure

Due to the ease of access to internal components and the plug-and-socket subassemblies in addition to the availability of self-diagnostic PCB, It is accredited for exceptionally low mean time to repair (MTTR).

Cabinets are floor mountable with bottom entry equipped for cable or conduit entrance. Input, output and remote alarm connections are wired to internal terminal lugs that are easily accessible. Top entry is available upon request.

3. Technical Parameters

Item	Type	Technical Parameter
Structure	Dimension	External Dimension (W×D×H): 700×970×1681mm
	Layout	1 compartment
	Equipment Installation Method	19″ Data Rack Rails
	Door	With one front door, and special lock for outdoor cabinet (support padlock)
	Material	High quality galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm.The insulation material is 20mm PEF
	Structure	Welded
	Ingress Protection	IP55
Temperature Control	Cooling	Air Conditioner and Heat Exchanger Integrated Unit
Temperature	Temperature	Working Temperature: 40°C ~ +70°C
		Storage Temperature: -40°C ~ + 70°C
		Transport Temperature: -50°C ~ +70°C
Humidity	Relative Humidity	≤95% (at + 40°C)
Pressure	Air Pressure	62kPa ~ 102kPa
Radiation Intensity	Solar Radiation Intensity	1120 × (1±5%)W/m2

4. Accessories List

No.	Item	Quantity	Unit	Specs
1	Outdoor Telecom Cabinet	1	Set	(1) External Dimension (W×D×H): 700×970×1681mm (2) 1 compartment (3) With one front door , and special lock for outdoor cabinet (support padlock) ; (4) Material: High quality galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm.The insulation material is 20mm PEF
2	AirConditioner and Heat Exchanger Integrated Unit	1	Set	Cooling capacity: 1500W/Heat Exchanger 80W/K
3	Environment Monitoring System	1	Set	LED 2pcs, Door detector 2pcs, Water Sensor
4	Packing	1	Set	Wooden case

5. Enclosure Cooling

Air Conditioner and Heat Exchanger Integrated Unit

6. Cabinet Structure

(1) External Dimension: 700×970×1681mm

(2) 1 compartment

(3) With one front door , and special lock for outdoor cabinet (support padlock) ;

(4) Material: High quality galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm.The insulation material is 20mm PEF

7. Cabinet Diagram:

IP55 ODM Outdoor Telecom Enclosure 1.5mm Outer Plate 0.8mm Inner Plate

8. Cabinet Package And Shipment

IP55 ODM Outdoor Telecom Enclosure 1.5mm Outer Plate 0.8mm Inner Plate

FAQ

Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
