Environment Monitoring System: | LED 2pcs, Door Detector 2pcs, Water Sensor | Air Conditioner And Heat Exchanger Integrated Unit: | Cooling Capacity: 1500W/Heat Exchanger 80W/K |
---|---|---|---|
Packing: | Wooden Case | Compartment: | One |

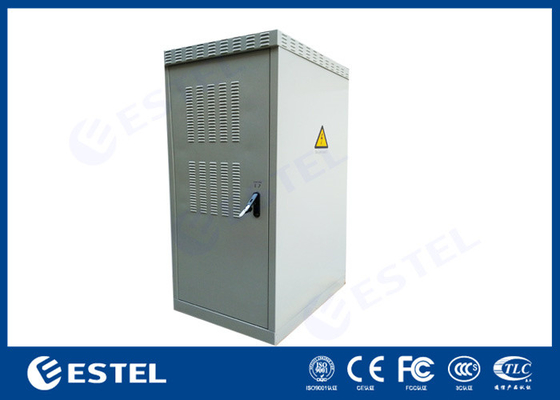

1, Description Of Outdoor Electrical Enclosure
Moreover, electrical enclosure is perfect for distribution of small UPS application, and switches. It also stores power distribution units and motor control centers as well. Estel will let you pick the most suitable modular electrical enclosure according to your needs.
2, Selling points and Feature Of Outdoor Electrical Enclosure
All components are front accessible; no side or back clearance is required. Internal components and connections are easily accessible and/or removable through the front door.
Most power and control modules are provided in sub-assembled chassis with plug and socket connection for easy serviceability and minimized spare part inventory.
3, Technical Parameters
Item | Type | Technical Parameter |
Structure | Dimension | External Dimension (W×D×H): 700×970×1681mm |
Layout | 1 compartment | |
Equipment Installation Method | 19″ Data Rack Rails | |
Door | With one front door, and special lock for outdoor cabinet (support padlock) | |
Material | High quality galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm.The insulation material is 40mm PEF | |
Structure | Welded | |
Ingress Protection | IP55 | |
Temperature Control | Cooling | TEC air conditioner and DC48V fans |
Temperature | Temperature | Working Temperature: 40°C ~ +70°C |
Storage Temperature: -40°C ~ + 70°C | ||
Transport Temperature: -50°C ~ +70°C | ||
Humidity | Relative Humidity | ≤95% (at + 40°C) |
Pressure | Air Pressure | 62kPa ~ 102kPa |
Radiation Intensity |
Solar Radiation Intensity |
1120 × (1±5%)W/m2 |
4, Accessories List
No. | Item | Quantity | Unit | Specs |
1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension (W×D×H): 700×970×1681mm (2) 1 compartment (3) With one front door , and special lock for outdoor cabinet (support padlock) ; (4) Material: High quality galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm.The insulation material is 40mm PEF |
2 | AirConditioner and Heat Exchanger Integrated Unit | 1 | Set | Cooling capacity: 1500W/Heat Exchanger 80W/K |
3 | Environment Monitoring System | 1 | Set | LED 2pcs, Door detector 2pcs, Water Sensor |
4 | Packing | 1 | Set | Wooden case |
5, Enclosure Cooling
Air Conditioner and Heat Exchanger Integrated Unit

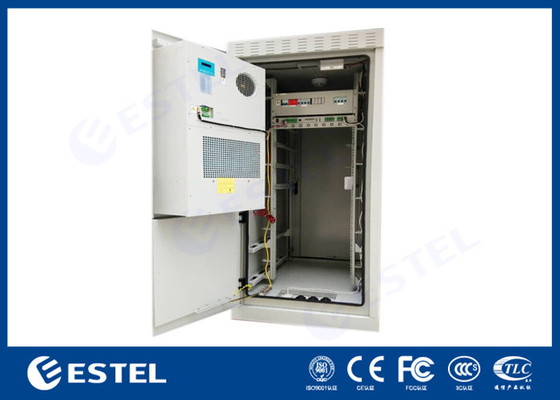

6, Cabinet Structure
(1) External Dimension: 700×970×1681mm
(2) 1 compartment
(3) With one front door , and special lock for outdoor cabinet (support padlock) ;
(4) Material: High quality galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm.The insulation material is 40mm PEF
7, Cabinet Diagram:

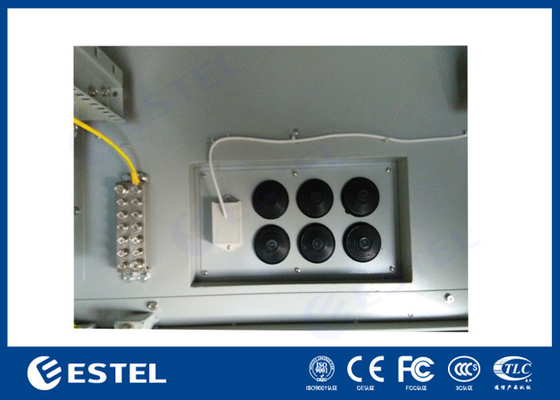

8, Cable Inlet
All feeder cable and other external cables all use bottom wiring method.
There are eight cable inlets at the bottom of the cabinet.
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
