Environment Monitoring System: | LED 1pcs, Door Detector 1pcs, Water Sensor 1pcs | Air Conditioner: | 1500W |
---|---|---|---|
Heat Exchanger: | 80W/K | Packing: | Wooden Case |
1, Description Of Outdoor Electrical Enclosure
Estel Manufactures the protection class of Ingress Protection code 55 system for measuring enclosures capabilities. We carry IP55 enclosures that demonstrate almost complete protection from particles and a good level of protection against water, All of our enclosures rigidly adhere to the guidelines, so you can count on outstanding and cost-effective enclosures. Estel cabinets can also be configured to meet specific requirements with a range of options also available including cable managment, thermal management, environmental protection and integration.
2, Selling points and Feature Of Outdoor Electrical Enclosure
-- temperature control, energy conservation and emission reduction
Fine sub-class temperature control save energy maximumly; cabinet with insulated sandwich panels weaken the impact of solar radiation on the cabinet temperature
-- Flexible housing and strong adaptability
Support the installation of main equipment, transmission equipment, power supply, battery and other equipment from different manufacturers and different installation methods.
3, Technical Parameters
Item | Type | Technical Parameter |
Structure | Dimension | External Dimension (W×D×H): 700×1000×1700mm |
Layout | 1 compartment | |
Equipment Installation Method | 19″ Data Rack Rails | |
Door | With one front door, and special lock for outdoor cabinet (support padlock) | |
Material | High quality galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm.The insulation material is 20mm PEF | |
Structure | Welded | |
Ingress Protection | IP55 | |
Temperature Control | Cooling | TEC air conditioner and DC48V fans |
Temperature | Temperature | Working Temperature: 40°C ~ +70°C |
Storage Temperature: -40°C ~ + 70°C | ||
Transport Temperature: -50°C ~ +70°C | ||
Humidity | Relative Humidity | ≤95% (at + 40°C) |
Pressure | Air Pressure | 62kPa ~ 102kPa |
Radiation Intensity |
Solar Radiation Intensity |
1120 × (1±5%)W/m2 |
4, Accessories List
No. | Item | Quantity | Unit | Specs |
1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension (W×D×H): 700×1000×1700mm (2) 1 compartment (3) With one front door , and special lock for outdoor cabinet (support padlock) ; (4) Material: High quality galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm.The insulation material is 20mm PEF |
2 | Air Conditioner and Heat Exchanger Integrated Unit | 1 | Set | Cooling capacity: 1500W/ Heat Exchanger 80W/K |
3 | Environment Monitoring System | 1 | Set | LED 1pcs, Door detector 1pcs, Water Sensor 1pcs |
4 | Packing | 1 | Set | Wooden case |
5, Enclosure Cooling
1500W/Heat Air Conditioner and 80W/K Heat Exchanger Integrated Unit
6, Cabinet Structure
(1) External Dimension: 700×1000×1700mm
(2) 1 compartment
(3) With one front door , and special lock for outdoor cabinet (support padlock) ;
(4) Material: High quality galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm.The insulation material is 20mm PEF

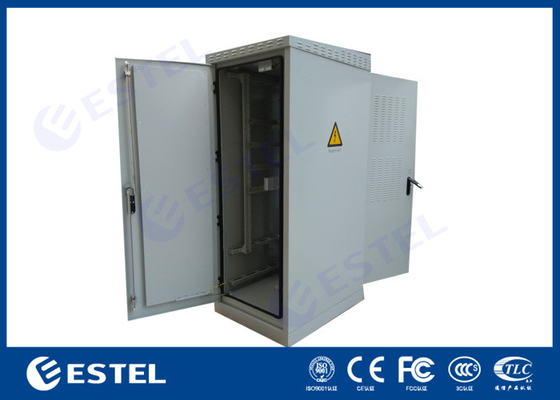

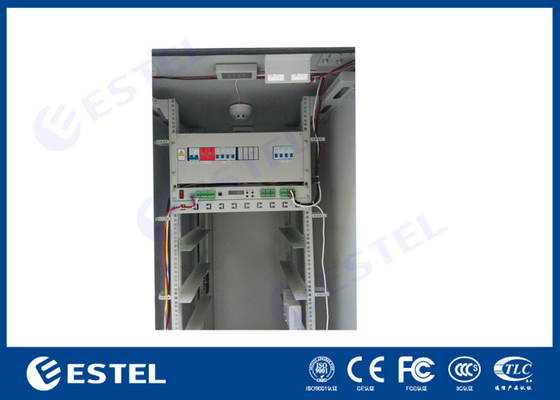

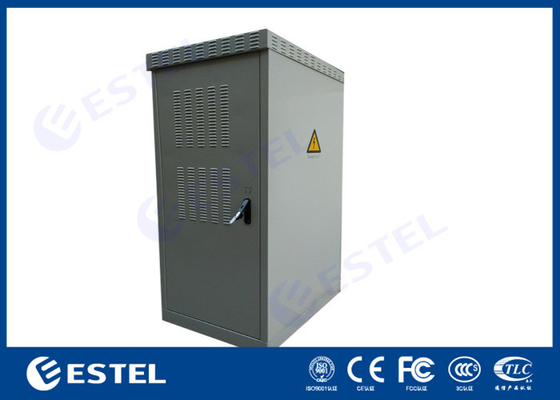

7, Cabinet Picture:
8, Air conditioner
The air conditioner uses utility power input, allowing wide voltage range (+30%), with high energy efficiency ratio. The air conditioner controller is digital display temperature controller, with easy operation and straight display. The controller has 6 relay outputs, which respectively control internal circulation fans, external circulation fans, cooling compressor, heater, hydrogen exhaust fan and a reserve output way. The controller has fault detection and alarm function and can transmit fault alarm signals to monitoring center. The air conditioner integrated universal life of the air conditioner is 8 years.
