Door: | With One Front Door And One Rear Door | Lock: | Special Lock For Outdoor Cabinet |
---|---|---|---|
Padlock: | Support | Thickness Of Outer Plate: | 1.5mm |
1, Description Of Outdoor Cabinet
Telecom cabinets are the ideal way of storing and protecting equipment at remote sites. These outdoor telecom equipment cabinets come in different styles and sizes. In addition to protecting equipment, it is important to realize that your equipment could be dangerous to curious children or animals. Placing this gear in properly latched cabinets will help avoid dangers and could protect you from liability, should anything happen. so the general purpose for the cabinet: to protect valuable equipment from natural elements and vandalism.
2, Features Of Outdoor Cabinet
- IP rated protection
- steel doors with single or multi-point locking systems
- Range of cable management options and power supply accessories
- Designed for maximum thermal and space efficiency
3, Technical Parameters
Item | Type | Technical Parameter |
Structure | Dimension | External Dimension (W×D×H): 700×1000×1600mm |
Layout | 1 compartment | |
Equipment Installation Method | 19″ Data Rack Rails | |
Door | With one front door and one rear door, and special lock for outdoor cabinet (support padlock) | |
Material | High quality galvanized steel, with single walls, thickness of outer plate: 1.5mm, The insulation material is 10mm PEF | |
Structure | Welded | |
Ingress Protection | IP55 | |
Temperature Control | Cooling | 1200W Air conditioner |
Temperature | Temperature | Working Temperature: 40°C ~ +70°C |
Storage Temperature: -40°C ~ + 70°C | ||
Transport Temperature: -50°C ~ +70°C | ||
Humidity | Relative Humidity | ≤95% (at + 40°C) |
Pressure | Air Pressure | 62kPa ~ 102kPa |
Radiation Intensity |
Solar Radiation Intensity |
1120 × (1±5%)W/m2 |
4, Accessories List
No. | Item | Quantity | Unit | Specs |
1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension (W×D×H): 700×1000×1600mm (2) 1 compartment (3) With one front door and one rear door , and special lock for outdoor cabinet (support padlock) ; (4) Material: High quality galvanized steel, with single walls, thickness of outer plate: 1.5mm, The insulation material is 10mm PEF |
2 | Air Conditioner | 1 | Set | Cooling capacity: 1200W Air conditioner |
3 | Environment Monitoring System | 1 | Set | LED 2pcs, Door detector 2pcs, Water Sensor 2 pcs |
4 | Packing | 1 | Set | Wooden case |
5, Enclosure Cooling
1200W Air conditioner
6, Cabinet Structure
(1) External Dimension: 700×1000×1600mm
(2) 1 compartment
(3) With one front door and one rear door , and special lock for outdoor cabinet (support padlock) ;
(4) Material: High quality galvanized steel, with single walls, thickness of outer plate: 1.5mm, The insulation material is 10mm PEF

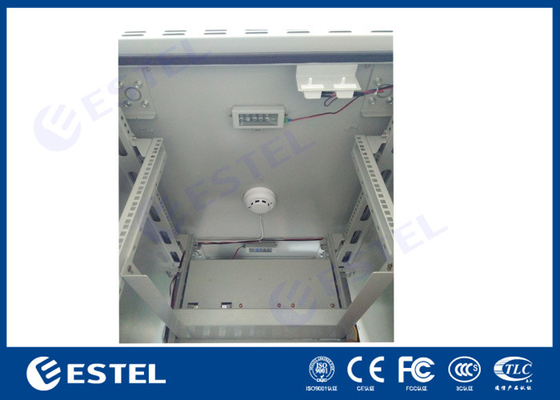

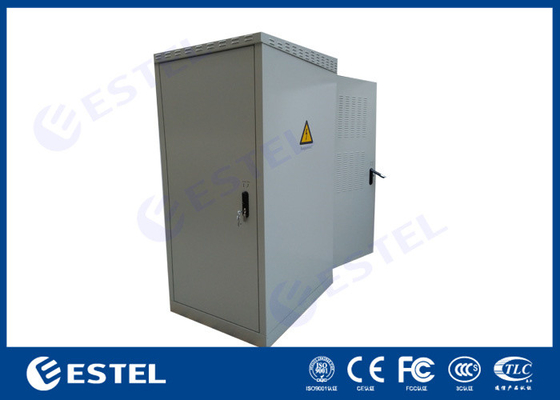

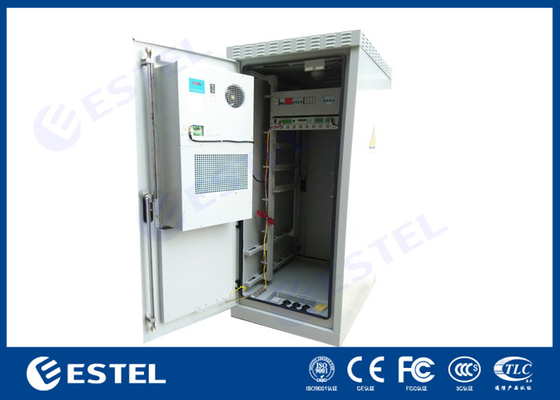

7, Cabinet Picture:
8, Air conditioner and heat exchanger integrated unit
■ Storage: can store 200 equipment working information and 2000 history record data;
■ Two way temperature and humidity collection channels: collecting temperature and humidity of thermostatic cabinet and base station;
■ Regular hydrogen exhaust ;
■ Heating output function;
■ Sensors, fans, compressor fault detection function;
■ Environment temperature and humidity, equipments fault alarm function.
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
