Product Details:
Payment & Shipping Terms:
|
HEIGHT: | 6U | WIDTH: | 19inch |
---|---|---|---|

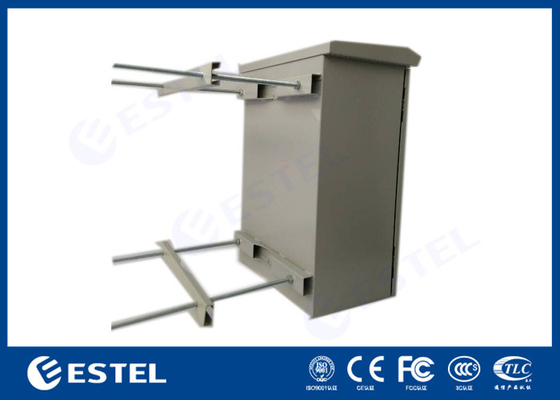

PROOF: | Rustproof | Mounted TYPE 1: | Wall Mounted |
1, Introduction
10 years of experience in the design and fabrication of electrical enclosures, Estel provide custom solutions at standard-model budgets. Our innovative electrical enclosure designs allow for efficient, cost-effective customization, ensuring that your enclosure meets your product and budget requirements. We are committed to meeting the fast turnarounds and cost-savings you need without sacrificing quality and the high performance you expect from an IP55 electrical enclosure.
2, Selling points and Feature Of Outdoor Equipment Cabinet
>>> IP55
>>> A different choice for the front door
>>> Available in different colours
>>> Available in different depths/widths as well as heights
>>> Grounding and earthing kits
>>> Includes -48VDC LED lamp for illumination.
>>> Dustproof, sunproof and rainproof, which is used in outdoor environment.
>>> Fan for cooling
>>> Anti-corrosion
3, Technical Parameters
Item | Type | Technical Parameter |
Structure | Dimension |
Cabinet External Size : 435mm×460mm×736mm (W×D×H), Cabinet Internal Size : 6U× 380×19” (W×D×H) |
Layout | One compartment | |
Equipment Installation Method | 19″ Data Rack Rails | |
Door |
Door with Embedded structure. 3 point locking system with key-lock swing handle. |
|
Material |
Hot dip galvanized steel,cabinet, with 20mm heat insulation between the two walls |
|
Structure | Double walls structure | |
Ingress Protection | IP55 | |
Temperature Control | Cooling | 4 fans |
Temperature | Temperature | Working Temperature: -40°C ~ + 60°C |
Storage Temperature: -50°C ~ + 70°C | ||
Transport Temperature: -50°C ~ +70°C | ||
Humidity | Relative Humidity | ≤95% (at + 40°C) |
Pressure | Air Pressure | 70kPa ~ 106kPa |
Cabinet load bearing |
≥600kg
|
4, Accessories List
No. | Item | Quantity | Unit | Specs |
1 | Outdoor Telecom Cabinet | 1 | Set |
Cabinet External Size : 435mm×460mm×736mm (W×D×H), Cabinet Internal Size : 6U× 380×19” (W×D×H) |
2 | Fan | 4 | Set | 4 set Fans |
3 | Package | 1 | Set | Wooden Case |
4 | TEC | 1 | Set | 100W |
5 | Door detector | 1 | Set | Door detector |
6 | LED LAMP | 1 | Set | DC48V LED LAMP |
5, Enclosure Cooling

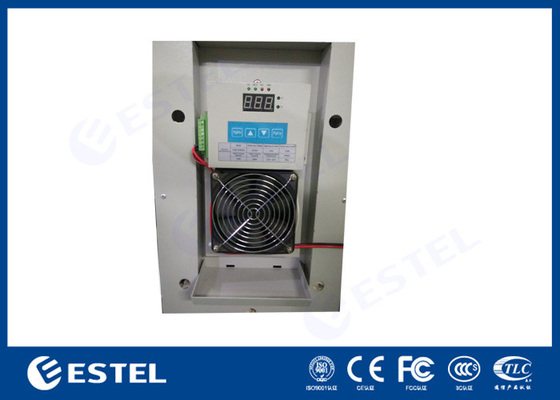

4 Pcs DC48V Fans and 1 set TEC
6, Cabinet Structure
(1) Cabinet External Size : 435mm×460mm×736mm (W×D×H),
Cabinet Internal Size : 6U× 380×19” (W×D×H)

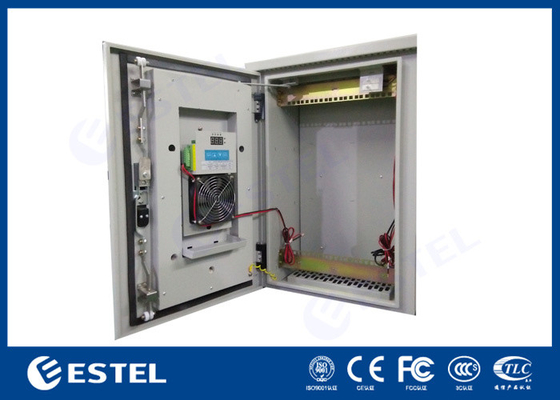

(2) One compartment; The cabinet door uses embedded structure. The door opening angle is larger than 110° and the door limit device can limit the opening angle. The lock is theftproof three point lock, supports padlock.
(3) The cabinet is a double-wall cabinet, with 20mm heat insulation between the two walls
8, Company Profile
Tianjin Estel Electronic Science and Technology Co., Ltd, located in China, is a
professional supplier of integrated outdoor telecom cabinet and temperature
control solutions for outdoor telecom base station. As a science and technology innovative company, we engage in the R&D, manufacture, and sales of telecommunication equipment. Estel has a well-established team of technical and management experts who can meet customers’specific needs accurately.
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
