Cabinet External Size: | 450mm×460mm×750mm (W×D×H) | Layout: | One Compartment |
---|---|---|---|
Construction: | Thick & Robust Construction | Lock: | 3 Points Lock |

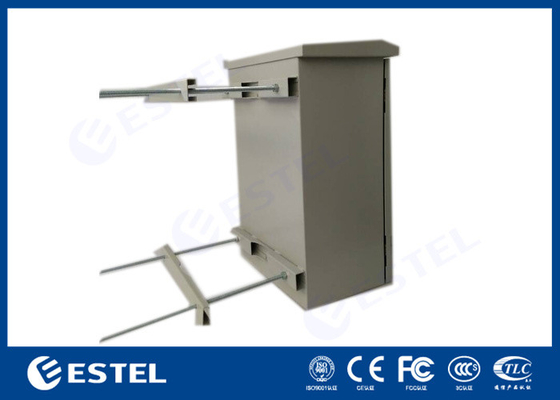

19 Inch IP55 Outdoor Equipment Cabinet Three Point Locking 450mm×460mm×750mm
1, Outdoor Equipment Cabinet Introduction
Protection for the enclosed equipment from dust and other materials such as dirt, oils and non-corrosives. This enclosure is not air tight and therefore only allows dust size particles in non-harmful quantities to penetrate.
Protection from voltage and moving parts for people who come in contact with the enclosure.
Protection from water, including water sprayed from a nozzle onto the enclosure.
2, Selling points and Feature Of Outdoor Equipment Cabinet
>>> Thick & robust construction
>>> In & out airflow system
>>> Optional air-con system
>>> Rotating front door
>>> 3 points lock
>>> All the cables, seal and insulation material used in the cabinet are made from flame retardant materials.
>>> Wind-proof, sand-proof, rain-proof, sun-proof and anti-theft, protection level IP55
3, Technical Parameters
Item | Type | Technical Parameter |
Structure | Dimension | Cabinet External Size : 450mm×460mm×750mm (W×D×H), |
Layout | One compartment | |
Equipment Installation Method | 19″ Data Rack Rails | |
Door |
The cabinet door uses embedded structure. The door includes a 3 point locking system with key-lock swing handle.The cabinet door uses embedded structure
|
|
Material | The cabinet is made of hot dip galvanized steel,cabinet, with 30mm heat insulation between the two walls | |
Structure | double walls structure | |
Ingress Protection | IP55 | |
Temperature Control | Cooling | 2 fans and air conditioner |
Temperature | Temperature | Working Temperature: -40°C ~ + 60°C |
Storage Temperature: -50°C ~ + 70°C | ||
Transport Temperature: -50°C ~ +70°C | ||
Humidity | Relative Humidity | ≤95% (at + 40°C) |
Pressure | Air Pressure | 70kPa ~ 106kPa |
Cabinet load bearing |
≥600kg
|
4, Accessories List
No. | Item | Quantity | Unit | Specs |
1 | Outdoor Telecom Cabinet | 1 | Set | Cabinet External Size :450mm×460mm×750mm |
2 | Fan | 4 | Set | 2 set Fans |
3 | Package | 1 | Set | Wooden Case |
4 | Air conditioner | 1 | Set | 300W |
5 | Door detector | 1 | Set |
|
6 | LED LAMP | 1 | Set | DC48V LED LAMP |

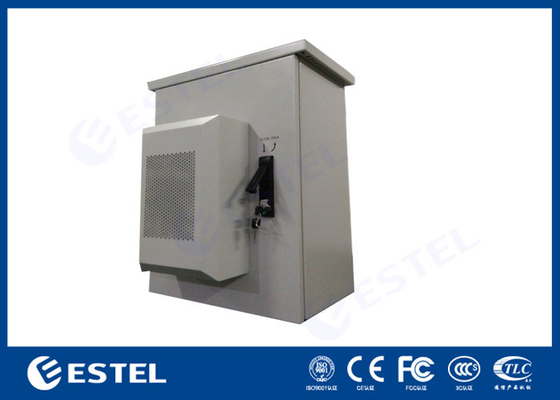

5, Enclosure Cooling
300W Air conditioner and 2 Pcs DC48V Fans

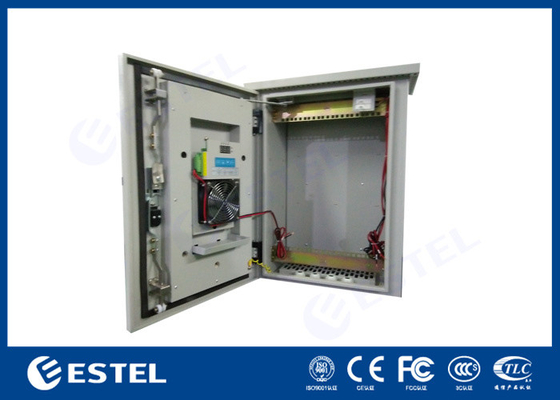

6, Cabinet Structure
(1) Cabinet External Size : 450mm×460mm×750mm (W×D×H)
(2) One compartment; The cabinet door uses embedded structure. . The lock is theftproof three point lock, supports padlock.
(3) The cabinet is a double-wall cabinet, with 30mm heat insulation between the two walls
8, Integrated solutions
The base station integrated solutions and products include outdoor integrated
telecom equipment cabinet, battery cabinet, RRU cabinet, power supply cabinet, environment monitoring system, TEC peltier air conditioner, AC220V compressor air conditioner, DC48V variable frequency air conditioner, heat exchanger, rectifier, UPS, embedded telecom power system etc. All the above solutions and products can be custom made.
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
